MAINTENANCE
CMPS 86290230 02/22/07
5. PUMP
4-4
ONLY QUALIFIED MAINTENANCE
PERSONNEL ARE TO PERFORM THE
FOLLOWING REPAIRS.
SOLUTION PUMP REPLACEMENT
1. Turn off all switches and unplug machine.
2. Tilt machine back so bottom is exposed.
3. Remove the 6 screws that fasten the frame
to the solution tank.
4. Remove the solution hoses from the fittings
on the pump.
5. Reverse process to install.
6. REGULATING UNLOADER
ONLY QUALIFIED MAINTENANCE
PERSONNEL ARE TO PERFORM THE
FOLLOWING REPAIRS.
UNLOADER REPLACEMENT
1. Turn off all switches and unplug machine.
2. Tilt machine back so bottom is exposed.
3. Remove the 6 screws that fasten the frame
to the solution tank.
4. Remove the solution hoses from the fittings
on the pump.
5. Remove the unloader.
6. Reverse process to install.

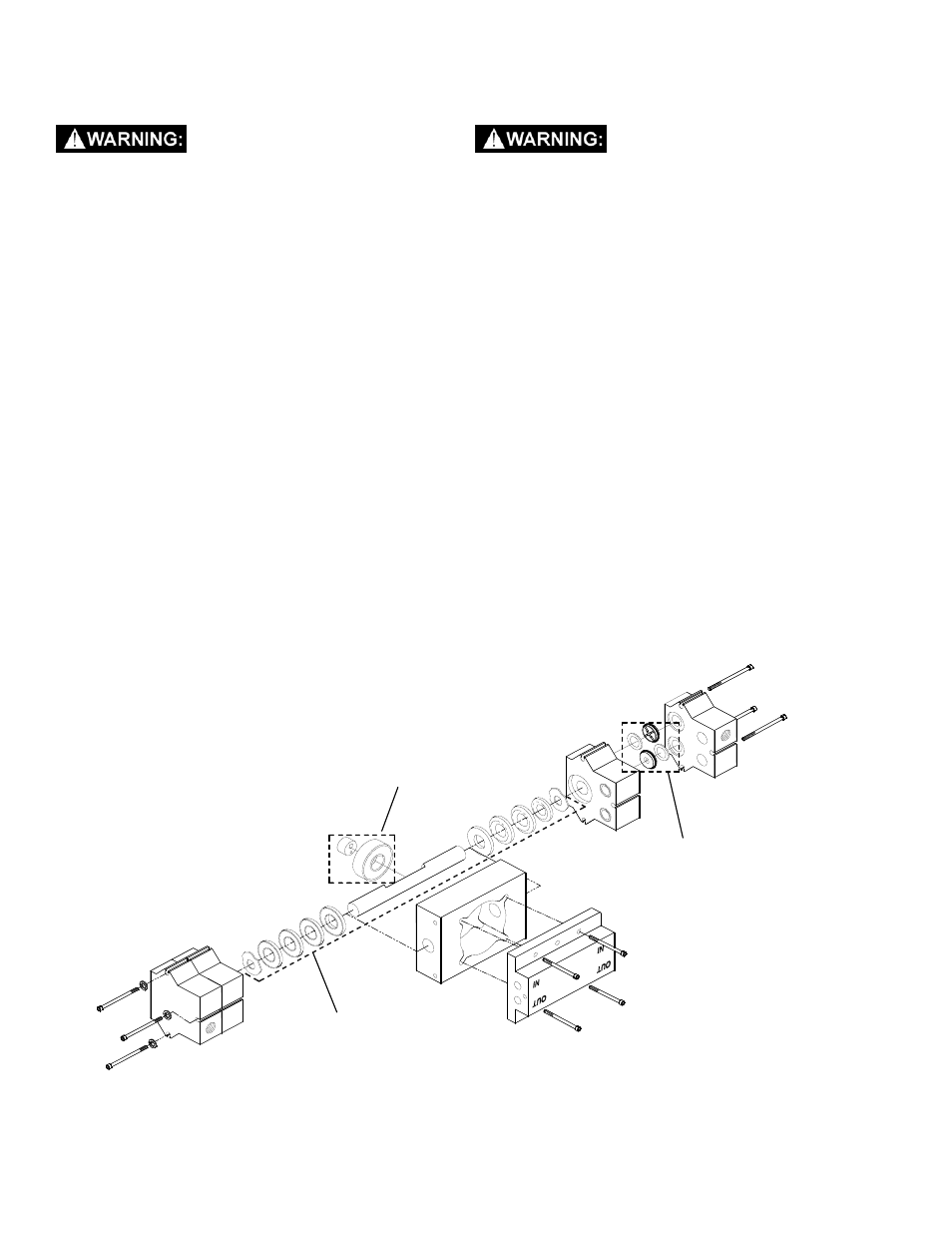

PUMP REPLACEMENT KITS
MOTOR ONLY 86290270
PUMP HEAD ONLY 86290280
CAM & BEARING KIT
86290330
VALVE & O-RINGS KIT
(BOTH SIDES)
86290340
PLUNGER & SEALS KIT
86290350
