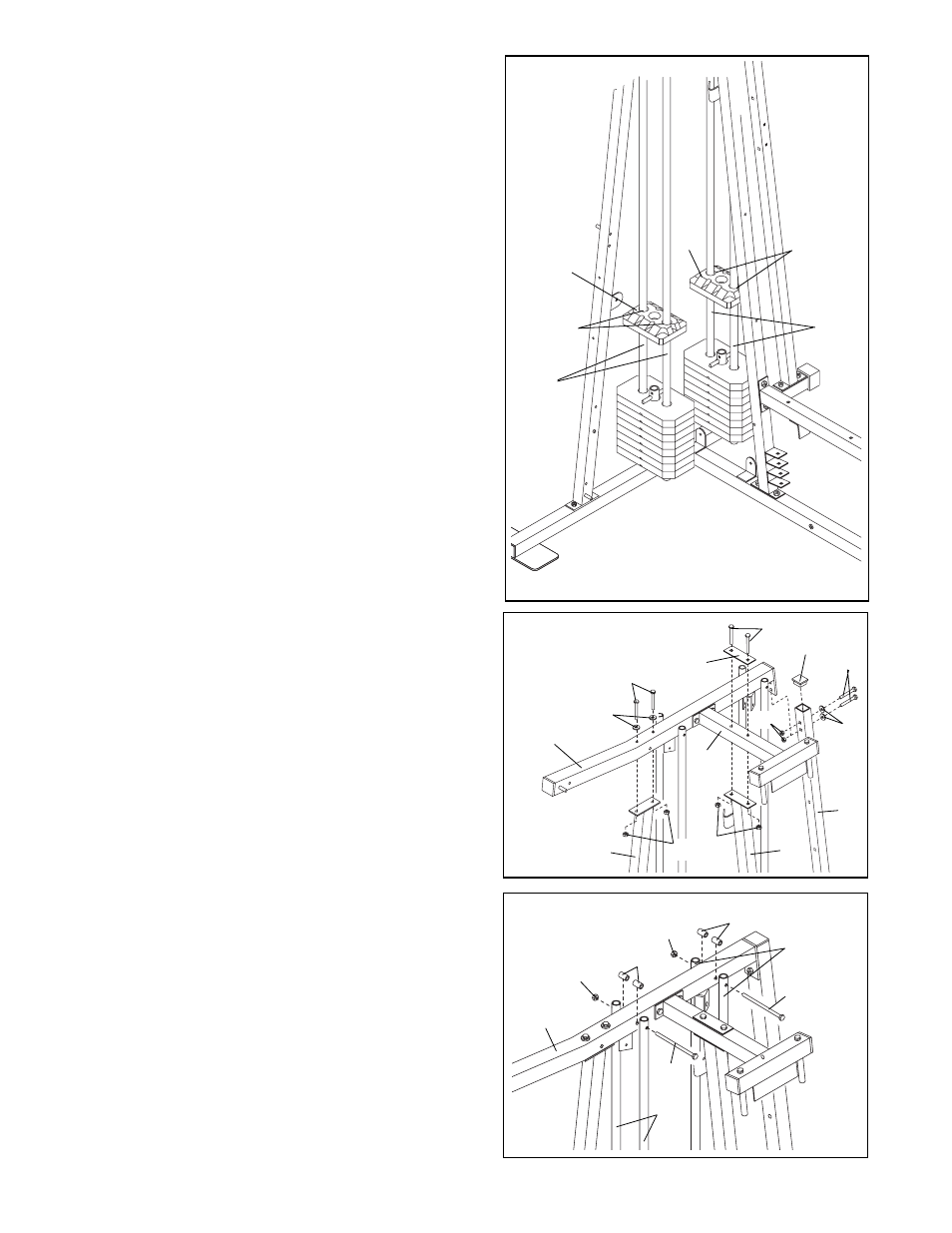

8. Attach the Top Frame (2) to the Lat Upright (1) with
two 5/16Ó x 2 3/4Ó Bolts (55), two 5/16Ó Washers (20)
and two 5/16Ó Nylon Locknuts (40). Do not tighten
the Nylon Locknuts yet.
Attach the Butterfly Frame (3) to the Leg Press
Upright (4) with two 5/16Ó x 2 3/4Ó Bolts (55), the
Support Plate (98) and two 5/16Ó Nylon Locknuts
(40). Do not tighten the Nylon Locknuts yet.
Press a 2Ó Square Inner Cap (56) into the top end of
the VKR Upright.
Attach the VKR Upright (51) to the bracket on the Top
Frame (2) with two 5/16Ó x 2 3/4Ó Bolts (55), two 5/16Ó
Washers (20) and two 5/16Ó Nylon Locknuts (40). Do
not tighten the Nylon Locknuts yet.
9. Attach the upper ends of one set of Weight Guides
(23) to the Top Frame (2) with a 5/16Ó x 6Ó Bolt (67),
two 1/2Ó x 3/4Ó Spacers (69) and a 5/16Ó Nylon
Locknut (40).
Attach the upper ends of the other set of Weight
Guides (23) in the same manner.
Before continuing, firmly tighten all nylon lock-
nuts used in steps 1 through 9.
7. Lubricate the insides of the holes in the Top Weights
(24) as shown. Slide a Top Weight onto each set of
Weight Guides (23).
7
9
8
23
Lubricate
Lubricate
23
23
69
40
67
67
40
2
69
24
24
23
8 55
55
98
20
40 40 4
3
2
1
51
40
20
55
56
