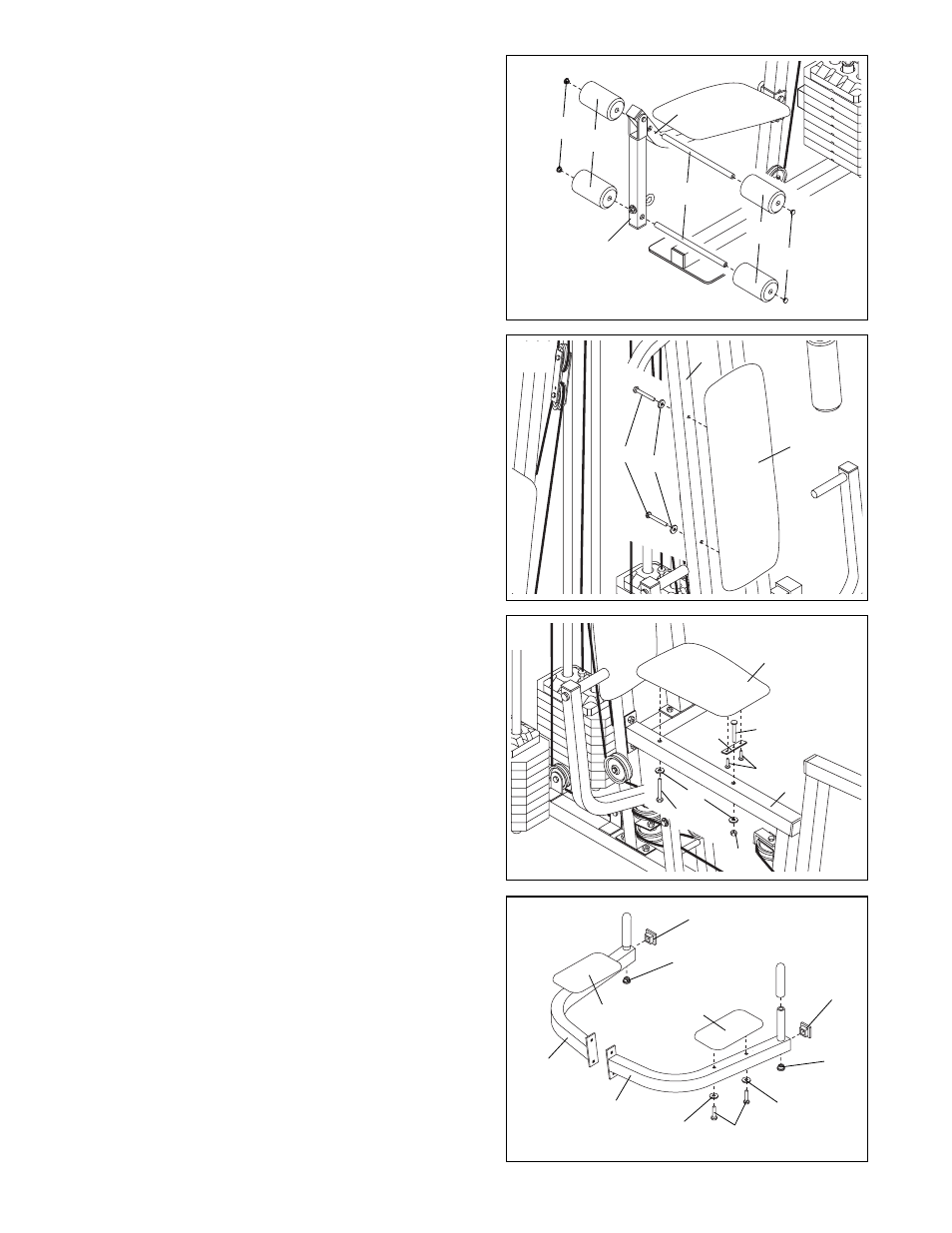

52. Press two 3/4Ó Round Inner Caps (78) into each Pad
Tube (28).
Insert a Pad Tube (28) into the Rear Seat Frame (16).
Slide a Foam Pad (29) onto each end of the Pad
Tube.
Insert the other Pad Tube (28) into the Leg Lever (15).
Slide a Foam Pad (29) onto each end of the Pad
Tube.
53. Attach a Large Backrest (19) to the Leg Press Upright
(4) with two 1/4Ó x 2 1/2Ó Machine Screws (64) and
two 1/4Ó Washers (37).
54. Insert a 1/4Ó x 2 1/2Ó Carriage Bolt (60) through the
center hole in a Seat Plate (41). Attach the Seat Plate
to the Seat (17) with two 1/4Ó x 1/2Ó Screws (59).
Insert the 1/4Ó x 2 1/2Ó Carriage Bolt (60) through the
indicated hole in the Front Seat Frame (8). Tighten a
1/4Ó Nylon Locknut (44) with a 1/4Ó Washer (37) onto
the Carriage Bolt.
Attach the other end of the Seat (17) to the Front Seat
Frame (8) with a 1/4Ó Washer (37) and a 1/4Ó x 2 1/2Ó
Machine Screw (64).
52
53
54
21
37
4
19
64
17
59
60
8
37
44
41
64
16
15
78
29
28
78
29
55. Press a 1Ó Round Inner Cap (70) into the holes in the
VKR arms located underneath the handles.
Press a 1 1/2Ó Square inner Cap (57) into the end of
each VKR Arm (18, 32). Attach a VKR Armrest (71) to
the Right VKR Arm (32) with two 1/4Ó x 2Ó Machine
Screws (63) and two 1/4Ó Flat Washers (37).
Attach a VKR Armrest (71) to the Left VKR Arm (18)
in the same manner.
55
57
70
70
63
37 32
37
18
71 71
57
