USING AN ALTERNATE MOUNT OR STAND
Cintiq can be attached to any mount arm or stand
conforming to the VESA 100 standard.
Mounting screws that are 4 mm wide with a 0.7 mm pitch
(M4 Regular), with a screw clearance depth from 13 – 18 mm
are required.
To attach Cintiq to a VESA 100 mounting platform:
1.
Turn off your computer and power off Cintiq.
Then disconnect all cables from between the unit and
your computer.
2.
Remove Cintiq from its stand and place it face down on
a flat, soft surface (such as a cloth spread across a
desktop).
3.
Remove the bearing hub by unscrewing the four bearing
hub attachment screws. Then carefully separate the
bearing halves and remove the bearing stopper to free
up the cabling. Take care not to lose the small bearing
stopper found within the inner groove of one of the hub
sections.

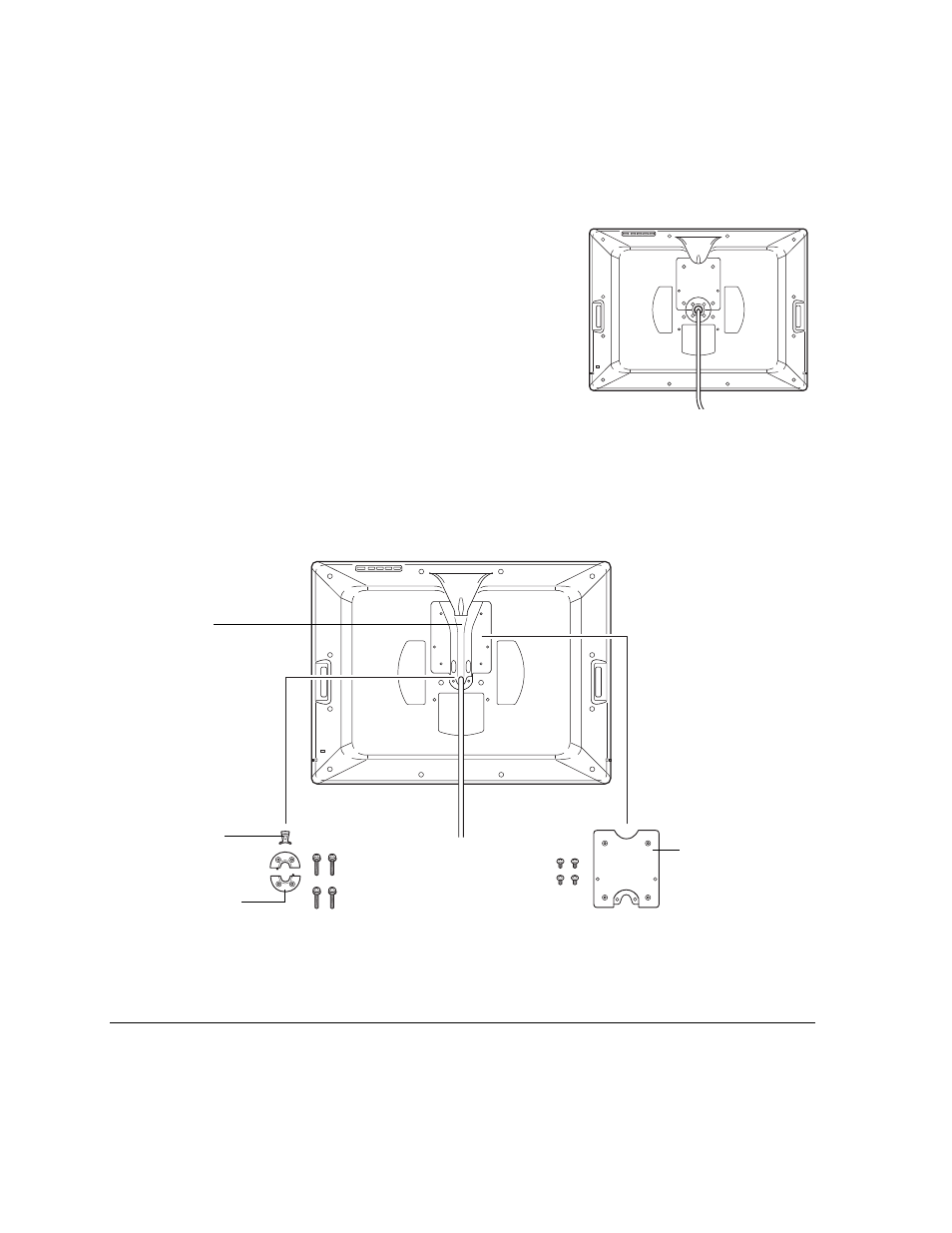

Cable channel
Cable cover plate
(removed) and
attachment screws
Bearing stopper
Bearing hub sections
(removed) and
attachment screws
