CGi-4E Gas-Fired Water Boiler — Boiler Manual
66
Part Number 550-110-711/1108
Dimensions
13a

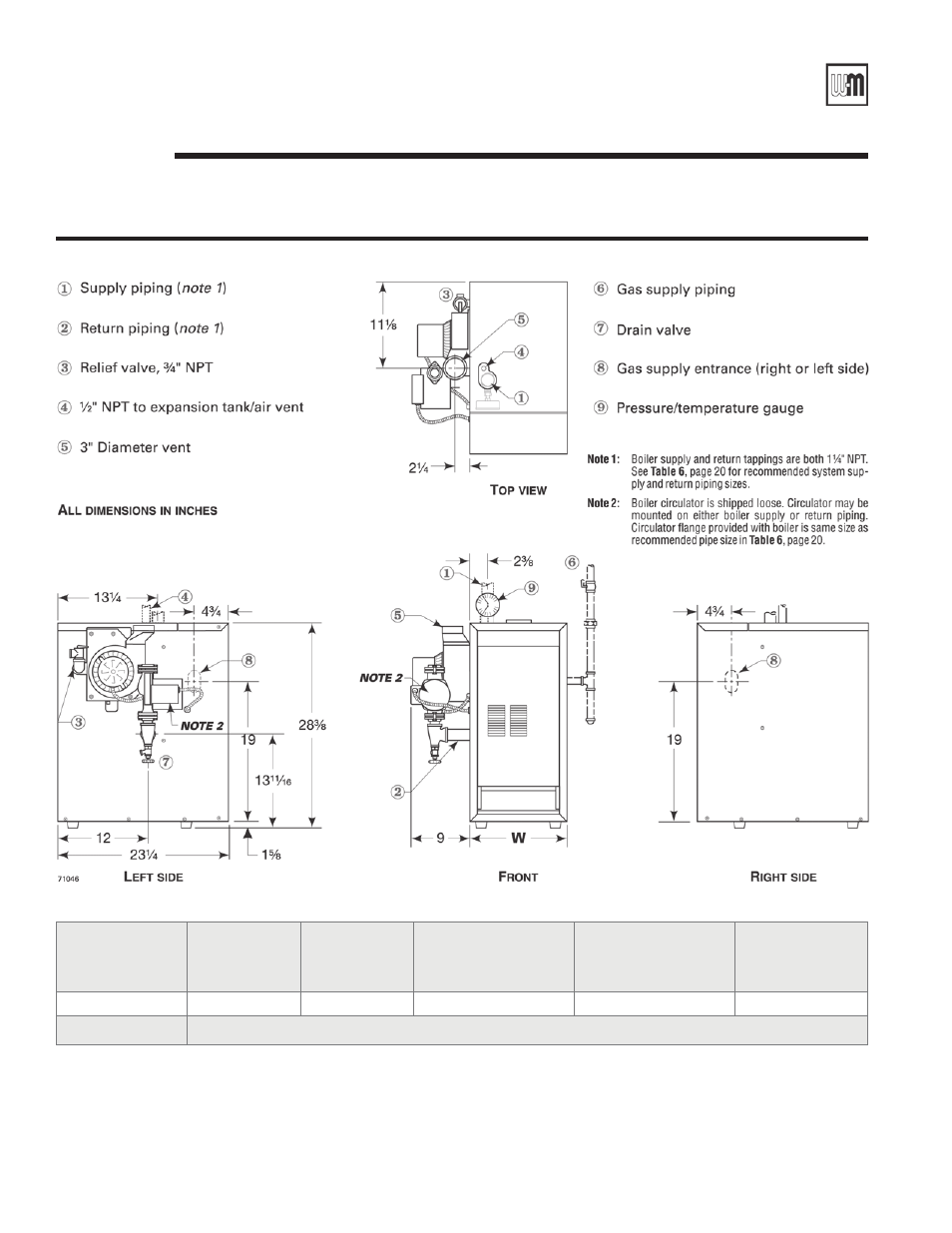

Figure 44 Dimensional drawing
Boiler
model
number
Supply
tapping
(inches NPT)
Return
tapping
(inches NPT)
Gas
connection size
Note 3
(inches NPT)
Gas
manifold size
Note 3
(inches NPT)
“W”
Jacket
width
(inches)
CGi-4E
1 ¼
1 ¼
½
½
13
Note 3:
Gas piping from meter to boiler to be sized per local utility requirements.
