Part Number 550-110-711/1108
59
GOLD CGi-4E Gas-Fired Water Boiler — Boiler Manual
Replacement parts — section assembly
12b

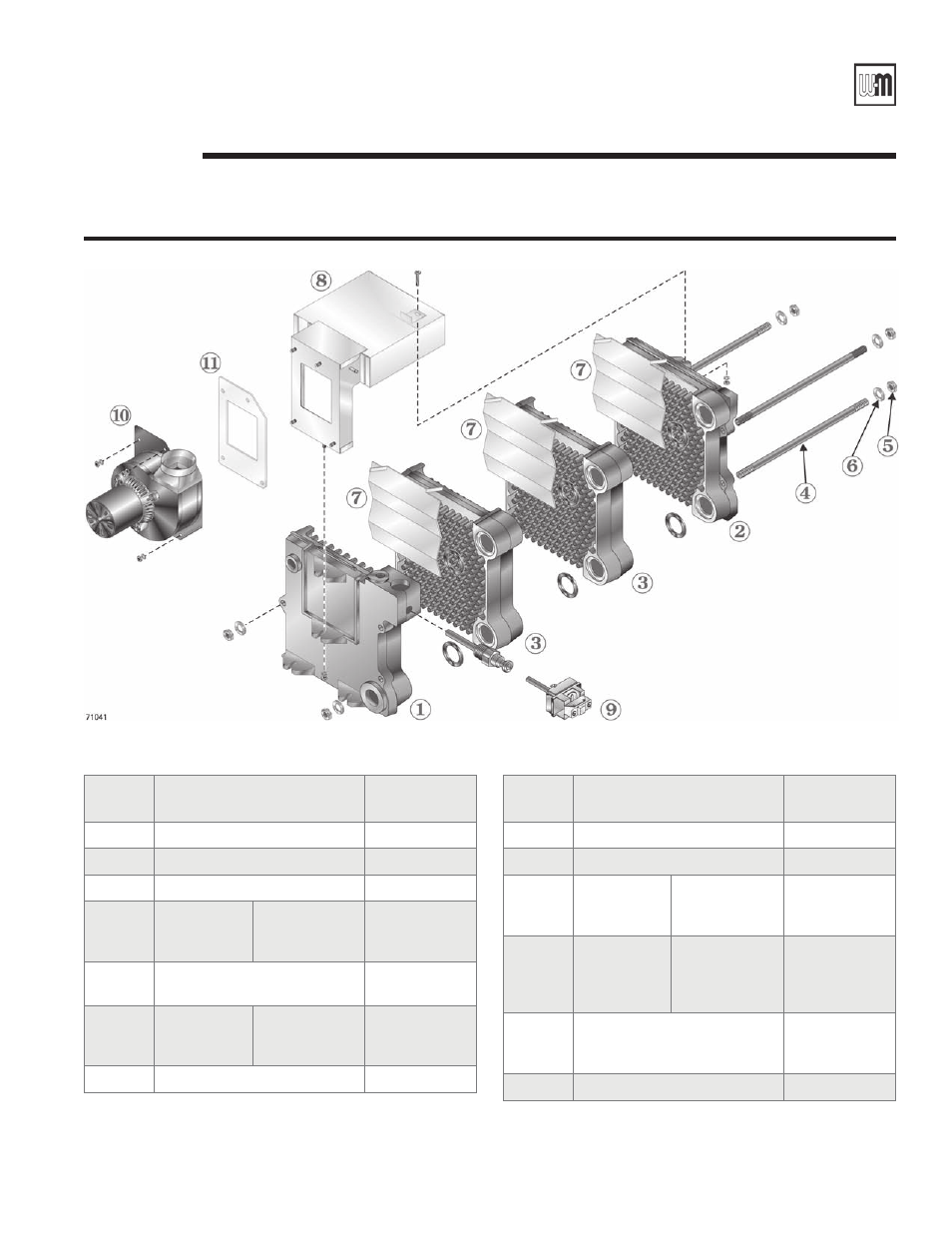

Figure 39 Section assembly
Item
number
Description Weil-McLain
part number
1 End section, left hand, 51124 311-103-850
2 End section, right hand 51128 311-103-821
3 Intermediate section, 51125 311-103-818
not
shown
Replacement
section
assembly CGi-4E 321-114-346
not
shown
Section replacement kit, includes
seals and sealant for 1 joint 381-354-527
4 Tie rod, M\zn”
without nut (3
per boiler): CGi-4E 560-234-501
5 Nut, M\zn” (2 per tie rod) 561-928-235
Item
number
Description Weil-McLain
part number
6 Washer, M\zn” (1 per tie rod) 562-248-684
7 Radiation plate (1 per joint) 460-003-700
8 Collector hood
and transition
assembly CGi-4E 381-354-596
9 High limit, 30°
differential,
with well Honeywell
L4080D1036
White-Rodgers
11B81-3 510-312-250
10 Inducer fan assembly kit, includes
inducer fan assembly, gasket and
nuts 381-356-499
11 Gasket, inducer 590-317-627
