Installation
Page 12
STEP1: LCD MONITOR INSTALLATION
In this step, the DTU-1931 is installed as a monitor on your system.
IMPORTANT: Do not connect the USB data cable until instructed to do so.
• Turn off your computer.
Caution: Never connect or disconnect the video or power cables while your computer or
DTU-1931 are powered on – this can damage the display or video card.
• If your computer has only one video connector, you will need to unplug your previous monitor or
add a second video card. Determine if your computer has an analog (VGA) or digital (DVI)
connector and set the DVI/VGA switch for the video connection you are using. See – A – in the
connection diagram on page 13.
• Making sure to tighten the thumbscrews on the connectors, follow the instructions below for
your video connector. See – B –
• Connect the power adapter to the DTU-1931. See – C – on the next page.
• Then connect the adapter’s power cable and plug the adapter into an AC outlet. See – D –
• Turn on the DTU-1931. The power LED will light orange.
For DVI operation, connect the DTU-1931 DVI to DVI video cable between the
DVI
IN connector located on the pen display unit and the DVI-D or DVI-I
connector on your video card.
For VGA operation, connect the DTU-1931analog RGB video cable between the
DVI
IN connector located on the pen display unit and the VGA connector on your
video card.
If connecting to an Apple ADC or mini-VGA connection, you will need to obtain
an appropriate adapter. Adapters can be purchased at various retail outlets.
For ADC operation, plug one end of the DTU-1931 DVI to DVI video cable into
the ADC to DVI adapter. Then connect the other end of the DTU-1931 cable to
the DVI
IN connector on the pen display unit. Next connect the ADC adapter end
to the ADC connector on your video card.
For an Apple mini-VGA connector, plug the VGA end of the DTU-1931 analog
RGB cable into the mini-VGA port adapter. Then connect the DVI end of the
DTU-1931 cable to the DVI
IN connector on the pen display unit. Next connect
the mini-VGA port end to the mini-VGA port on your video card.

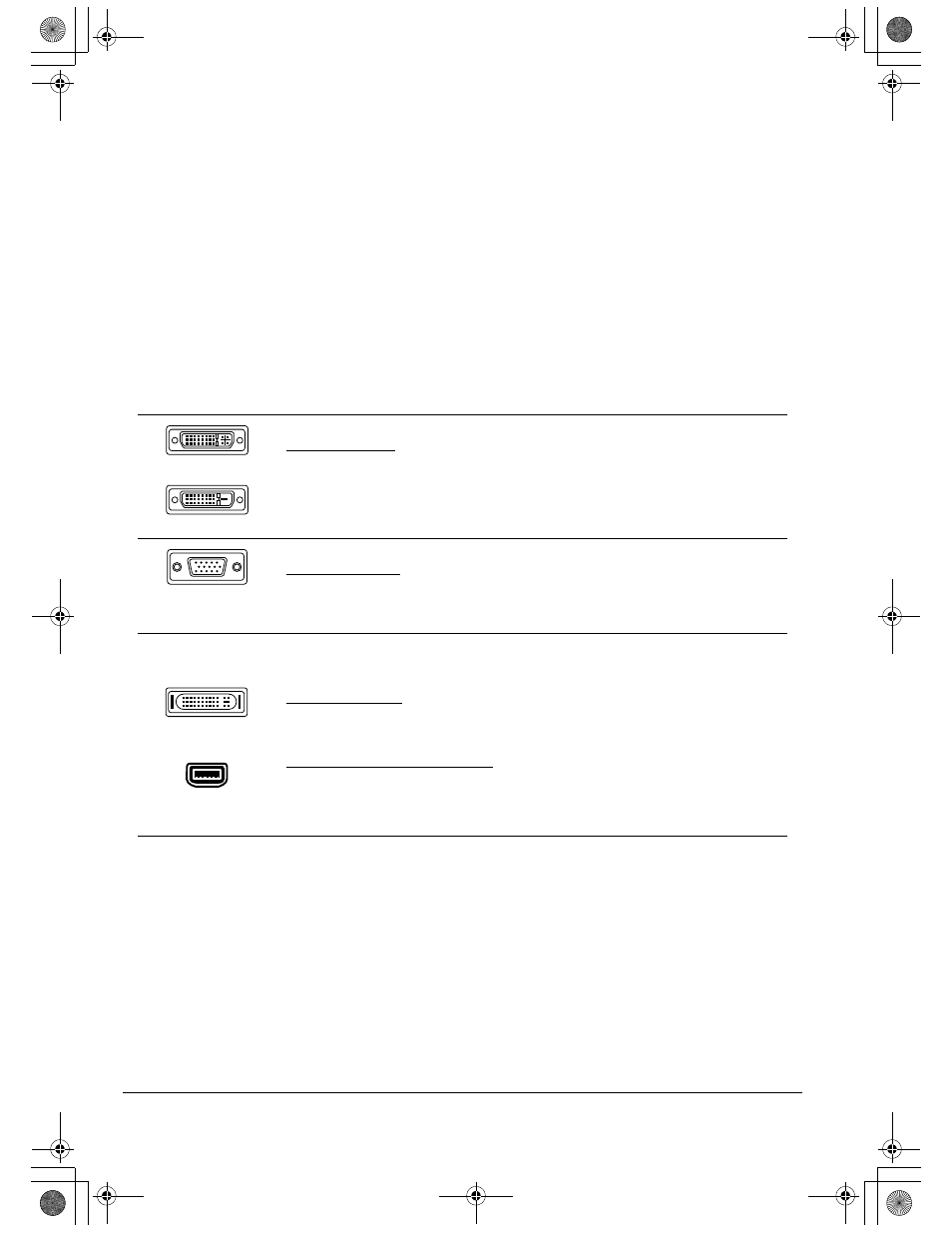

DVI-I connector
DVI-D connector
VGA connector
Apple ADC
connector
Mini-VGA port
