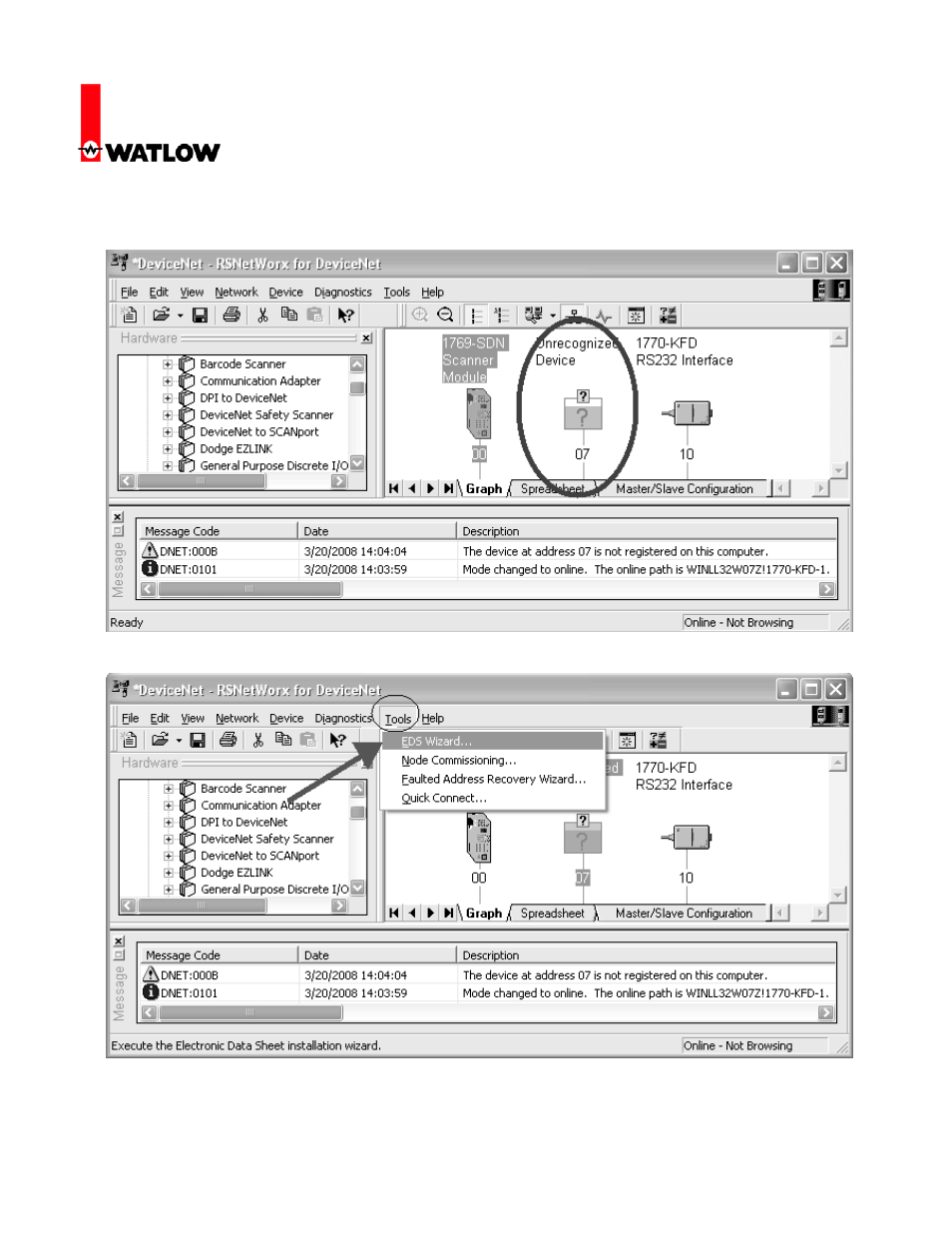

display as shown below. In this particular case, node 7 (RUI/Gateway) appears with a
question mark because it has not yet been registered on the network.
5.
To register any given node on the network click on Tools and then EDS Wizard.
