RUI/Gateway & DeviceNet

TM

Configuration & Ladder Logic Example

Using an Allen-Bradley CompactLogix PLC

Watlow
1241 Bundy Blvd
Winona, MN 55987
Telephone: 507-494-5656
© 2007 Watlow Electric Mfg Co 10

4/08






















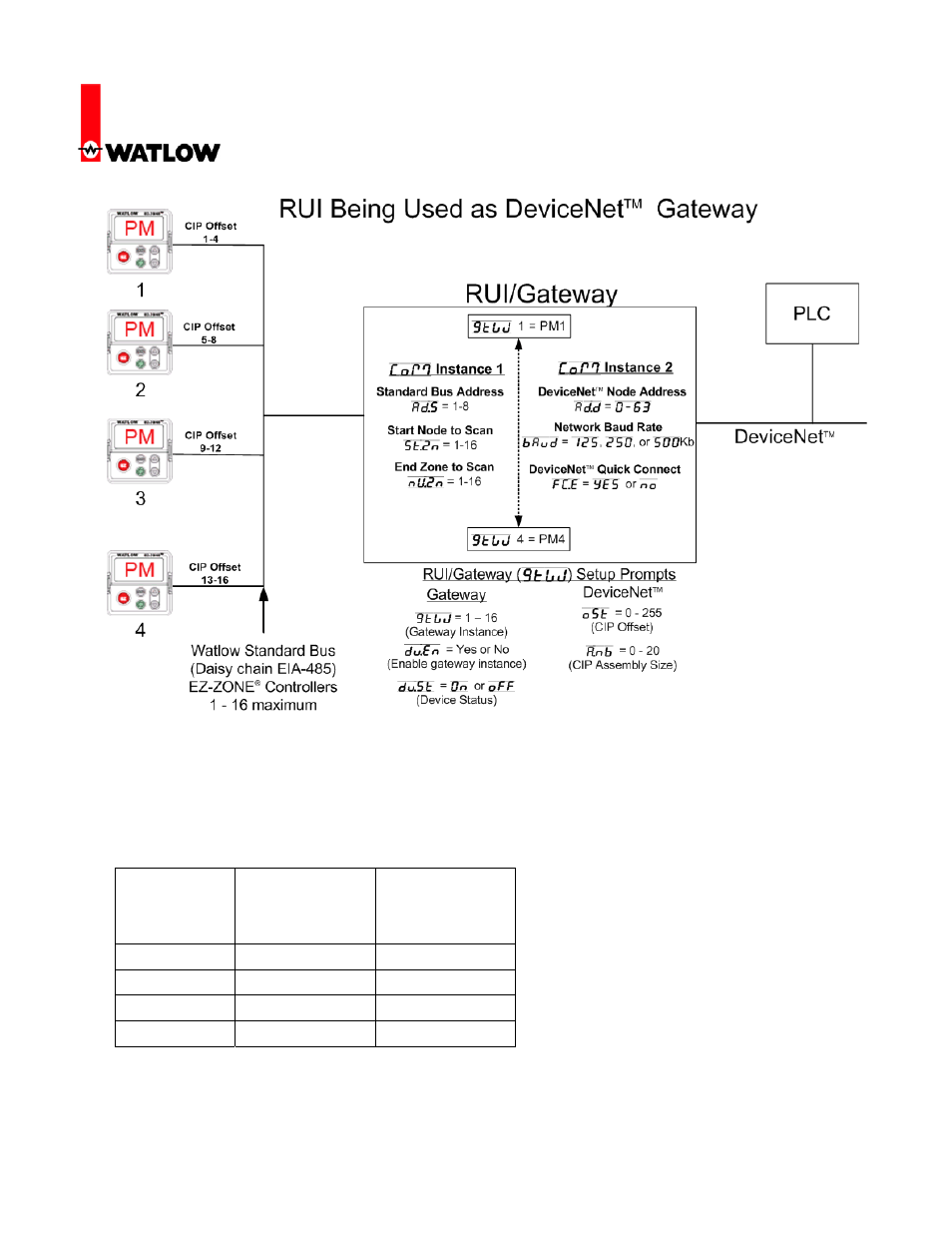

18. The table below does not represent all of the RUI/Gateway prompts that need configuration

but they do represent those that are pertinent to this discussion. (For further information on

the RUI/Gateway configuration go to the Watlow website and download the RUI/Gateway
User Manual)

Gateway

Instance

Enable

Gateway

Instance

CIP

Offset

Gtw = 1

Du;en = Yes

ost = 0

Gtw = 2

Du;en = Yes

ost = 4

Gtw = 3

Du;en = Yes

ost = 8

Gtw = 4

Du;en = Yes

ost = 12
