Titan TM Series
12
Connecting the Titan™ Active Series to your system is just as easy, with a couple more things to do. Plug
in the electrical cable and your audio cables and switch the unit on. Always be sure there is a good
electrical ground. The Titan™ Series rear panel has one combo XLR / TRS Jack input. Be sure to use high
quality shielded cable and high quality connectors. The volume control is conveniently located above
the input sensitivity switch (mic/line). Be sure you have that switch in the correct position.
The LOOP/MIX switch allows you to control the signal content going to the XLR OUTPUT jack. In the
“LOOP” mode, this switch routes the signal of INPUT B to the line level XLR OUTPUT jack, bypassing the
EQ section and volume control. When in the MIX mode, this switch routes the combined (or “mixed”)
signals of both INPUT A and INPUT B to the line level XLR OUTPUT jack. This signal can then be sent to
additional powered speakers or powered subwoofers.
Titan™ 8 / Titan™ 12 / Titan™ 15 ACTIVE
The Loop / Mix Switch - Titan™ 12A / 15A ONLY

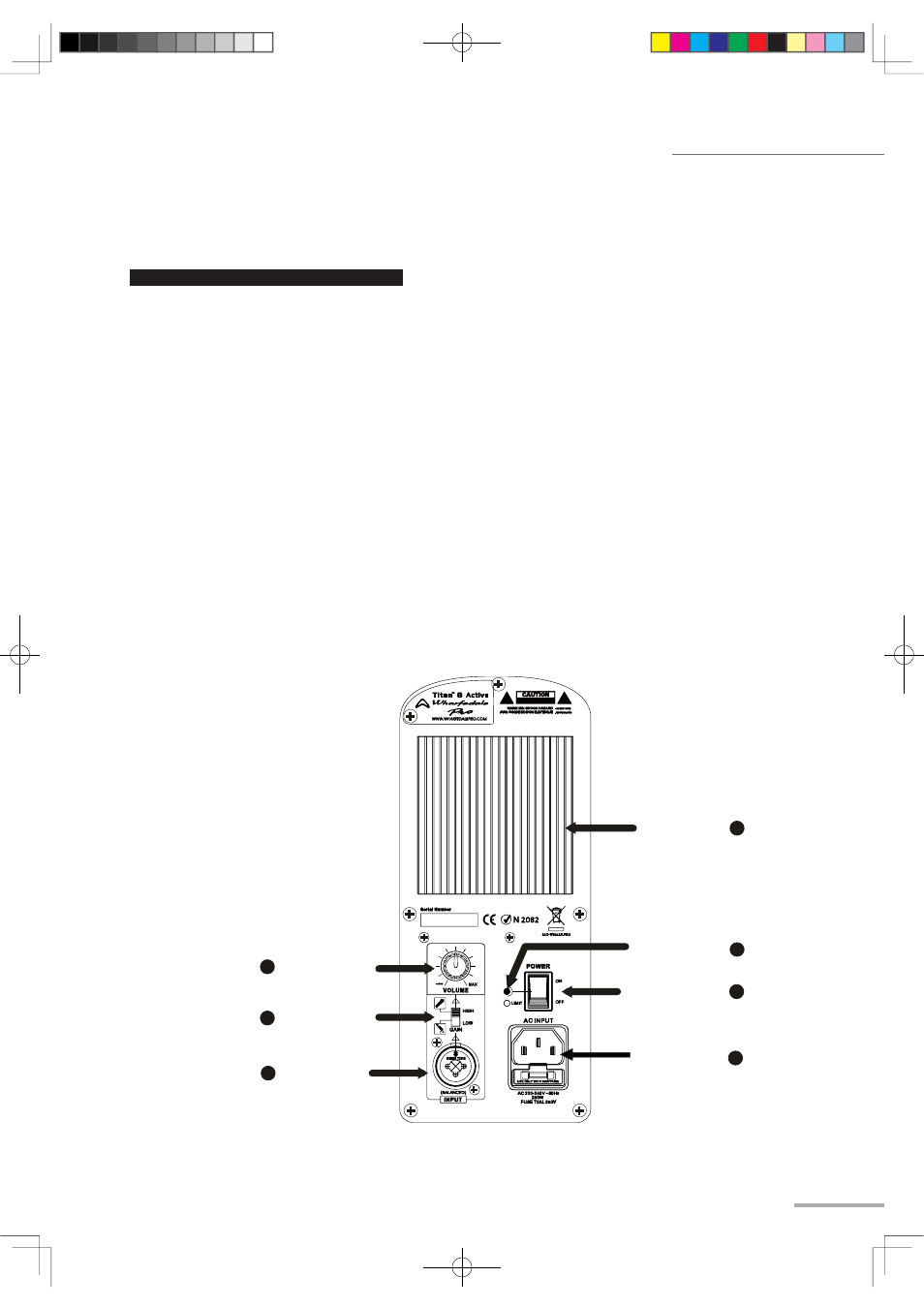

Titan™ 8 ACTIVE - REAR PANEL FEATURES
POWER ON
LED iQGicDWoU
DQG LIMIT LED
iQGicDWoU
VOLUME conWUoOs 4
MIC/ LINE swiWch
XLR oU 1/4”
combo jDcksIoU
INPUT
POWER ON/OFF
swiWch
POWER
cRQQHcWoU
HHDW Sink
8
10
1
3
5
11
