Titan™ 8/12/15 MONO SYSTEM
WITH TWO MONITORS

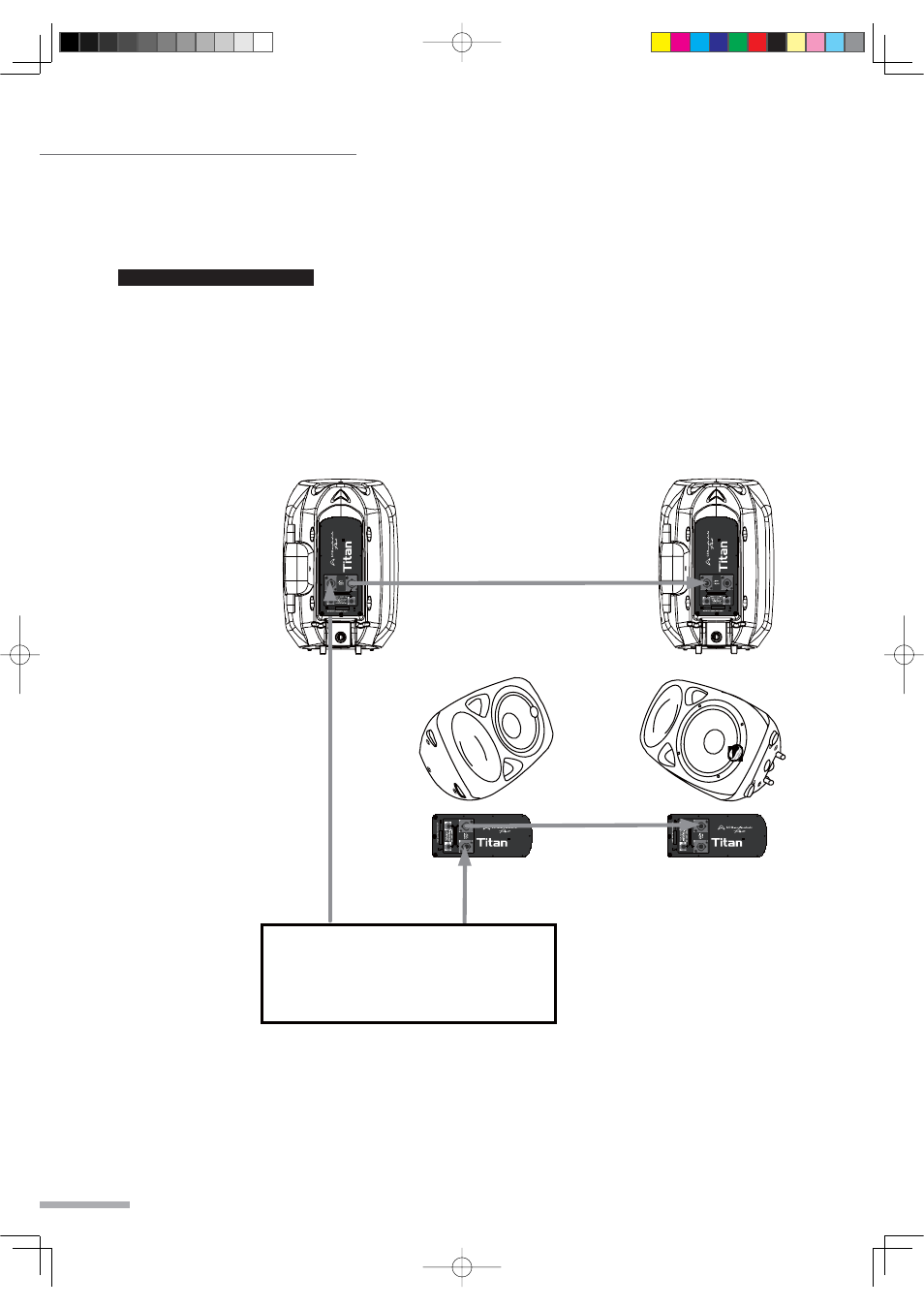

CONNECTION DIAGRAM # 2
STAGE MONITORS
MAIN SPEAKERS
4 OHM
LOAD
4 OHM
LOAD
Left Right
OUTPUT OF STEREO POWER
AMPLIFIER OR POWERED MIXER
CONNECTING MULTIPLE
Titan™ 8/12/15 SPEAKERS TOGETHER
IN A MONO-MAIN AND STAGE
MONITOR CONFIGURATION USING A
SINGLE, DUAL CHANNEL AMPLIFIER
NOTE 7KLVFRQ¿JXUDWLRQUHSUHVHQWVDRKPORDGWRHDFKRXWSXWFKDQQHORIWKHDPSOL¿HU
