Wolf ICBSRT304 - Manual (Page 9)

9
I N S TA L L AT I O N
I N S T R U C T I O N S
VENTILATION
HOOD
762 mm
OPENING WIDTH
762 mm min
TO 914 mm max
TO BOTTOM OF
VENTILATION HOOD
762 mm min
COUNTERTOP
TO COMBUSTIBLE
MATERIALS
19 mm
PLATFORM
TOP VIEW
OF PLATFORM
E G
406 mm
406 mm
102 mm
BACK
WALL
ISLAND INSTALLATIONS: 305 mm MINIMUM
CLEARANCE FROM BACK OF RANGETOP TO
COMBUSTIBLE REAR WALL ABOVE COUNTERTOP–
0 mm TO NON-COMBUSTIBLE MATERIALS
LOCATION OF GAS AND
ELECTRICAL SUPPLY CUT-OUT
WITHIN SHADED AREA
THROUGH BOTTOM OF
PLATFORM
914 mm
457 mm min
TO COUNTERTOP
19 mm
PLATFORM
216
mm
COOKING
SURFACE
191 mm
610 mm
330 mm
max
152 mm min
TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
759 mm
OVERALL WIDTH
616 mm
318
mm
WITH
127 mm
RISER
445
mm
WITH
254 mm
RISER
699
mm
WITH
508 mm
RISER
724 mm
OVERALL DEPTH
216 mm
OVERALL
HEIGHT
COOKING
SURFACE
191
mm
235
mm

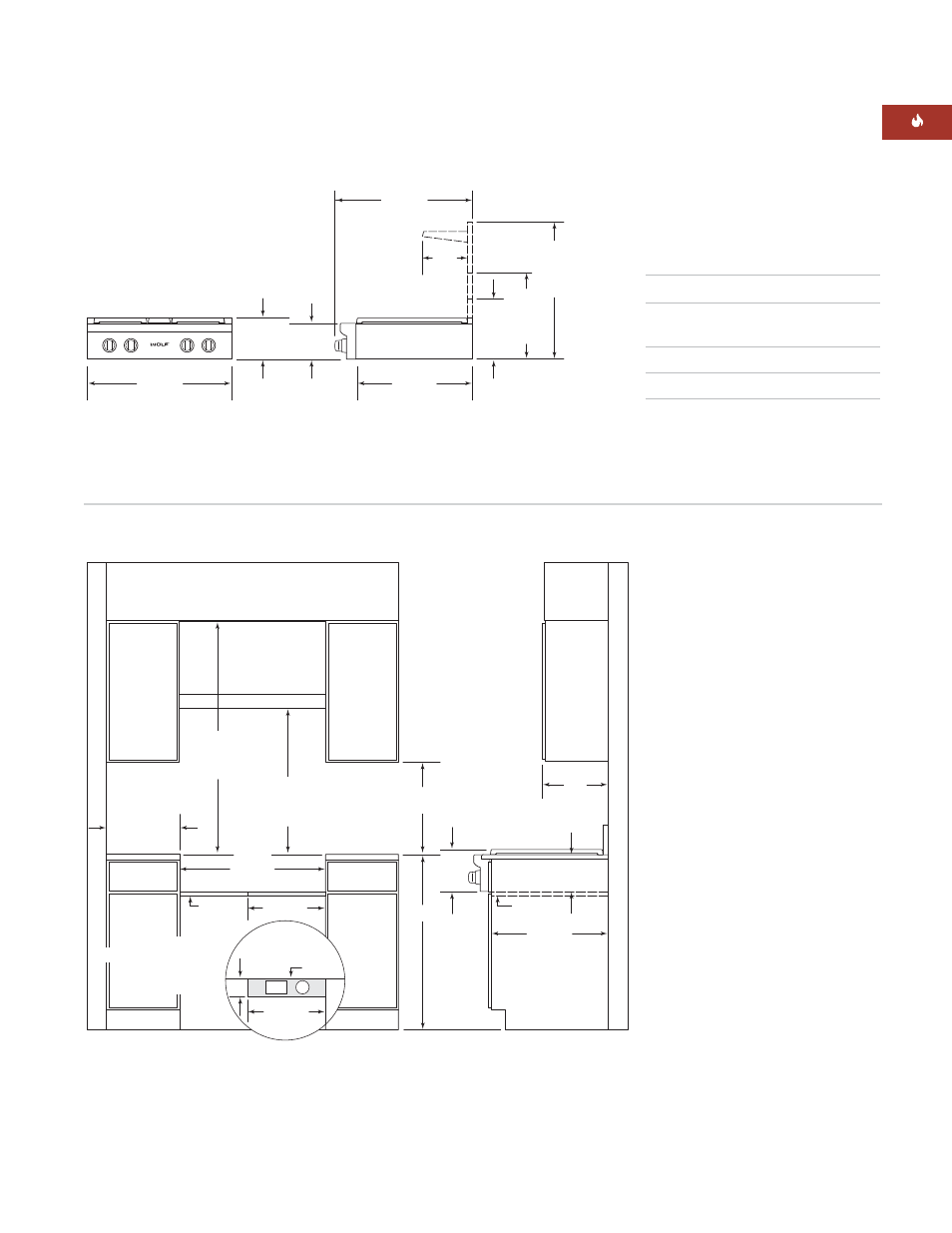

I N S T A L L A T I O N S P E C I F I C A T I O N S
O V E R A L L D I M E N S I O N S
Overall Width 759 mm
Overall Height
(to cooking surface)
216 mm
Overall Depth 724 mm
Opening Width 762 mm
Dimensions may vary to ± 3 mm.
7 6 2 m m
S E A L E D B U R N E R R A N G E T O P
