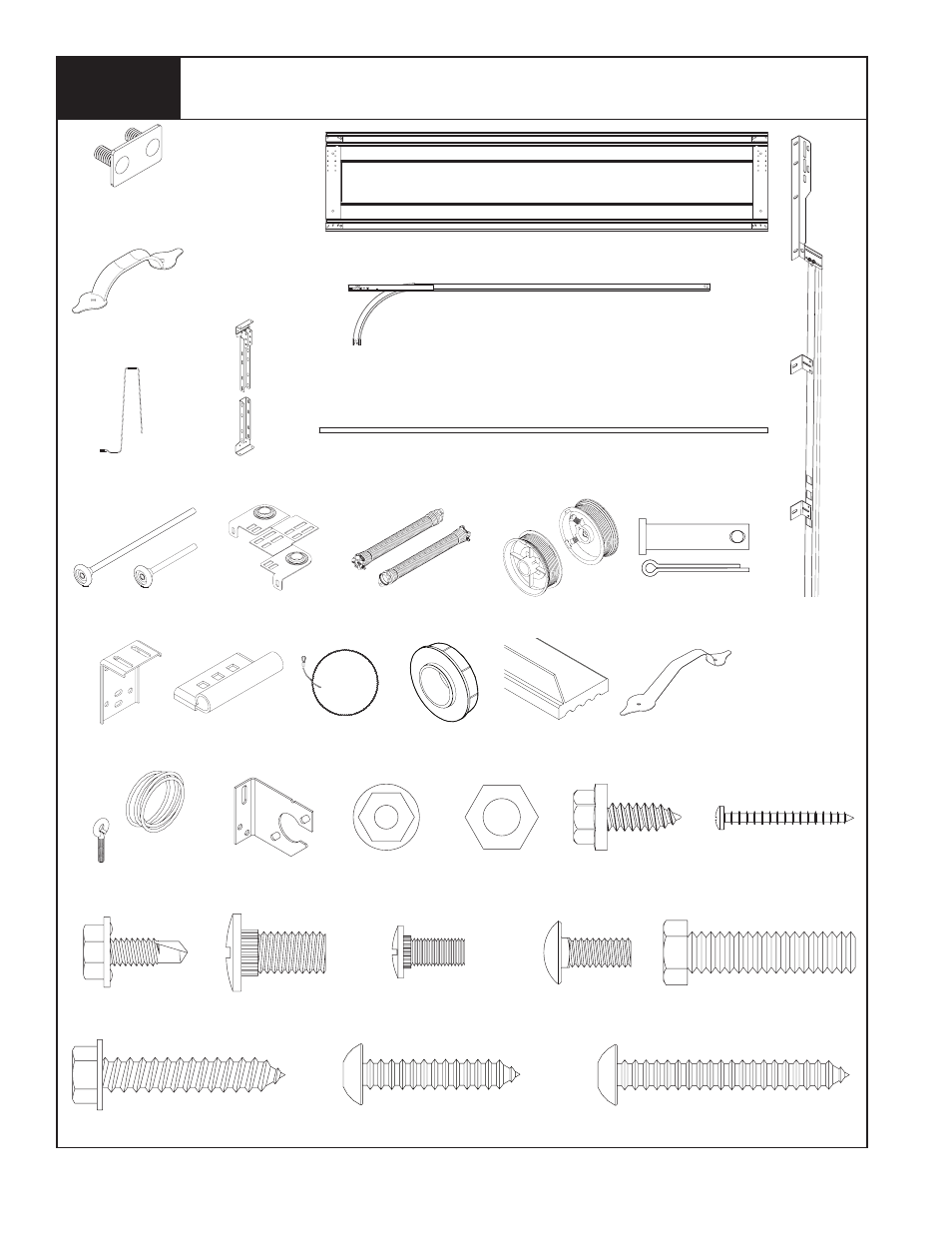

Package contents
NoTe: DEPENDING ON ThE DOOR MODEL, SOME PARTS LISTED WILL NOT bE SUPPLIED IF NOT
NECESSARY. REAR SUPPORTS MAY OR MAY NOT bE INCLUDED WITh YOUR DOOR.
5/16” X 1-5/8” hex head lag screws
(as required)
3/8”-16 X 3/4” Truss
head bolts (as required)
(2) horizontal Tracks with attached horizontal angle Rh/Lh
End bearing bracket
Right and left torsion
springs (as required)
(1) Torsion tube
Door sections (as required)
(1) Center bracket
1/4”-20 X 11/16” Self drilling
screws (as required)
1/4”-14 X 5/8” Self tapping
screw (as required)
(1) Center bracket
bushing
Top bracket slides
(as required)
Right and left
counterbalance cables
1/4”- 20 Flange hex nuts
(as required)
1/4” - 20 X 5/8”
Carriage bolts (as required)
Weather seal and nails
(If included)
5/16” X 2” Tamper-resistant hex head lag
screws (as required)
Top bracket bases
(as required)
3/8”- 16 hex nuts
(as required)
#6 Screw eye and pull rope
(If included)
3/8”-16 X 1-1/2” hex head bolts
(as required)
(1) Operator
bracket
Asymmetrical u-bar
(as required)
Long and short stem rollers
(as required)
Right and left hand
cable drums
(2) Vertical Rh/Lh
Tracks
5/16” X 1-5/8” Tamper-resistant hex head lag
screws (as required)
1/4”-20 X 9/16” Track
bolts (as required)
5/16” X 1-1/4” Clevis
pin & cotter pin
Lift handles
Pull handles
#8 X 1 21/32” quadrex pan
head screw (As required)
Stud plate (as required)
