Tools Needed:
Step Ladder
Torsion Spring assembly
imPoRTaNT: RIGhT AND LEFT hAND IS ALWAYS
DETERMINED FROM INSIDE ThE bUILDING LOOkING
OUT.
NoTe: Identify the springs provided as either right
hand wound (red winding cone), which goes on the
LEFT hAND SIDE or left hand wound (black winding
cone), which goes on the RIGhT hAND SIDE.

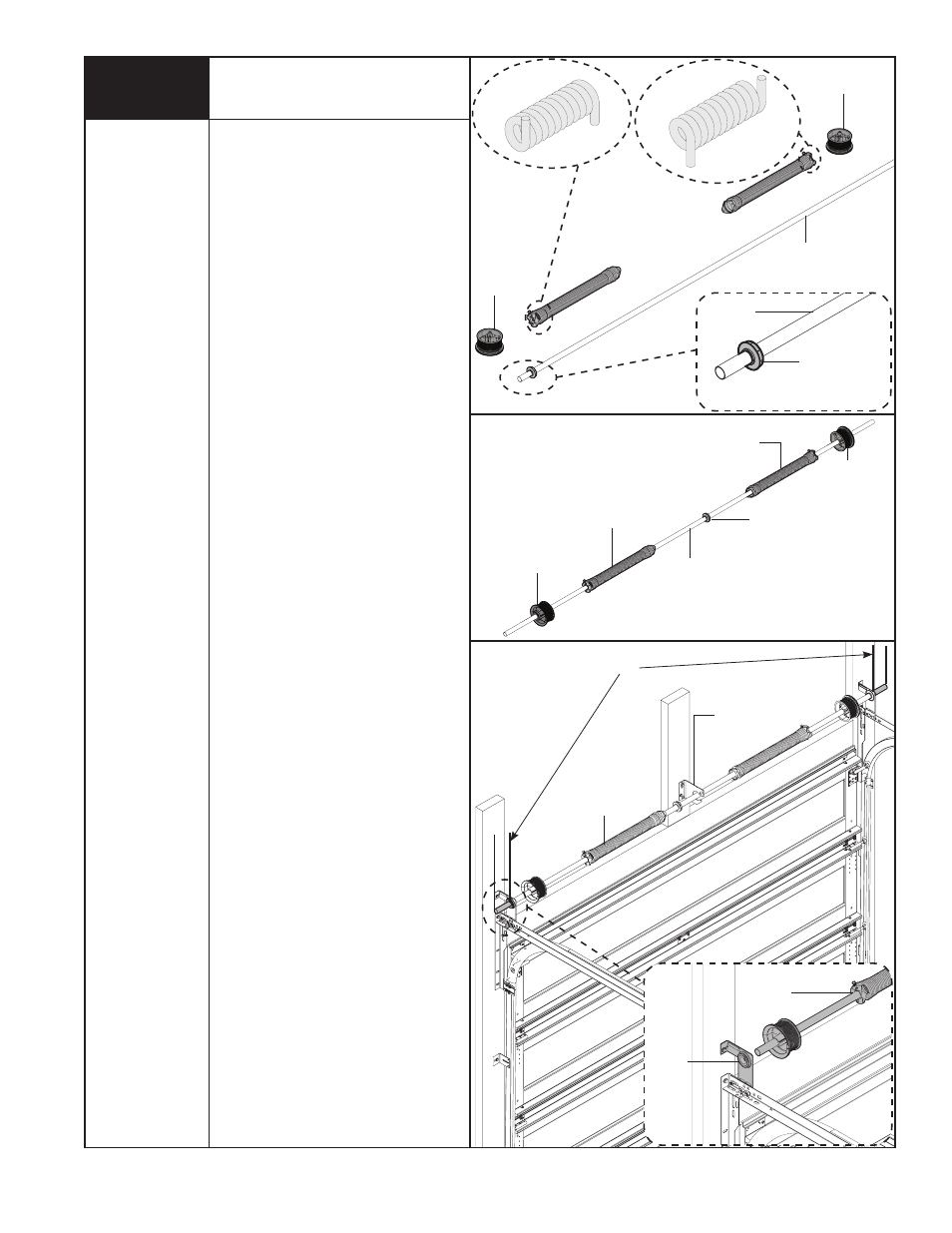

Facing the inside of the door, lay the torsion tube on
the floor. Lay the spring with the black color coded
winding cone and the black color coded cable drum,
at the right hand end of the tube. Lay the spring with
the red color coded winding cone and the red color
coded cable drum, at the left hand end of the tube.
NoTe: The set screws used on all torsion
counterbalance winding cones and cable drums, are
now colored red. DO NOT identify right and left hand
by the set screw color.
Slide the nylon center bushing onto the torsion tube
followed by the springs and cable drums. The nylon
center bushing, springs and cable drums must be
positioned, as shown.
With assistance, pick up the torsion assembly and
slide one end of the tube through one end bearing
bracket. Lay the torsion tube into the center bearing
bracket and slide the other end of the tube into the
opposite end bearing bracket. Position the torsion
tube so that equal amounts of the tube extend from
each end bearing bracket.
