Operating and functional elements – Windsor Saber Compact 16 User Manual
Page 7

English
7

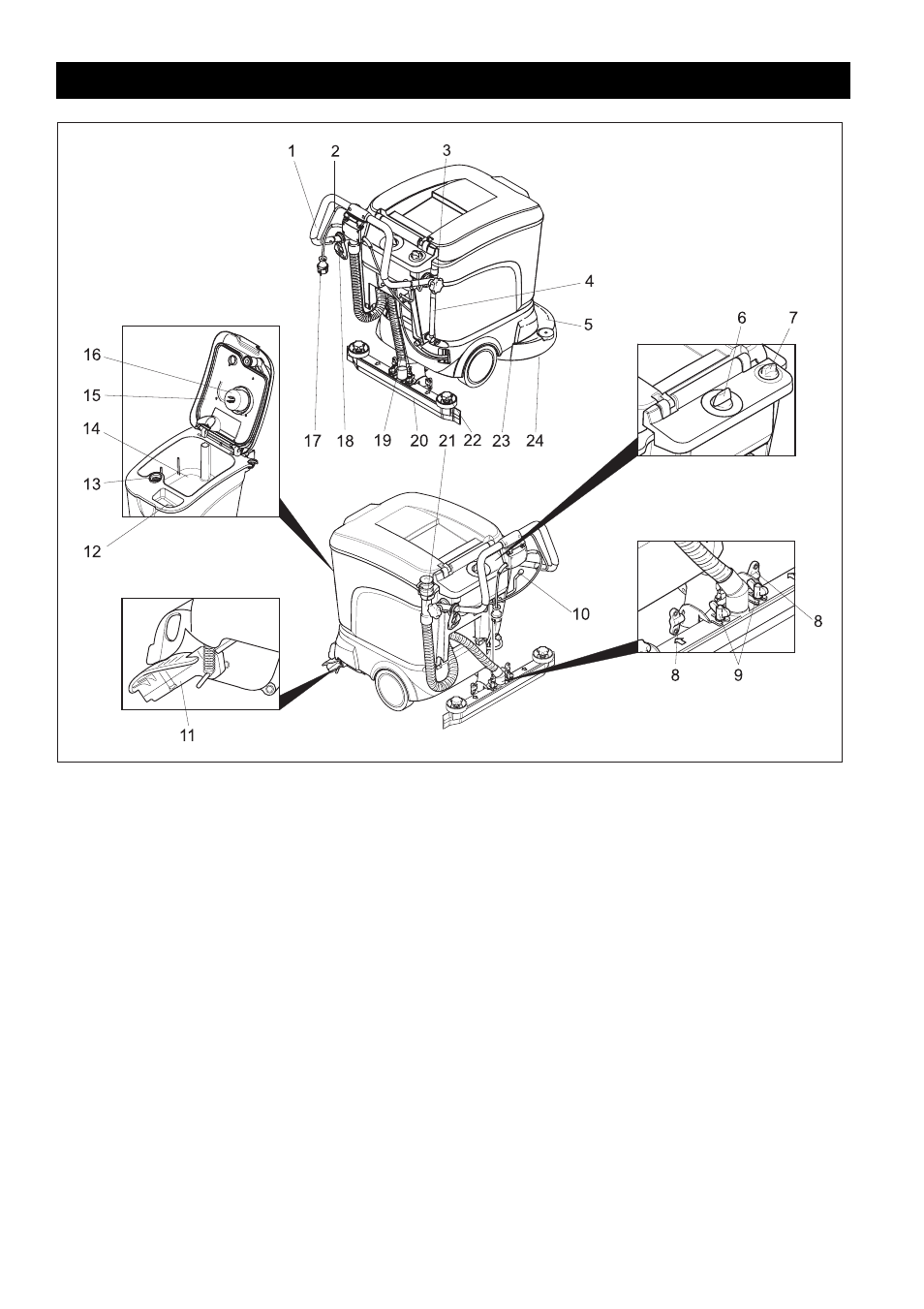

1 Push handle
2 Control handle
3 Star grip for push handle fastening
4 Fill level display and fresh water drain
hose
5 Cleaning head
6 Program selection switch
7 Control button for water volume
8 Wing nuts for tilting the squeegee tool
9 Wing nuts for fastening the squeegee
tool
10 Lever for lowering squeegee tool
11 Running gear for transportation
12 Fresh water tank fill port
13 Lint filter
14 Dirty water tank
15 Cover for dirty water tank
16 Float
17 Mains plug
18 Strain relief hook
19 Suction hose
20 Squeegee tool *
21 Dirty water drain hose
22 Star grips for replacement of squeegee
blades
23 Splash guard
24 Disk brushes
* not included with standart machines
Operating and functional elements
