SWITCH
COM
NO
TERMINALS

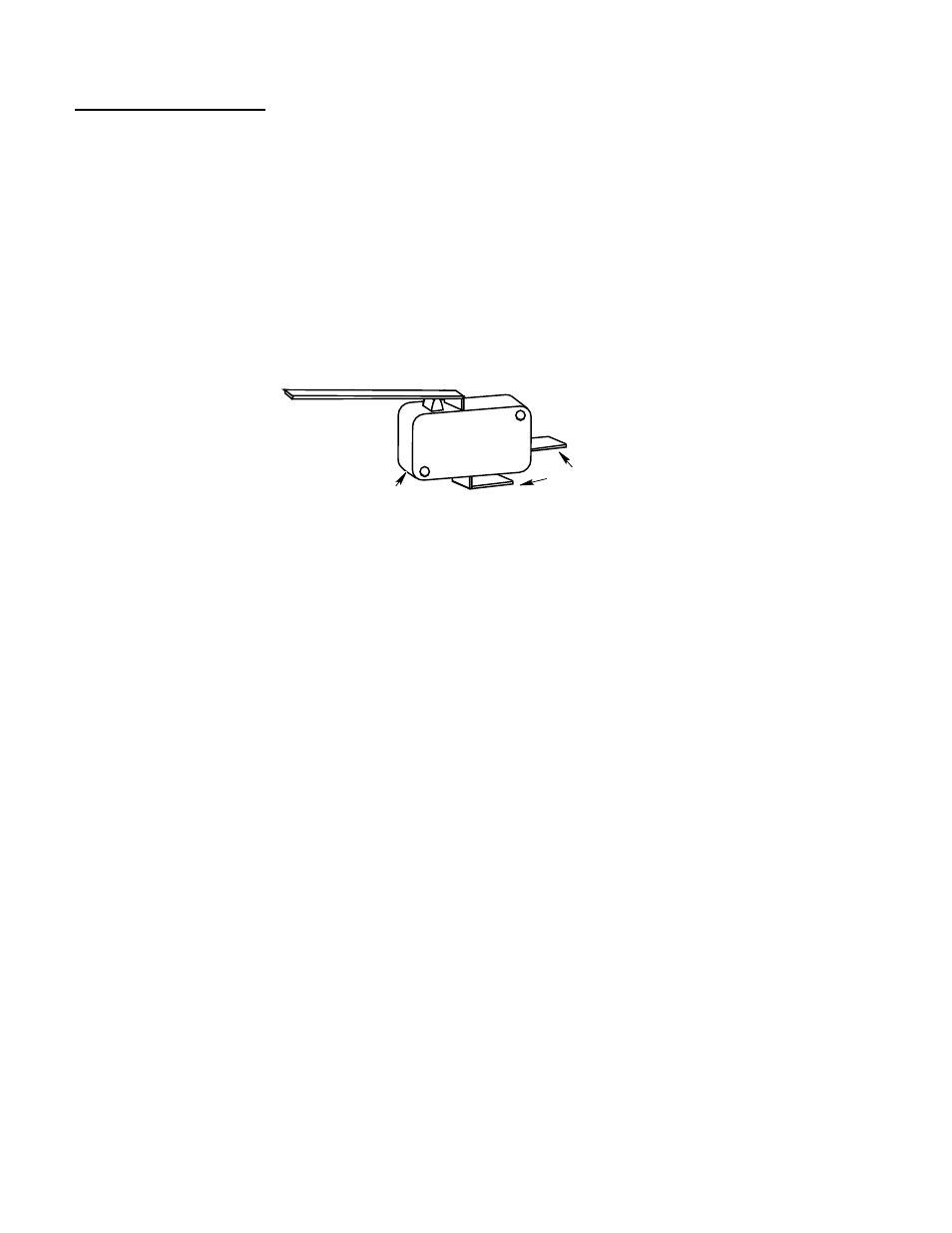

Figure 6-8
To test the switch(es):
1. Turn off the gas and electrical power to the range.
2. Disconnect the wires from the switch terminals.
3. Set the ohmmeter to the R x 1 position.
4. Connect one of the ohmmeter leads to the common (COM) terminal.
5. Touch the other ohmmeter lead to the normally-open (N.O.) switch terminal. The ohmmeter
should indicate infinity (
∞), or an open circuit.
6. Close the switch and the ohmmeter should now indicate continuity (0
Ω).
If the above results are not obtained, the switch is defective and should be replaced.
