Page 5-2
Natural L.P.
Spring Retainer
Cap
Gasket
Gas Intlet
Spring
Figure 5-1A
Spring
Gas Outlet
Figure 5-1B
Gas Intlet
Gas Outlet
L.P. Natural
Cap

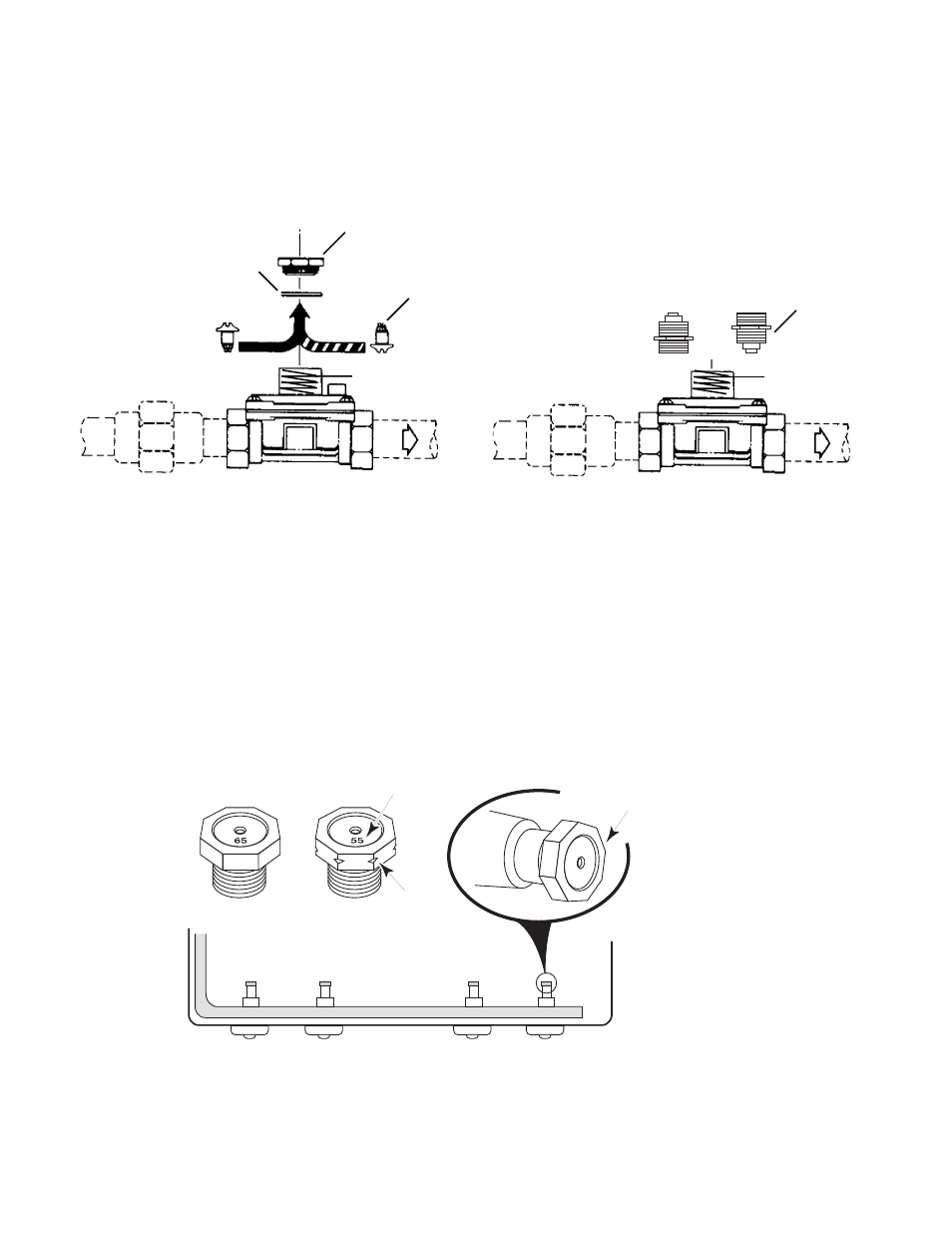

CONVERTING A PRESSURE REGULATOR
By varying the tension of the regulator spring, the gas outlet pressure can be controlled for natural
and L.P. gas. The regulator spring tension is adjusted by reversing the spring retainer (see Figure
5-1A) or the regulator cap (see Figure 5-1B).
CONVERTING COOKTOP BURNERS
The cooktop burners can be converted from natural to L.P. gas operation by changing the orifice
spuds on the gas valves. The L.P. orifice spuds are packed in the literature package that is shipped
with the range. Always make sure that the correct spud is installed in the valves at the proper
location (see Figure 5-2). The spuds are color-coded and identified with an orifice opening number
stamped on top.
Orifice Spuds
Nat. L.P.
Notch
Orifice Opening
Number
Remove & Replace
Orifice Spud On Valve
L.R. L.F. R.F. R.R.
Figure 5-2
