Page 4-12
Oven Control Panel
(Thermostat)
Bake Burner
Wires To
Broil Relay
Wires To
Bake Relay
Broil Burner
Main Gas
Inlet
Broil Gas
Line
Glo-Bar
Ignitors
Dual Safety Valve
Pressure
Regulator
120-Volt
Supply
BAKE
CUSTOM BROIL
AUTO
CLEAN
TEMP
HR MIN
MIN
START
ENTER
5 SEC
OFF
CANCEL
88 88
888 ON
HEA T B AKE BR OIL LO CKD C LEA N TE MP
SELF-CLEANING OVEN TIMER SET
CLOCK TIMER OFF

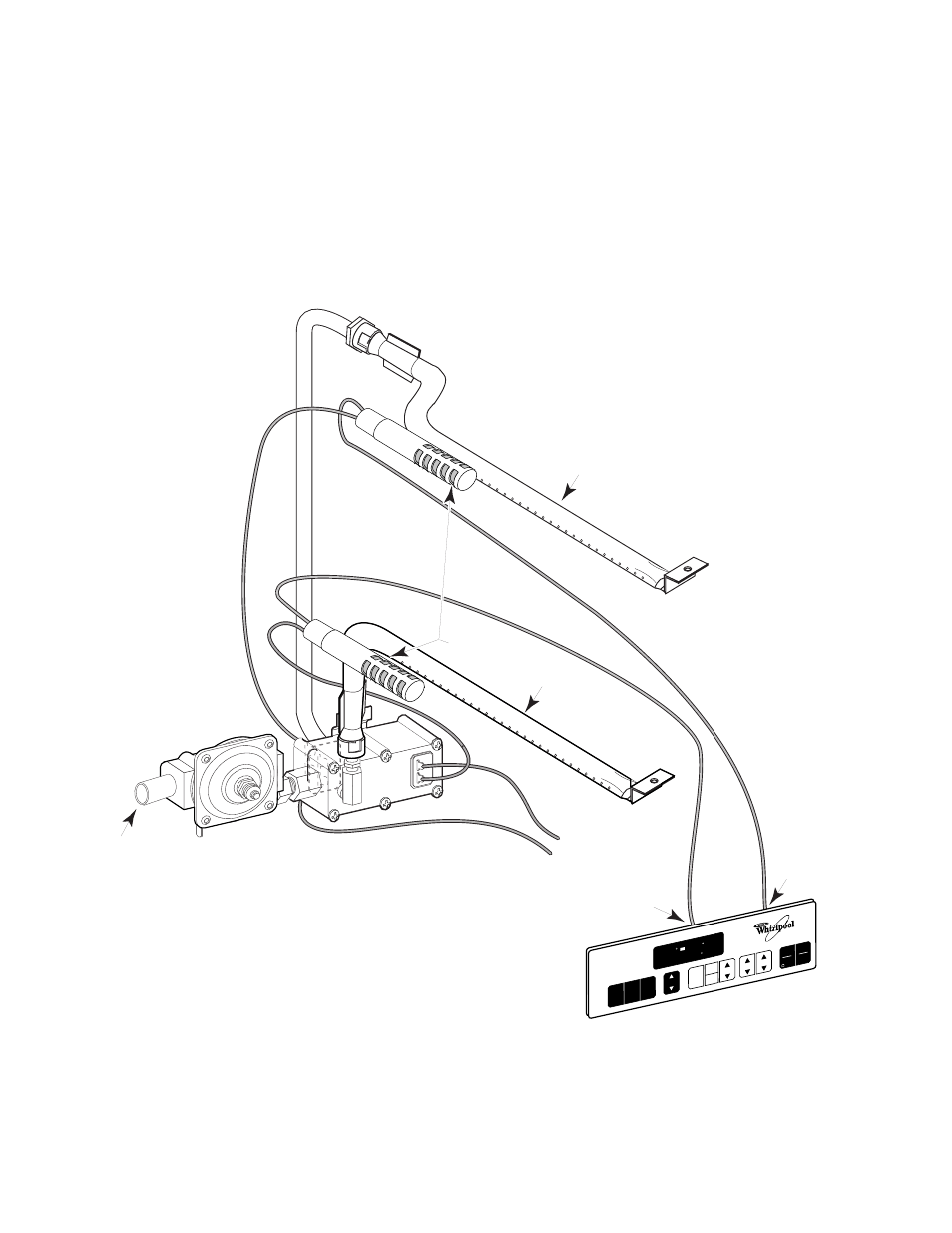

Figure 4-22
SELF-CLEANING SYSTEM
All Whirlpool Self-Cleaning Gas ranges use two burners in the oven to provide even heating during the
Bake and Broil functions, and higher temperature during the Self-Clean cycle (see Figure 4-22). To
provide each of these features, the system incorporates a
bake burner that operates just like the
Glo-Bar Ignition System already discussed, plus an additional broil burner that provides the
benefit of broiling inside the same oven cavity. All Self-Clean ranges feature electronic controls,
which utilize an accurate and responsive electronic sensor.
