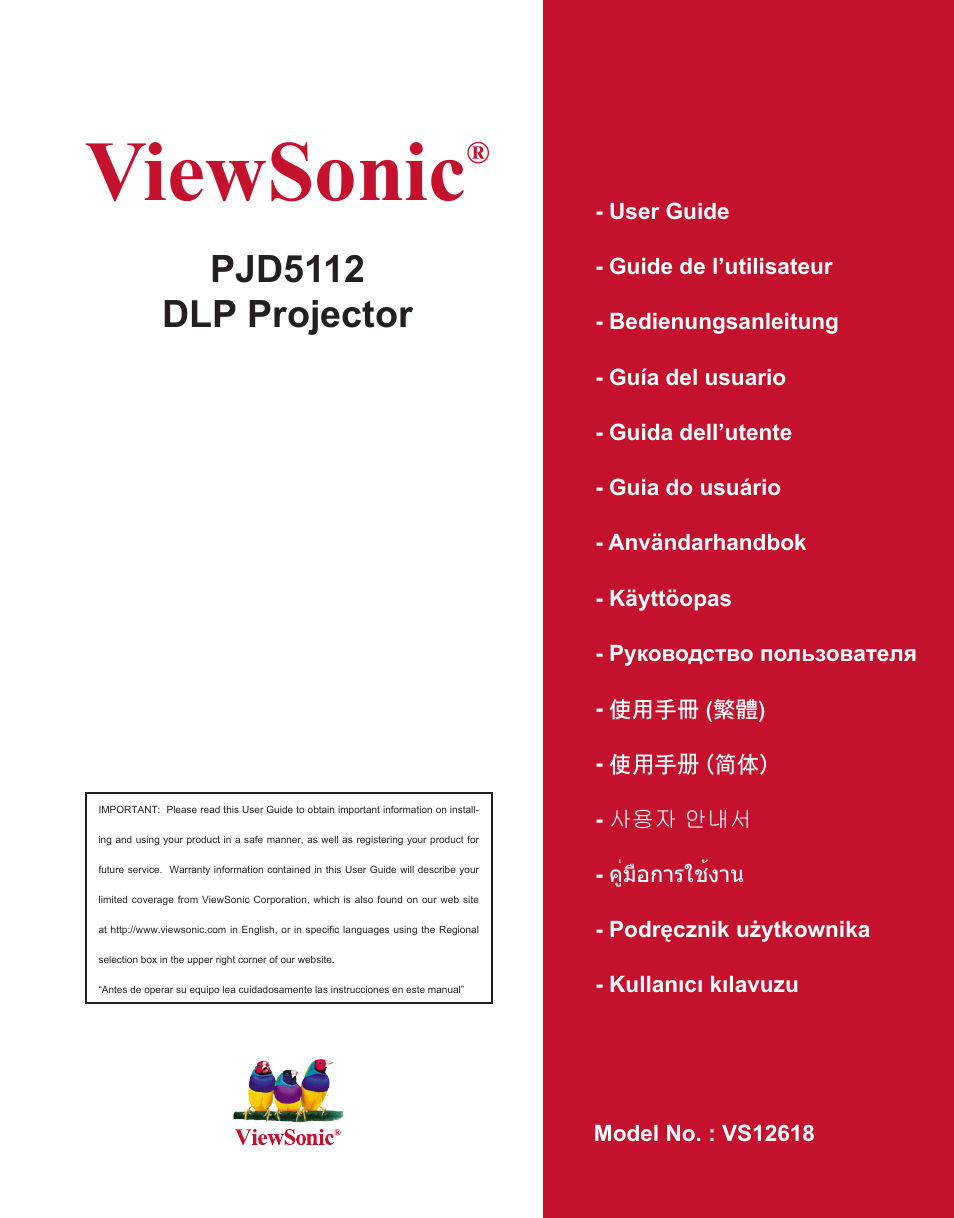

VIEWSONIC PJD5112 User Manual

Viewsonic, Pjd5112 dlp projector

Table of contents

Document Outline

PJD5112_UG_ENG.pdf
- VPD-S5500-EN.pdf
  - FCC Notice
  - Safety Instructions
  - Notes on the AC Power Cord
    - Introduction
      - Projector Features
      - Package Contents
    - Projector with Lens Cap
    - AC Power Cord
    - VGA Cable (D-SUB to D-SUB)
      - Projector Overview
    - Using the Product
      - Control Panel
      - Connection Ports
      - Remote Control
      - Replacing the Battery
        1. Push the catch to the left and remove the battery holder.
        2. Remove the old Lithium coin cell and install new one (CR2025). Ensure that the side with the mark “+” is up.
        3. Push the battery holder back into the remote control until you feel a click.
      - Remote Control Operation
    - Installation
      - Connecting the Projector
      - Powering On/Off the Projector
  - Powering On the Projector:
    - 1. Remove the projector lens cap.
    - 2. Complete the AC power cord and peripheral signal cable(s) connections.
    - 3. Press button to turn on the projector. The projector takes a minute or so to warm up.
    - 4. Turn on your source (computer, notebook, DVD, etc.). The projector automatically detects your source.
  - Powering Off the Projector:
    - 1. Press button to turn off the projector lamp. You will see a message "Power off? Press Power again" appear on the screen.
    - 2. Press button again to confirm.
    - 3. Disconnect the AC power cord from the electrical outlet and the projector.
    - 4. Do not turn on the projector right after power off.
    - Adjusting the Projector
  - Adjusting the Projector Height
    - 1. To raise or lower the image, press the elevator button and raise or lower the front of the projector. Release the button to lock the adjustment.
    - 2. To level the image on the screen, turn the tilt-adjustment foot to fine-tune the height.
  - Adjusting the Projector Zoom and Focus
    - 1. Focus the image by rotating the focus ring. A still image is recommended for focusing.
    - 2. Adjust the image by sliding the zoom ring.
  - Adjusting Projection Image Size
    - Menu Operation
      - 1. Press the MENU button to open the OSD menu.
      - 2. When OSD is displayed, use p / q to select any feature in the main menu.
      - 3. After selecting the desired main menu item, press u to enter sub-menu for feature setting.
      - 4. Use p / q to select the desired item and adjust the settings with t / u.
      - 5. Press the MENU button, the screen will return to the main menu.
      - 6. To exit OSD, Press the MENU button again. The OSD menu will close and the projector will automatically save the new settings.
    - Maintenance
      - Cleaning the Lens
      - Cleaning the Projector Housing
      - Cleaning the Filter Cover
        1. Switch the projector off and unplug the AC power cord from the wall socket.
        2. Remove the filter cover as the illustration shown.
        3. Clean the filter cover.
        4. Replace the filter cover.
        5. Attach the filter cover.
        6. Plug the power back into the projector.
      - Replacing the Lamp
        1. Turn off the projector.
        2. If the projector is installed in a ceiling mount, remove it
        3. Unplug the power cord.
        4. Loosen the screw in the side of the lamp cover and remove the cover.
        5. Remove the screws from the lamp module, raise the handle, and lift out the module.
        6. Insert the new lamp module into the projector and tighten the screws.
        7. Replace the lamp cover and tighten the screw.
        8. Turn on the projector. If the lamp does not turn on after the warm-up period, try reinstalling the lamp.
        9. Reset the lamp hour. Refer to the “Setting” menu.
    - Specifications
    - Appendix
      - LED Indicator Messages
      - Compatibility Modes
  - Computer:
  - Video:
    - Troubleshooting
  - Start-up problems
  - Image problems
    - RS-232 Command and Configuration
    - IR Control Code
- VPD-S5500-EN-0821.pdf
