P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M

1 - 8 8 8 - V I K I N G 1

R E V I S E D 4 / 2 6 / 1 1

© 2 0 1 1 V R C — I N F O R M AT I O N S U B J E C T T O C H A N G E

All models include

Exclusive VSH™ Pro Sealed Burner

System (VariSimmer™ to High)—
combination of unique patented
burner and top design provide
cleanability plus superior performance
at simmer and high

Exclusive SureSpark™ Ignition System

for all burners

Exclusive VariSimmer™ setting for all

burners

Exclusive one-piece tooled and

porcelainized cooking surface contains
spills for easy cleaning

Exclusive combination of single

u-shaped bake burners and infrared
broil burner, all with electric spark
ignition

• Six functions—natural airflow bake,

convection bake, infrared broil,
convection infrared broil, convection
dehydrate, and convection defrost

• Standard kickspace height
• Shipped standard with heavy-duty

metal knobs with stainless steel finish

• Shipped with stainless steel island

trim*

30”W. 4B models include

• Convection oven capacity:

o Overall capacity—4.0 cu. ft.

(23”W. x 16-1⁄8”H. x 18-3/4”D.)

o AHAM Standard—3.7 cu. ft.

(23”W. x 16-1⁄8”H. x 17”D.)

o Three heavy-duty racks/six positions
o Two halogen lights

• Four 15,000 BTU brass sealed burners

with porcelain/cast iron caps and
automatic ignition/re-ignition

• Center grate allows movement of

cooking vessels across entire top surface

36”W. models include

• Convection oven capacity:

o Overall capacity—5.1 cu. ft.

(29“W. x 16-1⁄8“H.x 18-3⁄4“D.)

o AHAM Standard capacity—4.6 cu.

ft. (29“W. x 16-1⁄8“H.x 17“D.)

o Dual bake burner

36”W. 6B models include

Exclusive One TruPower Plus™ 18,500

BTU burner (front right burner)

• Five 15,000 BTU brass sealed burners

with porcelain/cast iron caps and
automatic ignition/re-ignition

36”W. 4G models include

• Four 15,000 BTU brass sealed burners

with porcelain/cast iron caps and
automatic ignition/re-ignition

• 12“W. thermostatically controlled steel

griddle/simmer plate

• Cast aluminum removable grease

trough holds 2-1/2 cups of liquid

36”W. 4Q models include

• Four 15,000 BTU brass sealed burners

with porcelain/cast iron caps and
automatic ignition/re-ignition

• 12“W. grill with flavor generator

plates and automatic ignition/re-
ignition

Exclusive two-piece removable

porcelainized drip pan holds three
quarts of liquid

• All finishes have stainless steel

handle/chrome-plated brackets and
stainless steel drip tray pull, control
panel, and landing ledge.

• Brass Accent Option (BR)—nameplate,

handle, end cap, knob bezels. Brass
components have a durable protective
coating for maintenance-free normal use.

o Has black porcelain grates, black

porcelain burner caps, black
porcelain grate supports, metal
knobs with stainless steel finish and
black switches.

• White (WH)

o Finish designates door front, lower

front panel, side panels, porcelain
grate supports, porcelain center
worktop, and knobs/switches.

o Has black porcelain grates and black

porcelain burner caps.

FINISH DETAILS FOR ALL MODELS

• Stainless Steel (SS), Black (BK), White

(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
o Finish designates door front, lower

front panel, and side panels.

Standard Features & Accessories

COOKING

Professional Custom Series Freestanding Gas 30”/36”W.

Sealed Burner Range

*Shown throughout with island trim. See Installation Notes & Accessories for details.

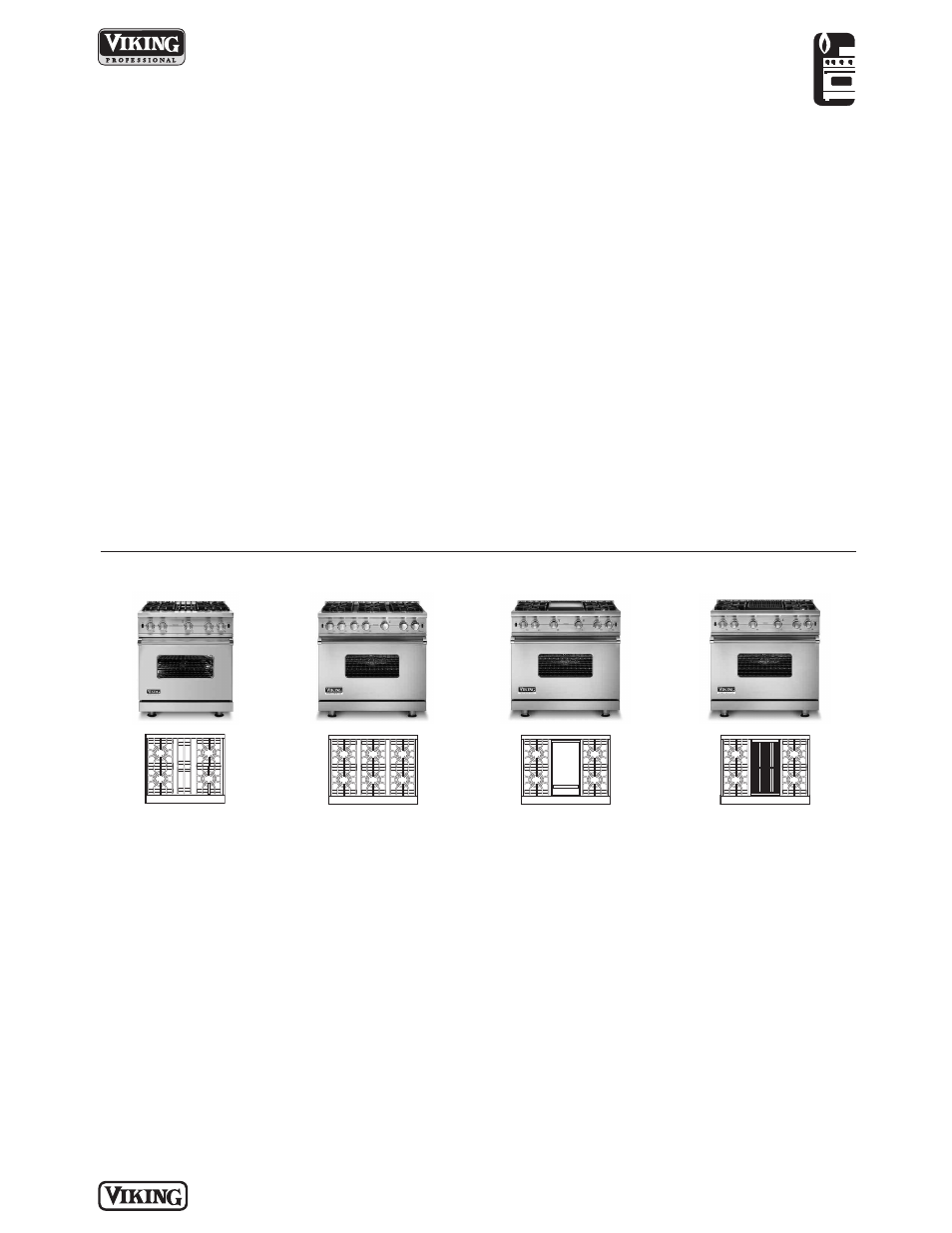

ORDERING INSTRUCTIONS

First specify model number, and then color code (VGCC530-4BSS). If ordering optional brass accent, specify code at end (VGCC530-
4BSSBR). If ordering optional LP conversion, specify code at end (VGCC530-4BSSBRLP).

VGCC530-4B*

30”W. Four-Burner

Range

VGCC536-6B*

36”W. Six-Burner

Range

VGCC536-4G*

36”W. Four-Burner/

Griddle Range

VGCC536-4Q*

36”W. Four-Burner/

Grill Range

Model Options
