ViewSonic Pro8400 17

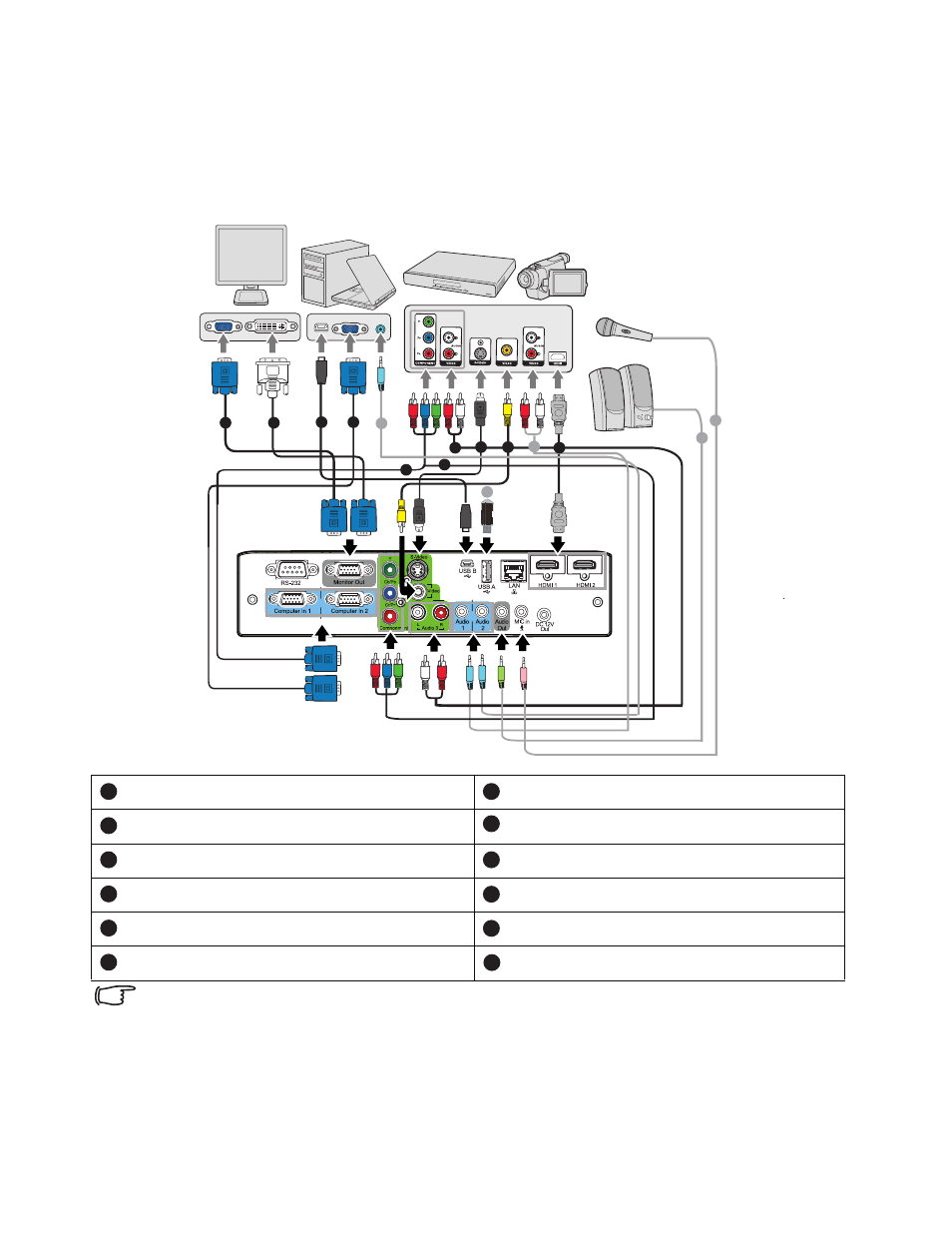

Connection
When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.
Important
„ In the connections shown above, some cables may not be included with the
projector (see “Package Contents” on page 6 ). They are commercially
available from electronics stores.
„ The connection illustrations above are for reference only. The rear
connecting jacks available on the projector vary with each projector model.
„ For detailed connection methods, see pages 18-21 .
VGA cable (D-Sub to D-Sub) S-Video cable
VGA to DVI-A cable Composite Video cable
USB cable (mini-B type to A type) Audio cable
VGA (D-Sub) to HDTV (RCA) cable HDMI cable
Component Video cable Microphone 3.5 mini jack cable
Audio L/R cable USB flash drive
7
1 2 3
4
9
12
10
1
9 8 7 6
9
11
5
1 7
2 8
3 9
4 10
5 11
6 12
