RGB-HD Connections: The Vision 10/12 has an RGB input for connecting a personal
computer or DTV decoder with an RGB output. See Figure 3-9.

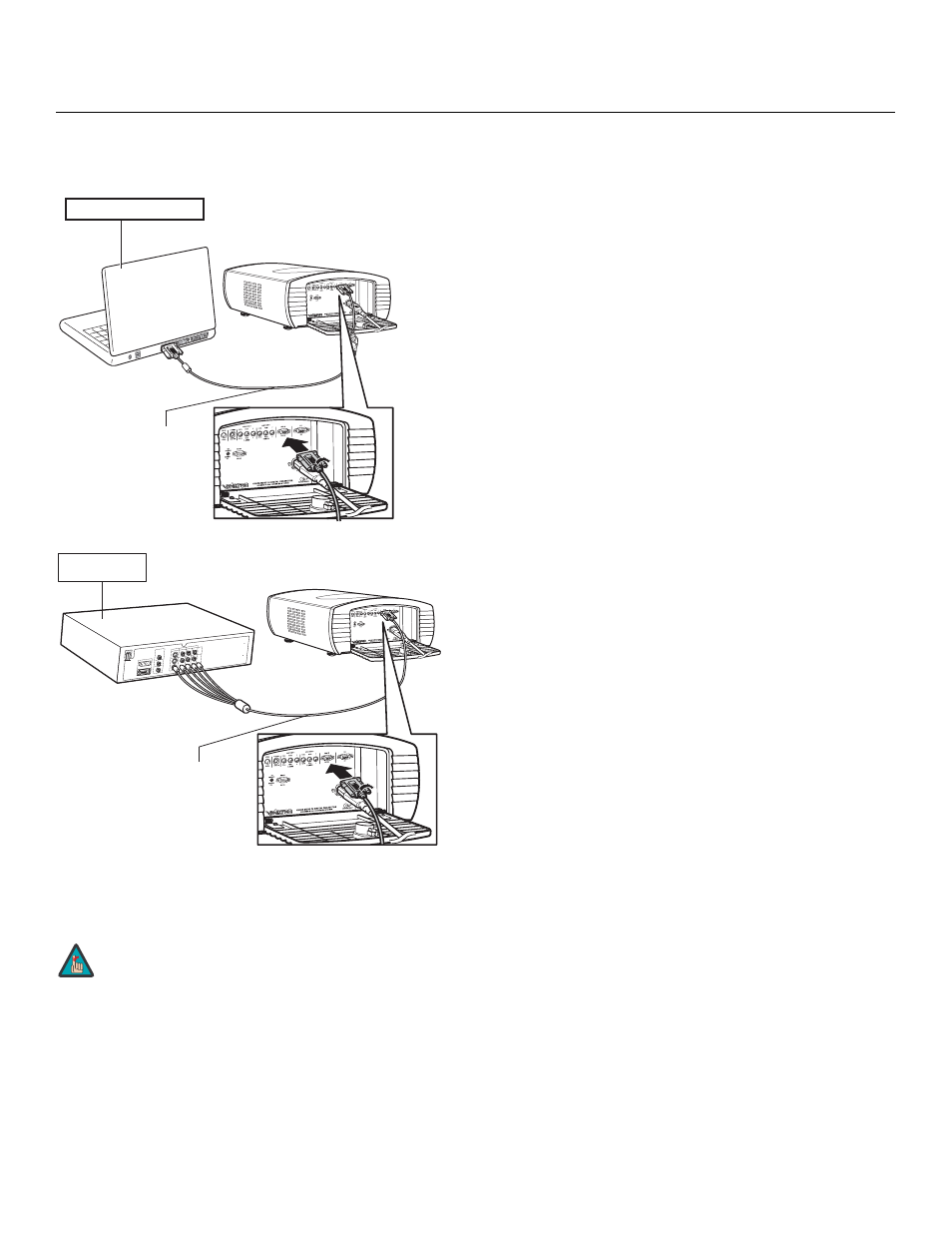

Figure 3-9. Analog RGB Connections
1. Refer to Computer Signal Compatibility on page 60 for a list of
computer signals compatible with the Vision 10/12. Use with signals
other than those listed may cause some functions not to work.
2. Some Macintosh computers may require a Macintosh video adapter.
Contact your nearest authorized service center or dealer.
3. This Vision 10/12 may not be able to display images from notebook
computers in simultaneous (CRT/LCD) mode. Should this occur, switch
the notebook computer to “CRT only” mode. If you are unsure how to do
this, refer to your notebook computer’s user manual.
Notebook Computer
HD 15-pin
VGA cable
DTV decoder
VGA-to-RGBHV
Breakout cable,
5 x BNC-to-HDB-15
(sold separately)
Note
