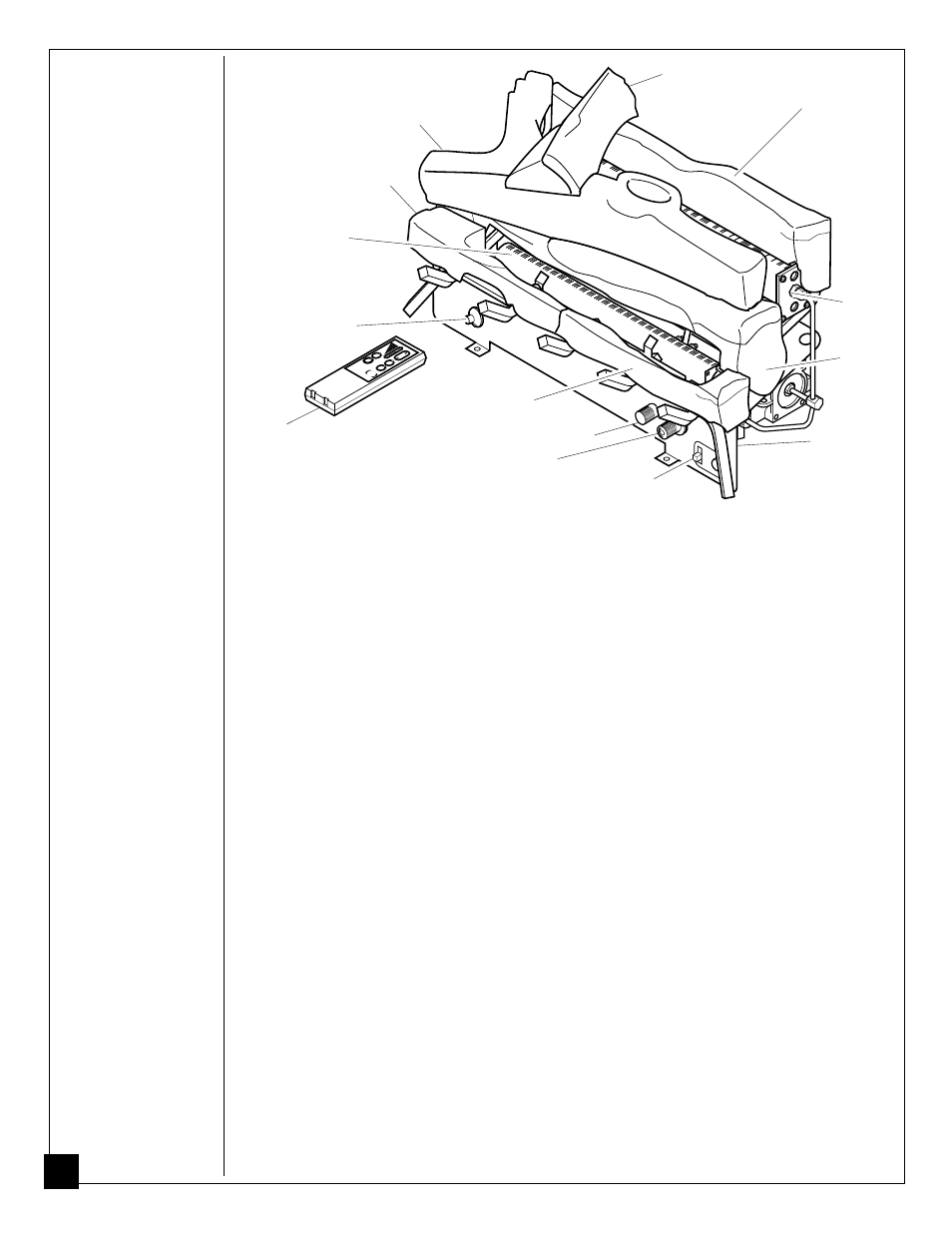

Figure 1 - VS24PR Shown
Left
Front
Branch
Control Knob
Rear Log
Base
Assembly
Front
Burner
Piezo Ignitor
Rear
Burner
Crossover Log
Top Middle
Log
Bottom
Middle
Log
Right Front
Branch
Remote
Selector
Switch
(Optional)
Flame
Adjustment
Knob
Remote
Control
(Optional)
PRODUCT
IDENTIFICATION
LOCAL CODES Install and use heater with care. Follow all local codes. In the absence of local codes, use the latest edition
of The National Fuel Gas Code ANSI Z223, also known as NFPA 54*.
*Available from:
American National Standards Institute, Inc. National Fire Protection Association, Inc.
1430 Broadway Batterymarch Park
New York, NY 10018 Quincy, MA 02269
Note: Where listed vented decorative logs are required, thermostat operation is not permitted.
1. Remove logs and heater base assembly from carton. Note: Do not pick up heater base assembly by
burners. This could damage heater. Always handle base assembly by grate.
2. Remove all protective packaging applied to logs and heater for shipment.
3. Check all items for any shipping damage. If damaged, promptly inform dealer where you bought
heater.
UNPACKING
PRODUCT
FEATURES
Operation
This heater is clean burning. It requires no outside venting. There is no heat loss out a vent or up a
chimney. Heat is generated by both realistic flames and glowing coals. This heater is designed for vent-
free operation with flue damper closed. State and local codes in some areas prohibit the use of vent-free
heaters.
Safety Pilot
This heater has a pilot with an Oxygen Depletion Sensor Shutoff System (ODS). The ODS/pilot is a required
feature for vent-free room heaters. The ODS/pilot shuts off the heater if there is not enough fresh air.
Piezo Ignition System
This heater has a piezo ignitor. This system requires no matches, batteries, or other sources to light heater.
