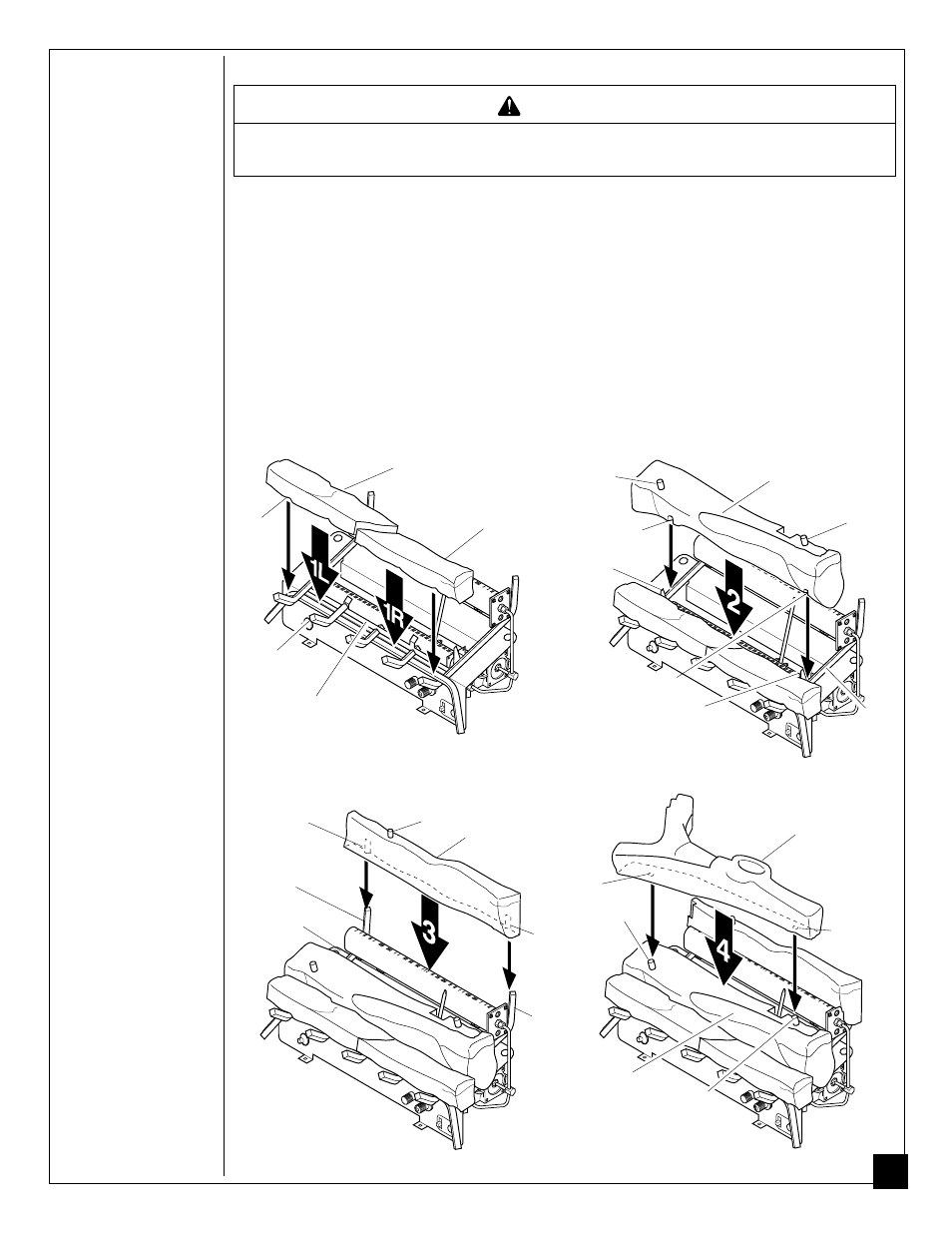

INSTALLING LOGS
Each log is marked with a number. These numbers will help you identify the log when installing. It is very
important to install these logs exactly as instructed. Do not modify logs. Only use logs supplied with
heater.
1. Place front logs (#1L and #1R) on top of the grate. Make sure the notches in the bottom of the logs fit
over the grate prongs (see Figure 16). Push back of logs flush with metal grate bar. Note: 18" model
has only one front log.
2. Rest bottom middle log (#2) behind metal posts on front burner. Make sure the grooves in the bottom
of the log fit over the grate. Bring the log forward next to the metal posts. The pegs on the log must be
on top (see Figure 17).
3. Slide the grooves in the back of the rear log (#3) against the rear grate prongs. Make sure the peg on
the log is on top (see Figure 18).
4. Place the top middle log (#4) on the bottom middle log (#2). Make sure the pegs of the bottom middle
log fit securely in the holes of the top middle log (see Figure 19).
Bottom Middle Log (#2)
Metal Post
Metal Post
Peg
Groove
Groove
Grate
Figure 16 - Installing Front Logs
(#1L and #1R)
Grate
Prongs
Metal Grate Bar
Front Log (#1L)
Notch
Front Log (#1R)
Figure 17 - Installing Bottom
Middle Log (#2)
Rear Log (#3)
Peg
Grate
Prong
Grate
Prong
Rear
Burner
Groove
in Back
of Log
Groo ve
in Back
of Log
Figure 18 - Installing Rear Log (#3)
Top Middle Log (#4)
Hole
Peg
Peg
Bottom
Middle Log
Figure 19 - Installing Top Log (#4)
Hole
INSTALLING
Continued
WARNING
Failure to position the parts in accordance with these diagrams or failure to use only parts
specifically approved with this heater may result in property damage or personal injury.
Peg
