21
103448
O
F F
PIL OT
O
N
LO
IH ON
OFF
REMOTE
OPTIONAL GHRCT HAND HELD REMOTE OPERATION OPERATING
HEATER
Continued
NOTICE
You must light the pilot before using the hand-held remote control unit. See Lighting
Instructions on page 19.

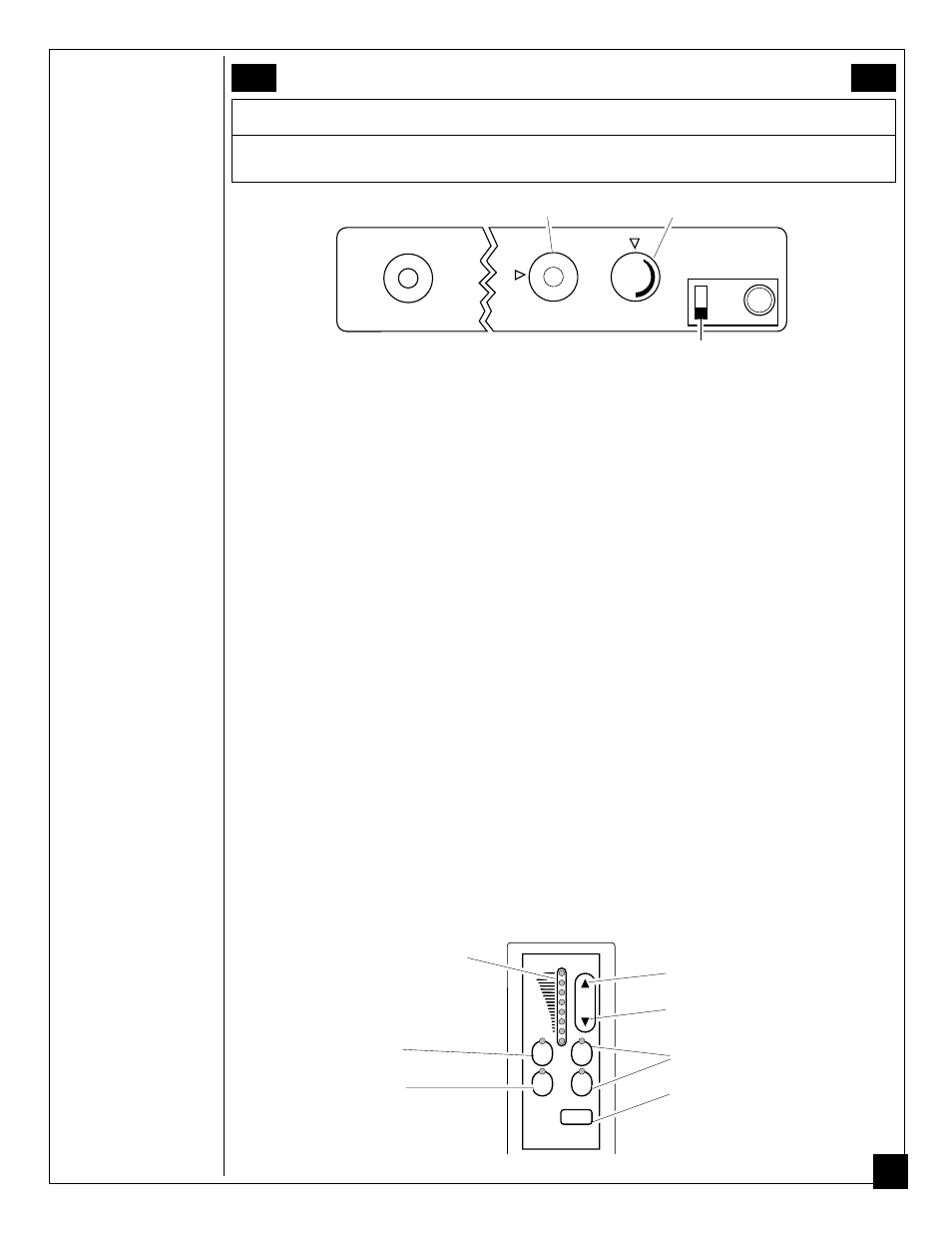

Figure 23 - Setting the Remote Selector Switch, Control Knob, and Flame Adjustment Knob
for Remote Operation
Remote Selector Switch in Remote Position
Control Knob in
On Position
Flame Adjustment Knob
Figure 24 - GHRCT Thermostat Hand-Held Remote Control Unit Selections
TEMP
STATUS
HI
LO MAN ON
AUTO OFF
Note: The GHRCT receiver and hand-held remote control must be purchased separately (see
Accessories, page 30). Follow instructions included with the remote control.
1. After lighting, let pilot flame burn for about one minute. Turn control knob to ON position.
Adjust flame adjustment knob anywhere between HI and LO. Slide the remote selector switch to
the REMOTE position.
The burners will come on. You can now turn the burners on and off with
the hand-held remote control unit.
IMPORTANT: Do not leave the remote selector switch in the REMOTE or ON position when the
pilot is not lit. This will drain the battery.
2. Select the MANUAL or AUTO button on the hand-held remote control unit.
• In MANUAL mode, turn burners on or off by pressing the ON or OFF buttons on the hand-
held remote control unit.
• In AUTO mode, the room temperature is controlled by the thermostat in the hand-held remote
control unit. To increase the room temperature, press the top arrow of the TEMP button. To
lower room the temperature, press the bottom arrow to the TEMP button. At higher settings
the heater will run more.
IMPORTANT: The hand-held remote control unit must be near the heater. Do not keep the
hand-held remote control unit too close the heater. The thermostat on the hand-held remote
control unit will heat up too quickly and turn the heater off.
3. Use the STATUS button on the hand-held remote control unit to see the operation mode being
used and the temperature setting selected. A red light will come on beside the operation mode
being used when the status button is pressed.
4. To turn the burners off when operating in the MANUAL mode, press the OFF button. If operat-
ing in the auto mode, press the manual button, then press the OFF button The pilot will remain
lit.
IMPORTANT: To turn the pilot off, manually turn the control knob on the heater to the OFF
position or set remote selector switch to OFF position.
Increases Room
Temperature
Decreases Room
Temperature
Turns Burners
On and Off
Shows Current
Operation Mode
The log heater will
automatically cycle between
pilot and the heat setting that
has been selected.
Shows Temperature Setting
Allows Burners to be Turned
On and Off with the Hand-
Held Remote Unit.
