VIEWSONIC DLP PROJECTOR PJD7400 - Manual (Page 11)

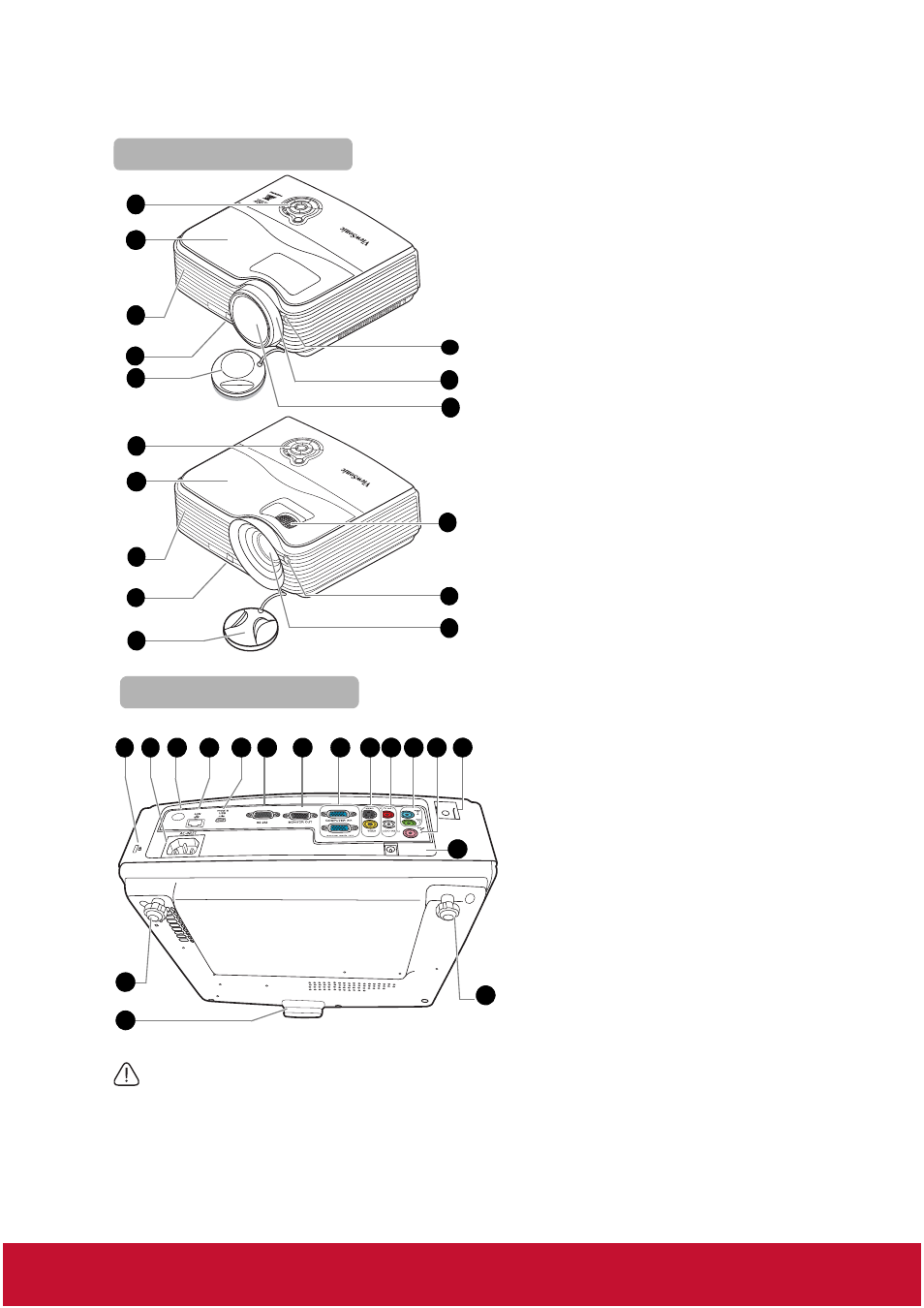

Projector exterior view
1. External control panel
(See
"Projector" on page 8 for
details.)
2. Lamp cover
3. Vent (heated air exhaust)
4. Quick-release button
5. Lens cover
6. Front IR remote sensor
7. Focus ring (PJD7382)/Focus and
Zoom ring (PJD7400/PJD7400w)
8. Projection lens
9. Kensington anti-theft lock slot
10. AC power cord inlet
11. Rear IR remote sensor
12. RJ45 LAN input port
13. Type B USB port
14. RS-232 control port
15. RGB signal output socket
16. RGB (PC)/Component video
(YPbPr/YCbCr) signal input
socket-1/2
17. Video input socket/
S-Video input socket
18. Audio signal input socket (L/R)
19. Audio signal input socket
Audio signal output socket
20. Microphone input socket
Connects a microphone with a 3.5
mm mini jack cable or wireless
module.
21. Security bar
Connects a commercially available
theft prevention cable.
22. 12V DC output terminal
Used to trigger external devices
such as an electric screen or light
control, etc. Consult your dealer for
how to connect these devices.
23. Rear adjuster foot
24. Quick-release foot
Warning
• THIS APPARATUS MUST BE EARTHED.
• When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring,
or connect the power plug to an easily accessible socket-outlet near the unit. If a fault should
occur during operation of the unit, operate the disconnect device to switch the power supply
off, or disconnect the power plug.
Front/upper side
PJD7382
PJD7400/
PJD7400w
1
3
4
5
2
8
7
6
1
3
4
5
2
8
1
3
4
5
2
8
6
7
DC 12V OUT
Rear/lower side
24
23
23
22
15 16 14 13 10 18 11 12 17 19 21 20 9
