The Schedule Scheme operations
There are six related buttons, “Load…”, “Undo”, “Clear”, “Save”, “Save as…” and
“Close” for handling the scheduling schemes. These are shown in
X
Figure 4-4
X
.

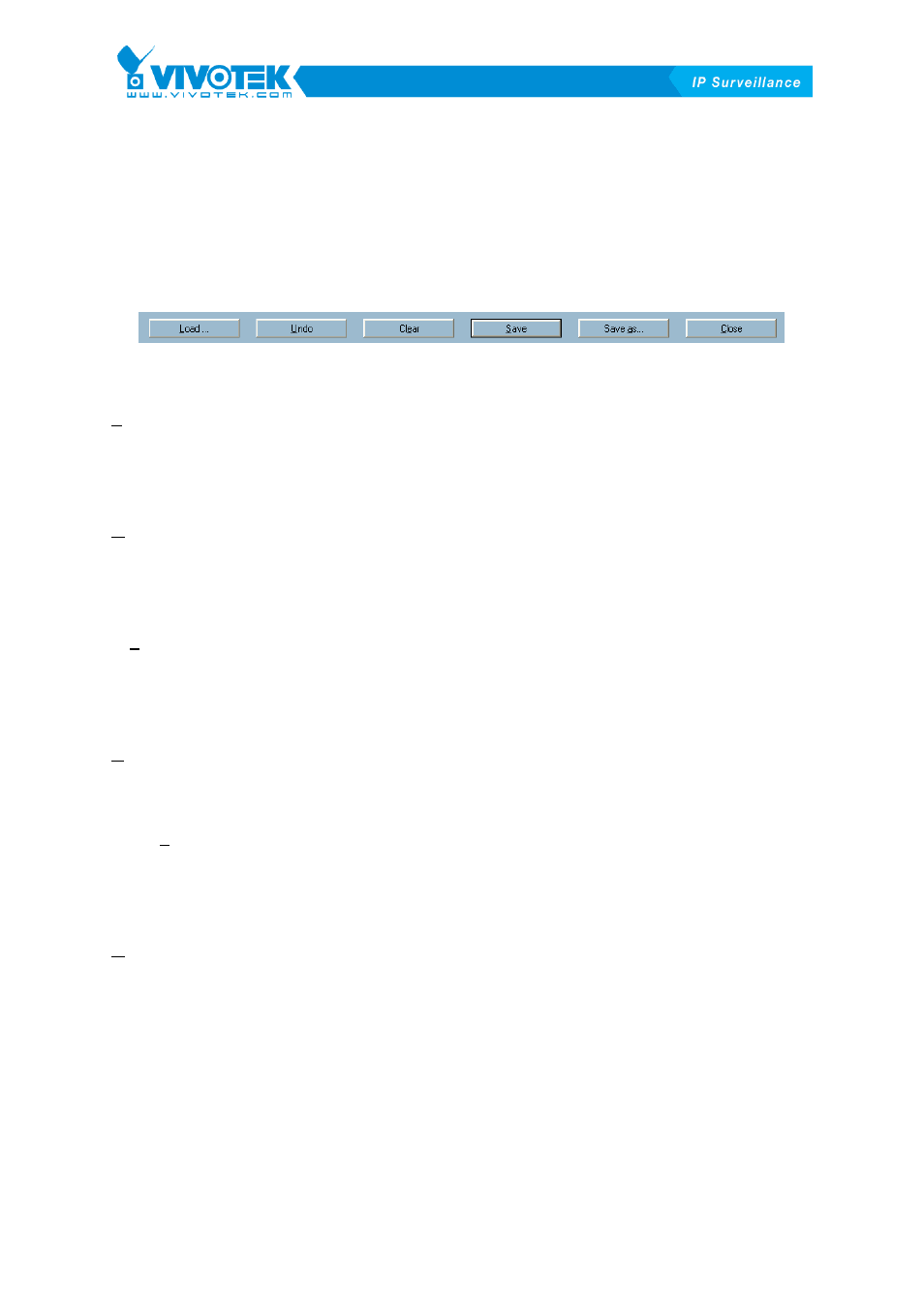

Figure 4-4 Operations for the Schedule Scheme Manipulation
Load…
This button is used for loading other pre-edited schedule schemes from the specified
directory. Note that you will need to save the current-edited settings before applying
this function. Otherwise, any editing changes will be lost.
Undo
This button is used for undoing all plotting markers for this schedule scheme from the
last save.
Clear
This button is used for clearing all plotting markers in the current-editing schedule
scheme of the selected channel.
Save
This button is used for saving the editing changes for the current schedule scheme.
Save as…
This button is used for saving the current-edited schedule scheme to another file
name instead of the default name.
Close
This button is used for closing the scheduling. Any unsaved setting will be lost.
4.3
19B
Primary Schedule
4.3.1
50B
Schedule with Time Lines
There are two time-lines of different scales: hour unit time-line and week unit time-line.
