3-21
3.2
11B
Application Layout and
Functionalities
This section demonstrates a global view of the Monitor tool, as shown in
X
Figure 3-1
X
.
Components of the Monitor tool in details are shown in the following sections.

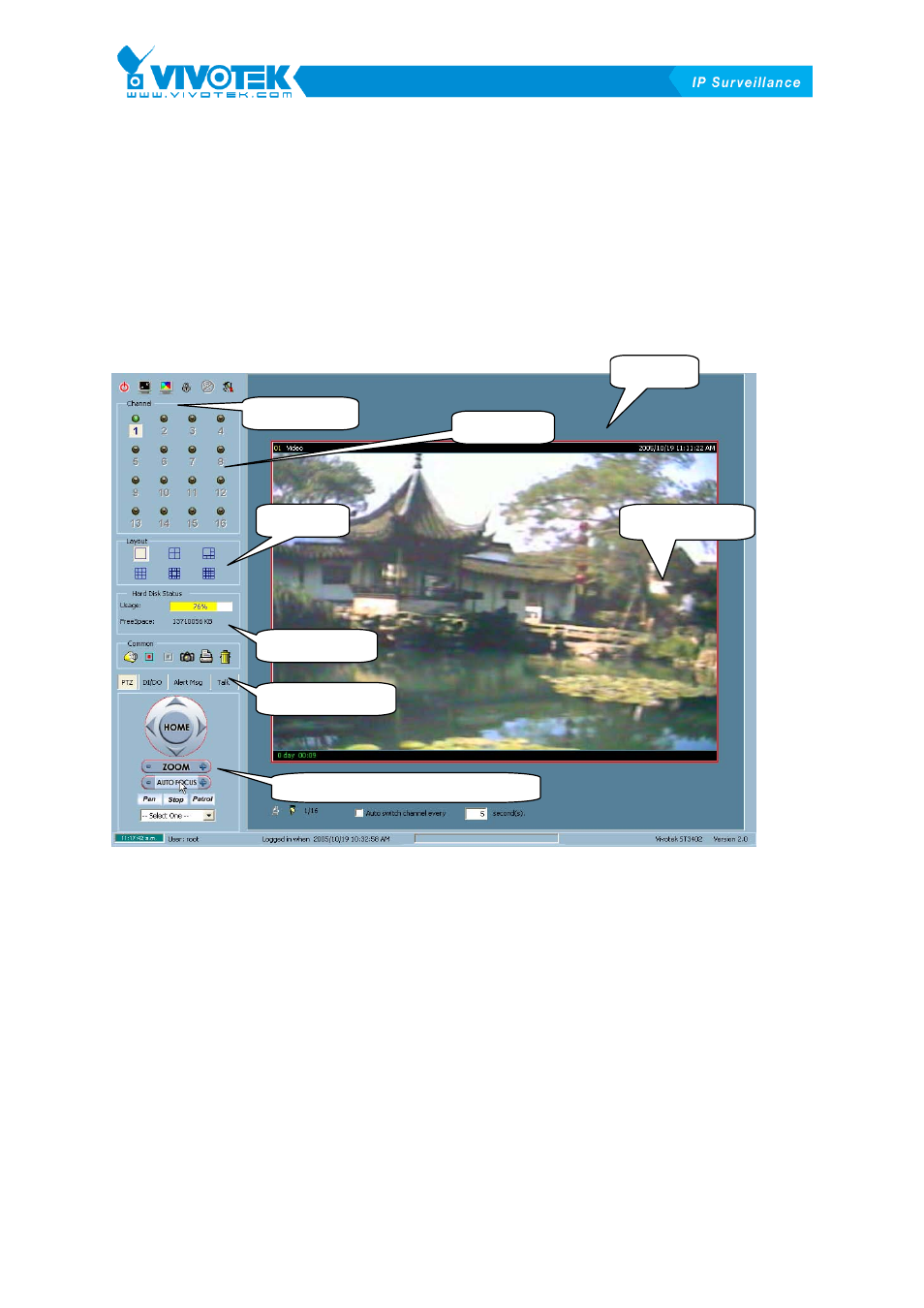

Figure 3-1 Overview of the Monitor Tool
There are several parts in the monitor tool:
9 Miscellaneous
functions:
These include application exit, minimization, full-screen display, lock, stop alert,
and configuration menu for camera configurations, global settings, display and UI
settings, scheduler settings, video/audio database backup, and the user
information of this application software. The operation tips are provided on-line
when you move the mouse cursor over each item.
9 Channel
area
This area displays the status of each channel. The information indicates the
Video area
Channel area
Layout area
Hard disk status
PTZ, DI/DO, Alert message and Talk
Misc. functions
Display frame
Common controls
