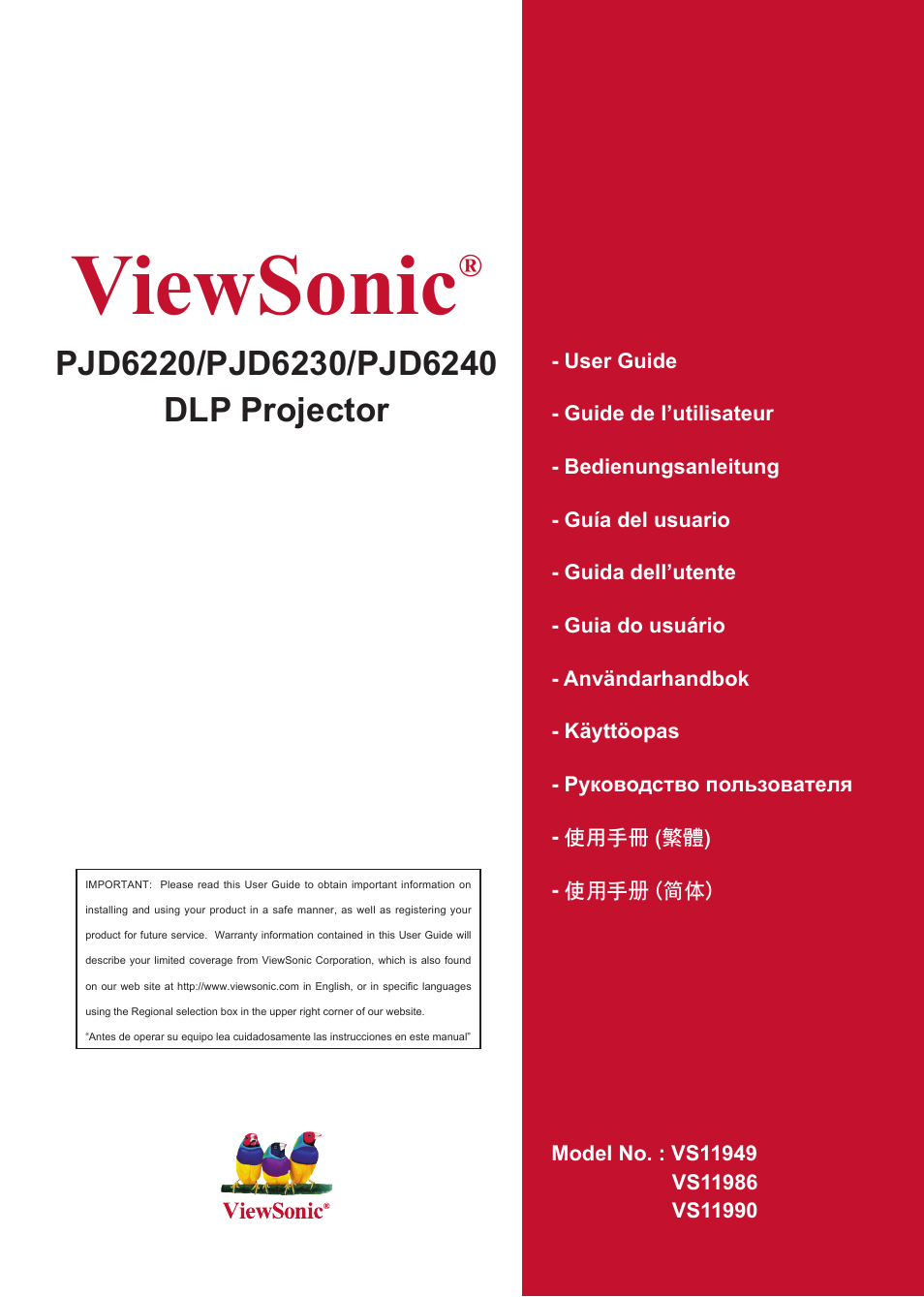

VIEWSONIC PJD6240 User Manual
Viewsonic
Table of contents
Document Outline
- PJD6220_Contents_Eng.pdf
- Introduction
- Projector with Lens Cap
- AC Power Cord
- VGA Cable (D-SUB to D-SUB)
- Quick Start Guide
- VGA - Component Adapter
- Using the Product
- Installing the Batteries
- Powering On the Projector:
- Powering Off the Projector:
- 1. Press button to turn off the projector lamp. You will see a message "Power off? Press Power again" appear on the screen.
- 2. Press button again to confirm.
- 3. Disconnect the AC power cord from the electrical outlet and the projector.
- 4. Do not turn on the projector immediately following a power off procedure.
- Adjusting the Projector
- Adjusting the Projector Height
- Adjusting the Projector Zoom and Focus
- Adjusting Projection Image Size
- Menu Operation
- 1. Press the Menu button on the control panel or the MENU button on the remote control to open the OSD menu.
- 2. When OSD is displayed, use p / q to select any feature in the main menu.
- 3. After selecting the desired main menu feature, press u to enter sub-menu for feature setting.
- 4. Adjust the settings with t / u.
- 5. Press the Menu buttonon the control panel or the MENU button on the remote control, the screen will return to the main menu.
- 6. To exit OSD, press the Menu button on the control panel or the MENU button on the remote control again. The OSD menu will close and the projector will automatically save the new settings.
- Maintenance
- Cleaning the Lens
- Cleaning the Projector Housing
- Replacing the Lamp
- 1. Turn off the projector.
- 2. If the projector is installed in a ceiling mount, remove it from the mount.
- 3. Unplug the power cord.
- 4. Loosen the screw in the side of the lamp cover and remove the cover.
- 5. Remove the screws from the lamp module, raise the handle, and lift out the module.
- 6. Insert the new lamp module into the projector and tighten the screws.
- 7. Replace the lamp cover and tighten the screw.
- 8. Turn on the projector. If the lamp does not turn on after the warm-up period, try reinstalling the lamp.
- 9. Reset the lamp hour. Refer to the “Setting” menu.
- Specifications
- Appendix
- Menu Operation
- Computer:
- Video:
- Start-up problems
- Image problems
