11
1
Non-ducted
recirculation
filter
Purchase a non-ducted recirculation filter
from your dealer. Install the filter by pressing
the two tabs on the filter down into the
special housing and rotating upward.
Installation Installation

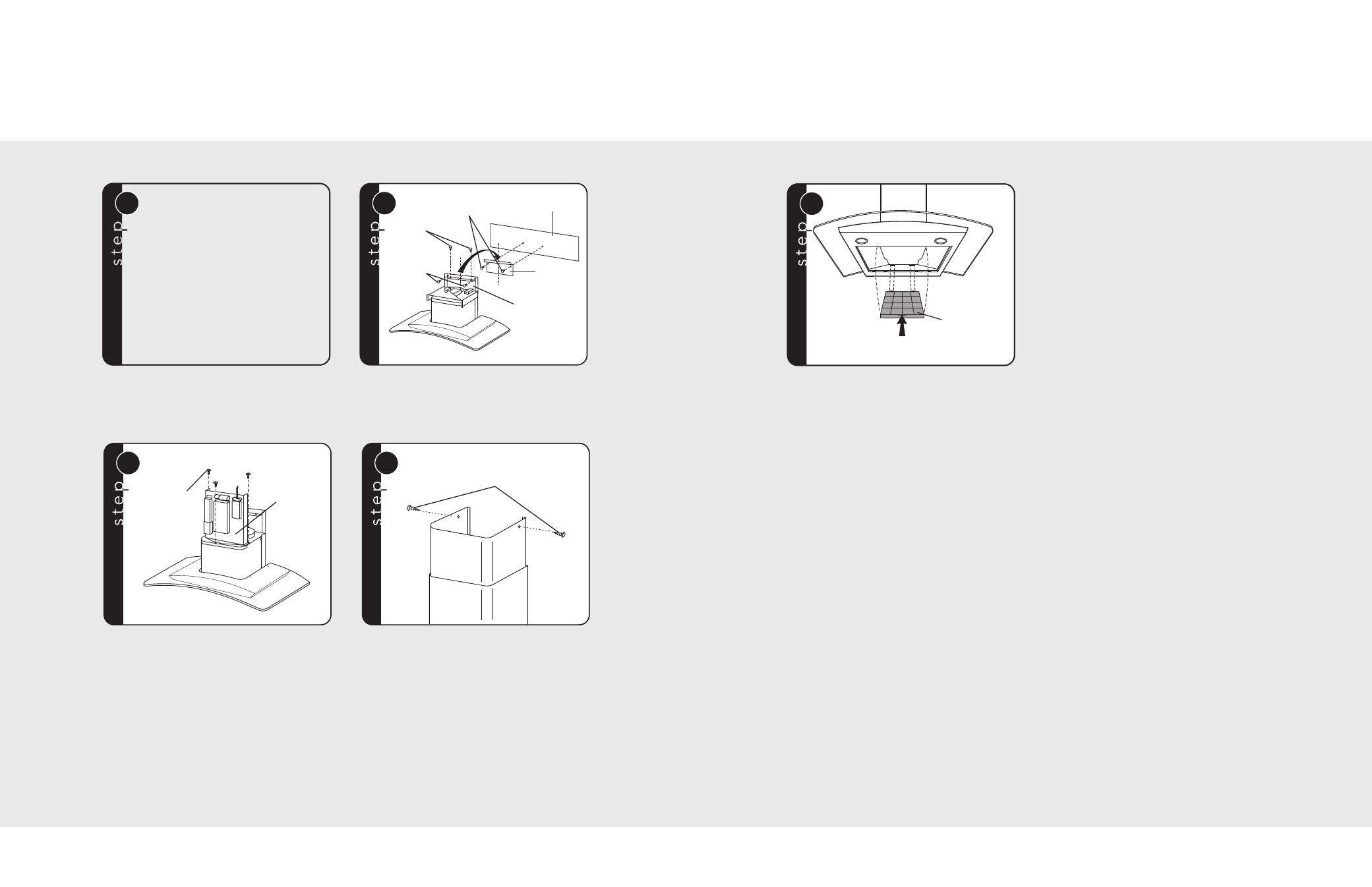

Note: At least two people will be required to mount the hood.
10
Raise the hood into its
mounting position. Plug the
power cord into the electric
wall receptacle. Tuck excess
cord behind the flue.
1 2
Mounting
screws
(4.8 x 38 mm)
Mounting
bracket
Rectangular
cutout
Wall framing
Mounting
screws
(3.9 x 9.5 mm)
Mounting
screws
(4.8 x 38 mm)
Align the rectangular opening on the back of the hood with the
wall-mounting bracket. Gently lower the hood until it securely
engages the bracket. Level the hood with two mounting screws
(3.9 x 9.5 mm) and secure with two mounting screws. Use drywall
anchors provided if wall studs or framing are not available.
3
Mounting
screws
(3.9 x 9.5 mm)
Plate of
the
electrical
system
4
3.9 x 9.5 mm
mounting screws
Mount the plate of the electrical system attaching it
with three mounting screws (3.9 x 9.5 mm).
Raise the upper flue until its holes align with holes in
the flue mounting bracket (located on ceiling). Secure
the flue with two mounting screws.
(Hood) (Non-ducted Recirculation Filter)
