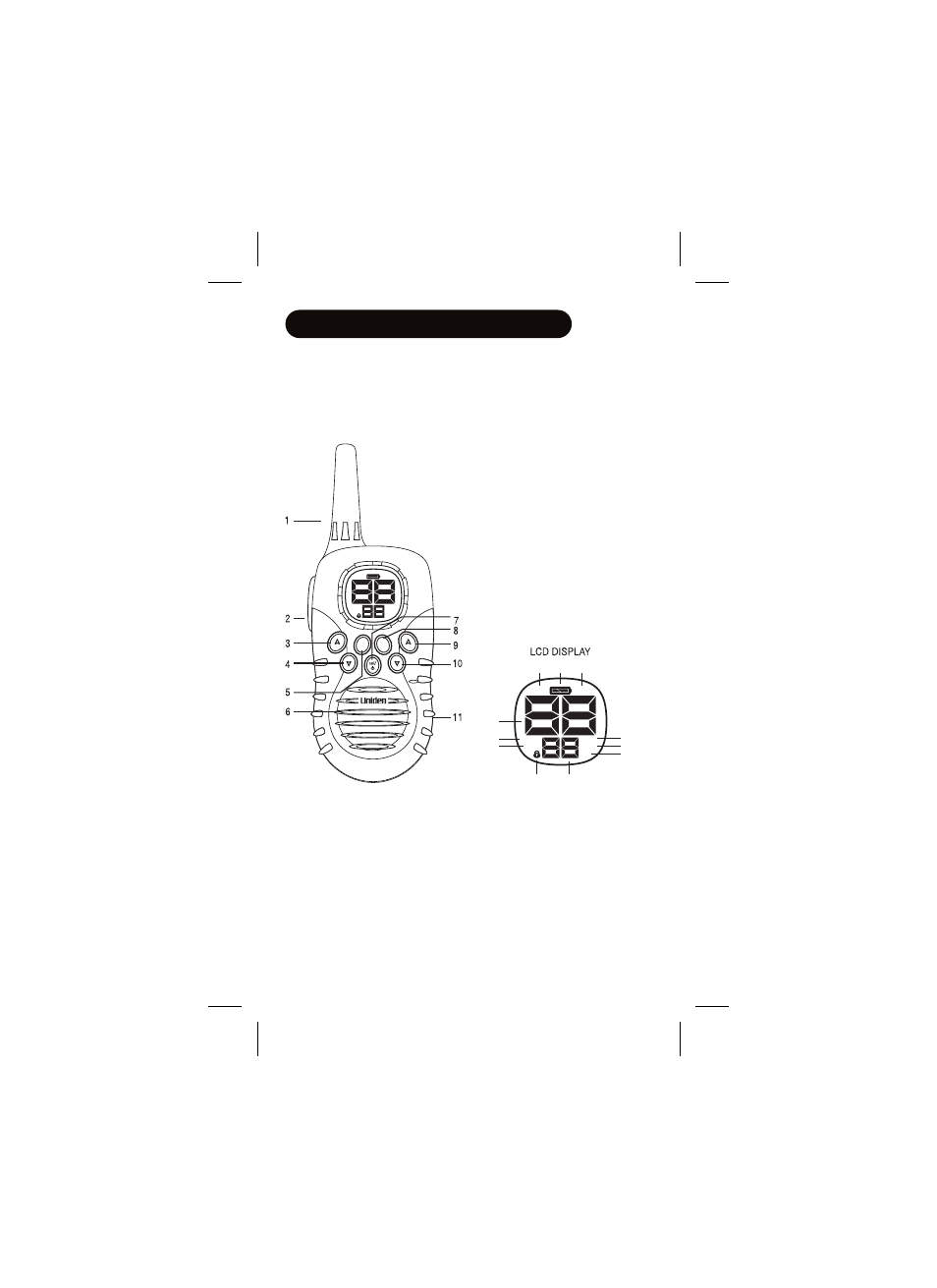

CONTROL & INDICATORS
1 Antenna
2 PTT (Push-To-Talk) Button
3 Channel/scan up Key
4 Channel/scan down Key
5 Duplex/Transmit Hi/Lo
6 Speaker
7 Power On/Off/Select Key
8 Monitor Key
9 Volume up Key
10 Volume down Key
11 Battery Compartment Door
1
INCLUDED IN YOUR PACKAGE:
!
!
!
!
!
UH039P Radio (2)
Operating Guide
Belt Clip (2)
Charging Cradle with
AC Adaptor
NiMH Battery Pack (2)
12 Channel Indicator
13 Receive Indicator
14
15
Transmit Indicator
Battery Indicator
16 Scan Indicator
17 Vox on Indicator
18 Key lock setting Indicator
19 Volume setting Indicator
20 Duplex Indicator
21 TX Hi Indicator
22 CTCSS Channel Indicator
RX TX
VOL
DUP
HI
SCAN
VOX
12
17
22
16
18
21
20
19
14 13 15
volume channel/
scan
dup mon
!
!
!
VOX Earset
VOX Headset
Carry Case
OPTIONAL ACCESSORIES
RX TX
VOL
DUP
HI
SCAN
VOX
hi/lo
