9

Operation

(continued)

To invoke the OSD:

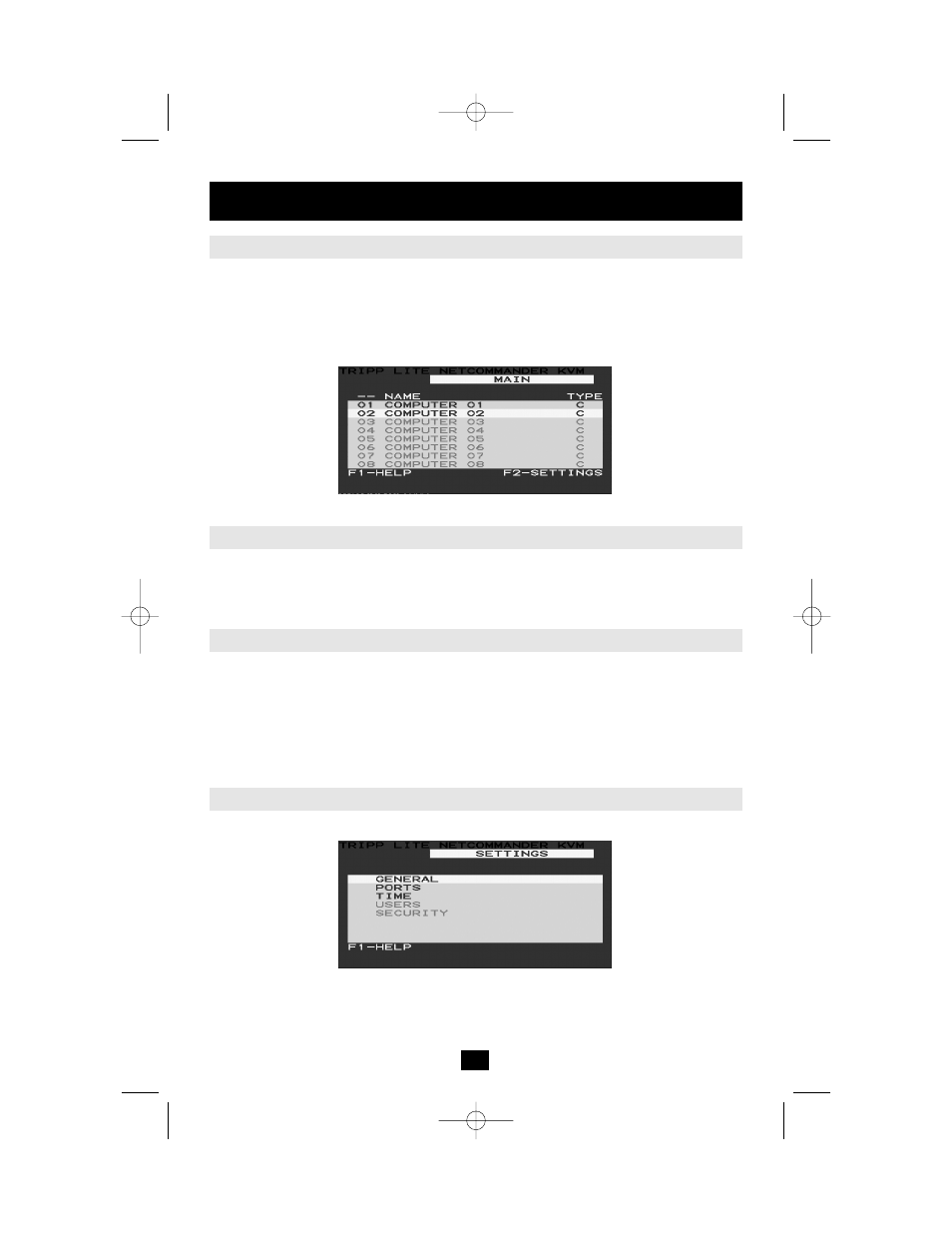

Press and release the [Shift] key twice. The OSD Main window appears. See Figure 9. Lines
with blue text show active computers. Lines with grey text show inactive computers.

The Type column indicates whether a computer “C” or another KVM switch “S” is
connected to the port.

Figure 9 The OSD Main Window

Navigating the OSD

To move up and down, use the [ ] and [ ] arrow keys.

To jump from one column to the next (when relevant), use the [Tab] key.

To exit the OSD or to return to the previous OSD window, press [Esc].

Selecting a Computer

To select a computer:

1. Move to the desired computer line.

2. Press [Enter]. The selected computer will be accessed. A confirmation label appears to

show which computer is selected.

Note: While the OSD is activated, you cannot use the front panel “Select” buttons or the
keyboard hotkeys to connect to a computer.

OSD Settings (F2)

Press [F2] to open the OSD Settings window (see Figure 10).

Figure 10 The Settings Window

Note: If the OSD is password protected, only the Administrator will be able to get access to
the F2 settings window by using the appropriate password.

On-Screen Display
