5.7.6 Ping from WAN

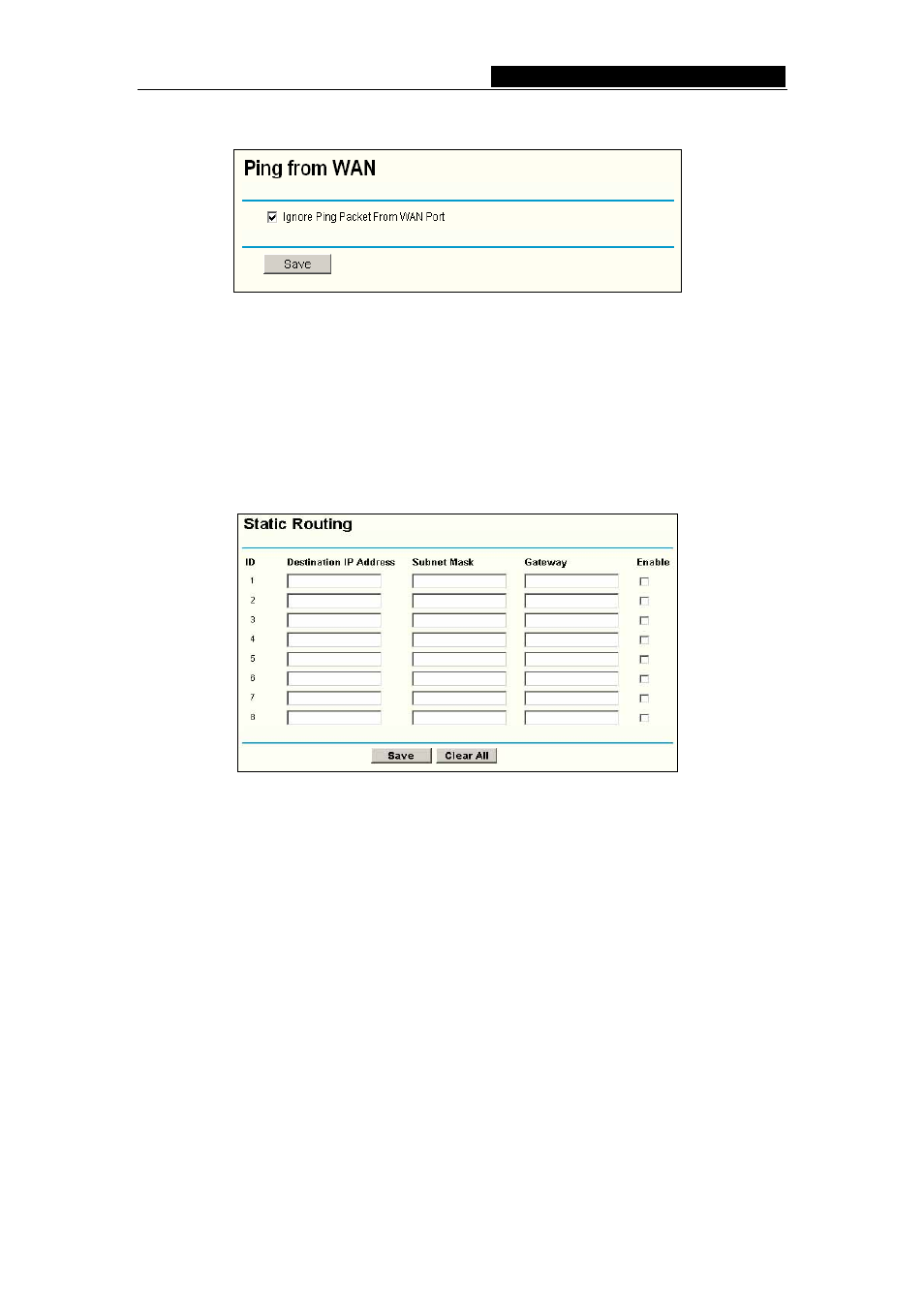

Figure 5-27 Ping from WAN
Ignore Ping Packet from WAN Port -
Enable or Disable ignore ping packet from WAN
port. If enabled, the ping packet from the Internet cannot access the router.
5.8 Static Routing
A static route is a pre-determined path that network information must travel to reach a
specific host or network. To add or delete a route, work in the area under the Static
Routing page (shown in figure 5-28).
Figure 5-28 Static Routing
To add static routing entries:
1. Enter the following data:
Destination IP Address
- The Destination IP Address is the address of the
network or host that you want to assign to a static route.
Subnet Mask
- The Subnet Mask determines which portion of an IP address is the
network portion, and which portion is the host portion.
Gateway
- This is the IP address of the gateway device that allows for contact
between the router and the network or host.
2. Click the Enable checkbox.
3. Repeat steps 1-2 until you are finished.
4. If you are finished. Click the Save button to save it.
To modify an existing entry:
1. Modify the entry’s Destination IP Address, Subnet Mask and Gateway.
2. Click
the
Save
button.
