Model BTW24
Electrical Specifications

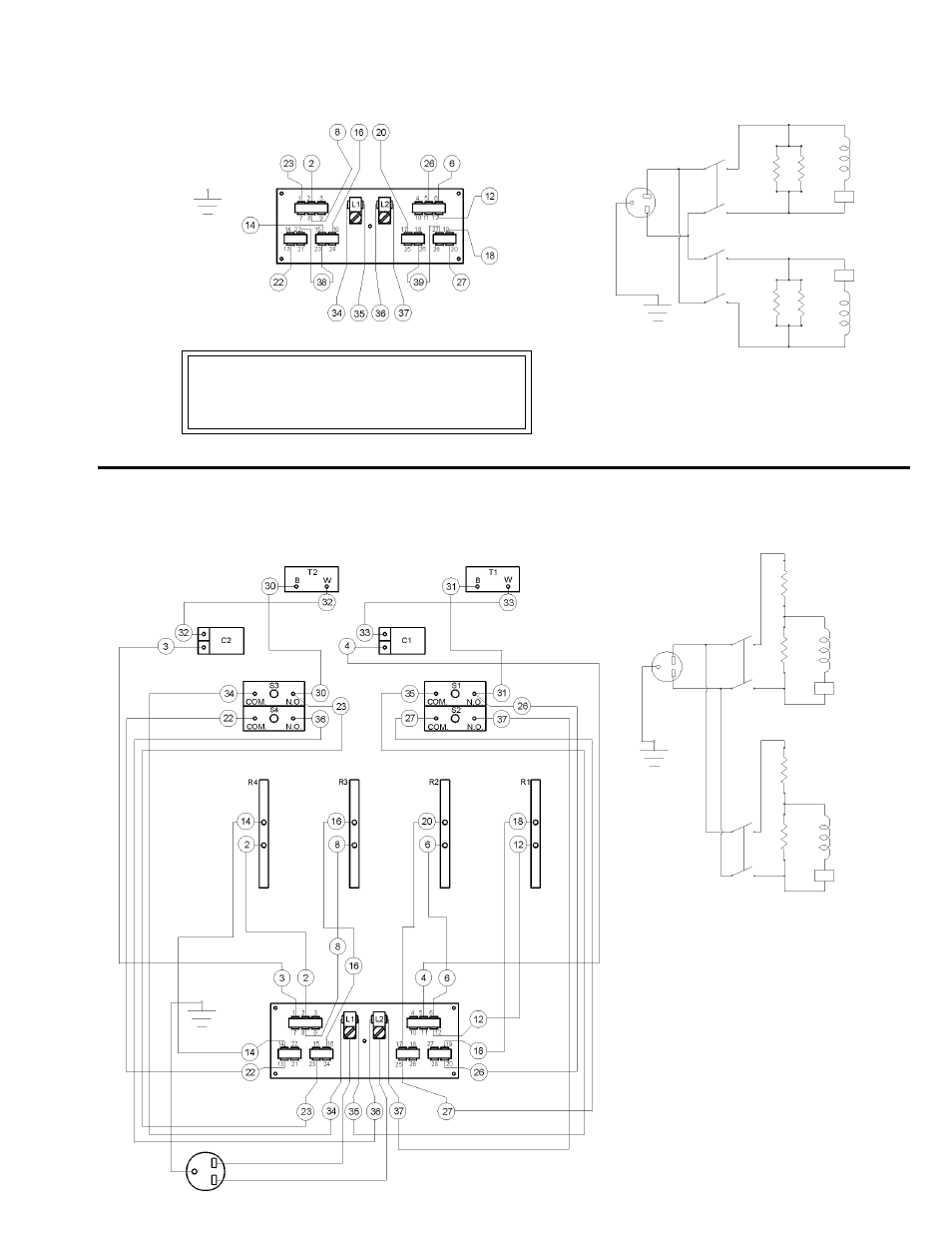

Schematic Wiring Diagram
SWITCH
TIMER
ELEMENTS
SOLENOID
TIMER
ELEMENTS
SOLENOID
SWITCH
Electrical Specifications
Schematic Wiring Diagram - Terminal Board
Model BTW09
TIMER
SOLENOID
MICROSWITCH
ELEMENTS
TERMINAL BOARD
TIMER
SOLENOID
MICROSWITCH
SWITCH
TIMER
SOLENOID
TIMER
ELEMENTS
SOLENOID
ELEMENTS
SWITCH
• 120V, 50/60 Hz, 1 Ph, 1.8kW,15.0A
• Plug type: NEMA 5-20P
• 208V, 50/60 Hz, 1 Ph, 1.6kW, 7.7A OR
• 240V, 50/60 Hz, 1 Ph, 1.8kW, 7.5A
• Plug type: NEMA 6-15P
NOTE: All other wiring connections match
the BTW24 wiring diagram at the bottom of
this page.
