Toastmaster TP430 - Manual

Foodservice Equipment
Job Item#
Toastmaster ® 10 Sunnen Dr. St. Louis, MO 63143• www.toastmastercorp.com
Toll Free: 1-800-264-7827 • Telephone: 1-314-781-2777 • Toll Free Fax: 1-800-264-6666 • Fax: 314-781-3636

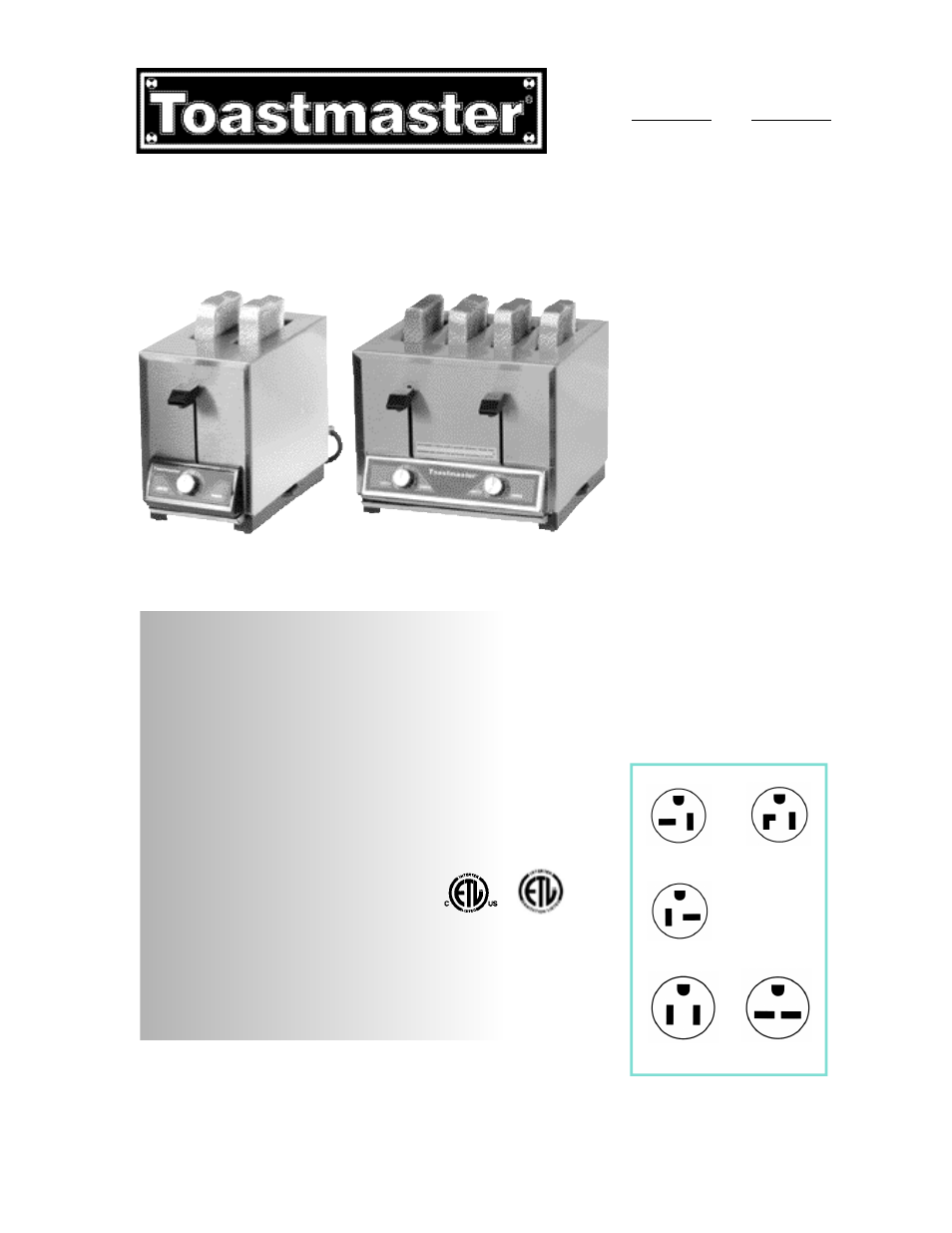

Models shown may ship UPS
TP209/224
TP409/424/430
Solid-State Pop-Up Toasters
Bread & Texas Toast Toasters
TP209, TP224, TP409, TP424, TP430
Application:
Commercial electronic pop-up food
toasters are designed to uniformly
toast bread, frozen waffles and many
other foods consistently.
General Information:
Commercial two and four slot pop-up
type bread toaster has toasting slots
in the top.
Each slot is:
1-1/8” (28.6mm) Wide x
5-1/4” (133mm) Long
Each toasting chamber is equipped
with oven guide wires, and lowering
rack.
Model TP Series Toasters Feature:
•
Solid state timer control(s)
• Electrical heating elements that
provide uniform heat and even
toasting
• Operating lever(s) and color
selection knob(s)
• Removable crumb tray
Construction:
Construction is of formed and
welded sheet steel. Finish is brushed
stainless steel with a bright anneal
(mirrored) finish on the front panel. A
front pullout crumb tray is provided
for easy cleaning.
Electrical:
Models are single phase. Toasters
are equipped with a two pole switch
that energizes the elements when
the operating lever is depressed.
Toasters are furnished with factory
installed 36” cord with NEMA plug.
Heating:
Insulated ceramic etched foil
heaters are installed on both sides
of each toasting chamber.
Controls:
Each two-slot section is controlled
by a lever operated mechanism, it is
equipped with color selector knob
coupled with solid state controls
having temperature and voltage
compensators. When operating
lever is depressed, bread racks are
lowered, and elements are
energized simultaneously. At the
end of the toasting cycle, elements
are de-energized, and bread racks
are automatically raised by a coil
spring
Capacity:
The two slot toaster will toast 2
slices of bread per load; and up to
150 slices per hour.
Warranty:
Warranted for one year covering
parts and labor. Call factory for
warranty authorization.
NEMA PLUGS
NEMA
5-20P
NEMA
6-20P
NEMA
5-15P
NEMA
6-15P
NEMA
5-30P
