Toastmaster TP224 EN - Manual (Page 4)

4
Model TP224
Model TP209

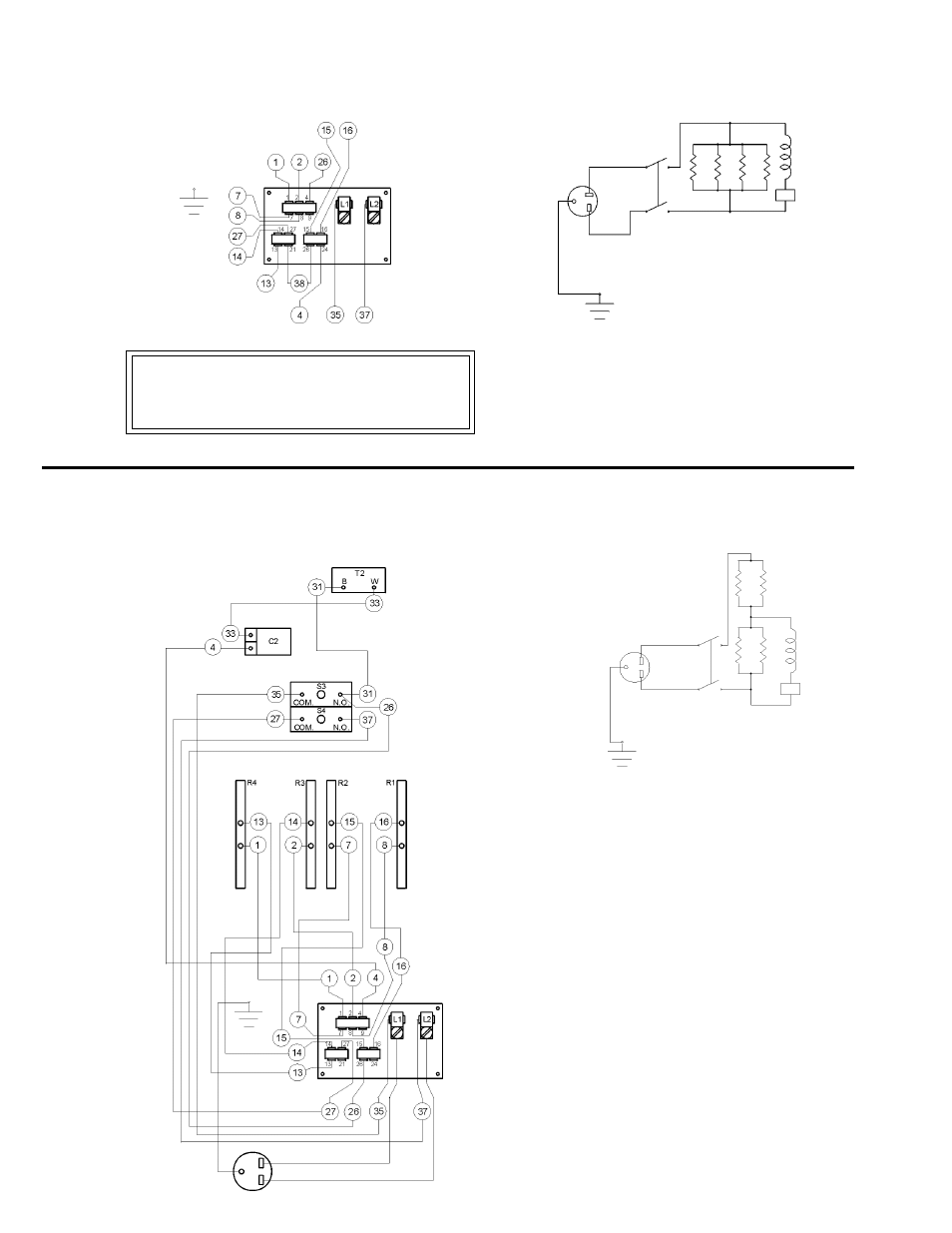

Schematic Wiring Diagram
Electrical Specifications
Wiring Diagram - Terminal Board
• 208V, 50/60 Hz, 1 Ph, 1.0kW, 4.8A OR
• 240V, 50/60 Hz, 1 Ph, 1.3kW, 5.3A
• Plug type: NEMA 6-15P
• 120V, 50/60 Hz, 1 Ph, 1.1kW, 9.0A
• Plug type: NEMA 5-15P
Electrical Specifications
TIMER
SOLENOID
MICROSWITCH
ELEMENTS
TERMINAL
BOARD
SWITCH
TIMER
ELEMENTS
SOLENOID
SWITCH
TIMER
ELEMENTS
SOLENOID
NOTE: All other wiring connections match
the TP224 wiring diagram at the bottom of
this page.
