5
Model TP424:
• 208V, 50/60 Hz, 1 Ph, 2.0kW, 9.6A OR
• 240V, 50/60 Hz, 1 Ph, 2.6kW, 10.8A
• Plug type: NEMA 6-15P
Model TP430:
• 208V (Canada), 50/60 Hz, 1 Ph, 2.6kW, 12.5A
• Plug type: NEMA 6-20P
Models TP424 & TP430
• 120V, 50/60 Hz, 1 Ph, 2.2kW, 18.3A
• Plug type: NEMA 5-20P (USA) OR NEMA 5-30P
(Canada)
Electrical Specifications

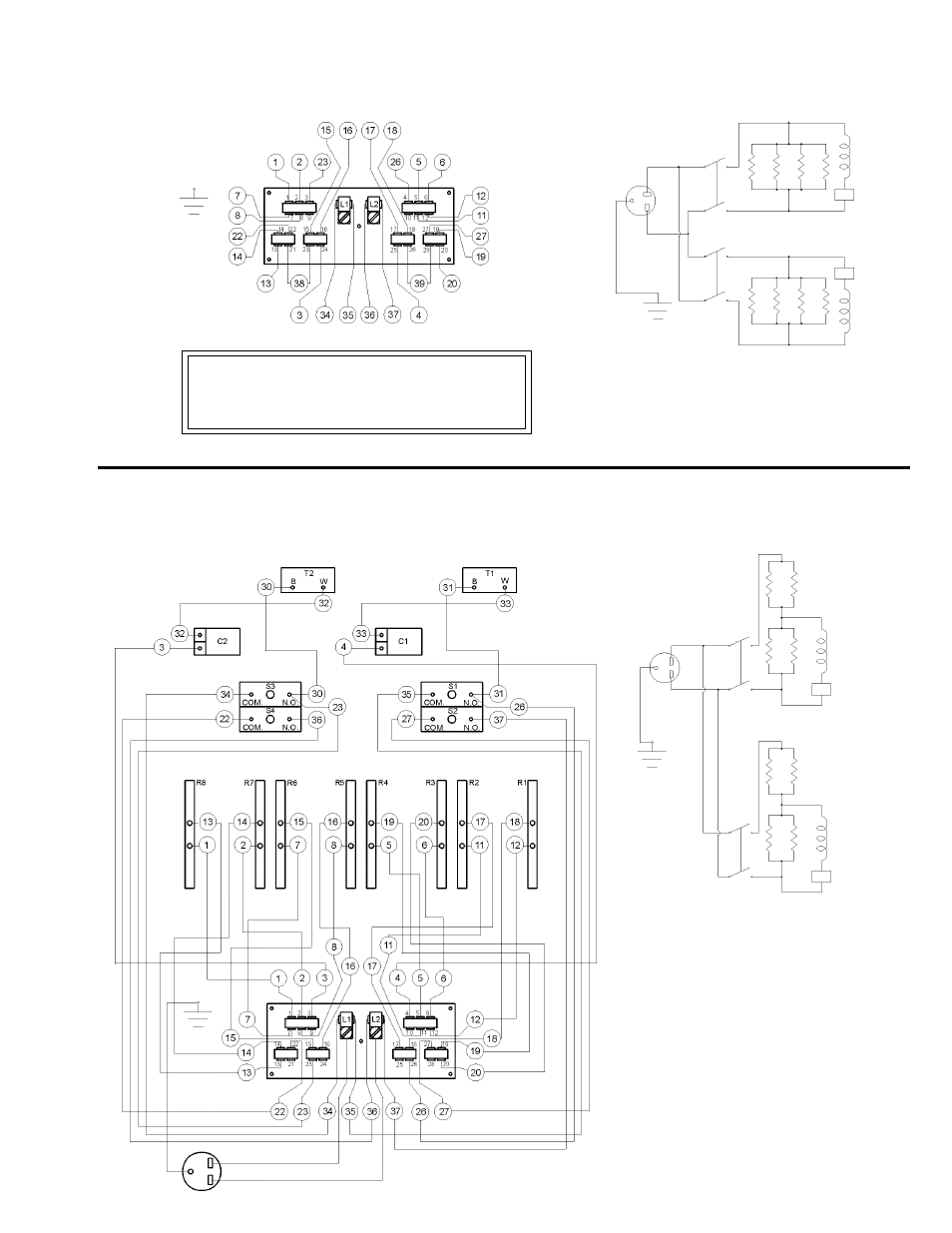

Schematic Wiring Diagram
SWITCH
TIMER
ELEMENTS
SOLENOID
TIMER
ELEMENTS
SOLENOID
SWITCH
Electrical Specifications
Schematic Wiring Diagram - Terminal Board
Model TP409
TIMER
SOLENOID
MICROSWITCH
ELEMENTS
TERMINAL BOARD
TIMER
SOLENOID
MICROSWITCH
SWITCH
TIMER
SOLENOID
TIMER
ELEMENTS
SOLENOID
ELEMENTS
SWITCH
NOTE: All other wiring connections match
the TP424/430 wiring diagram at the bottom
of this page.
