78
Make sure the lower lip of the
overhead clip is oriented towards the
opposite side of the CPU fan (see
Figure I left).

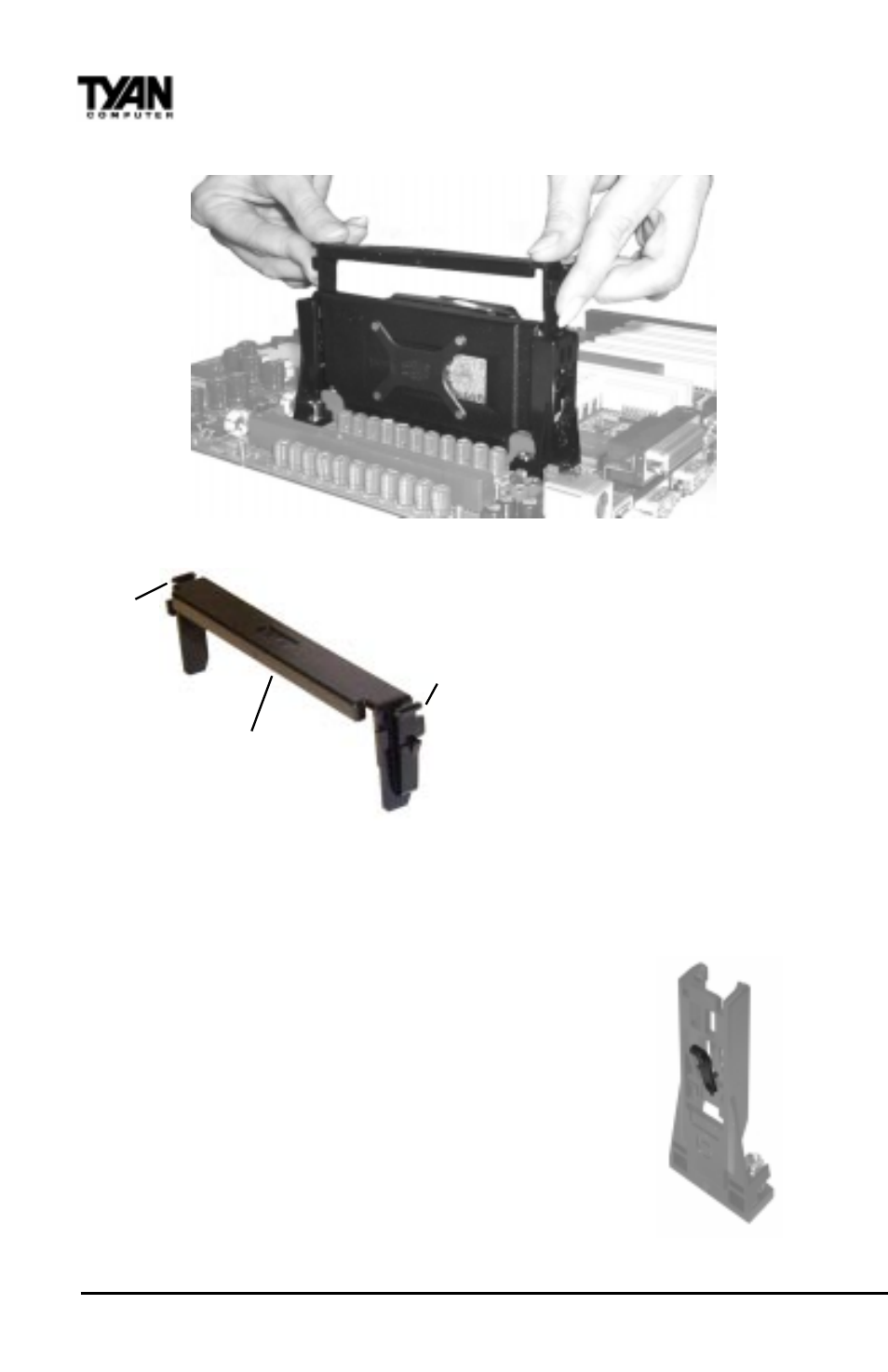

Removing CPU - Removal of the CPU is basically the
reverse order of the installation steps.
First remove the overhead clip. You need to push BOTH
side lock tabs (see Figure I above) towards the center of
the CPU in order to unlock it from the side braces. After
removing the overhead clip, you need to release the CPU
from the braces one side at a time. Press the center
“release tab” of one of the side braces (see Figure J
right) while gently pulling that side of the CPU out of its
slot. Repeat the procedure for the other side brace.
When both ends of the CPU is loose from the side
braces and the slot, you will be able to remove it from the
motherboard.
Figure H*
*The pictures shown are used to illustrate a
concept and may not represent your motherboard
Figure J
Appendix 2
Retention Module installation
Tab
Tab
Lowered lip
