Appendix 2
Retention Module installation

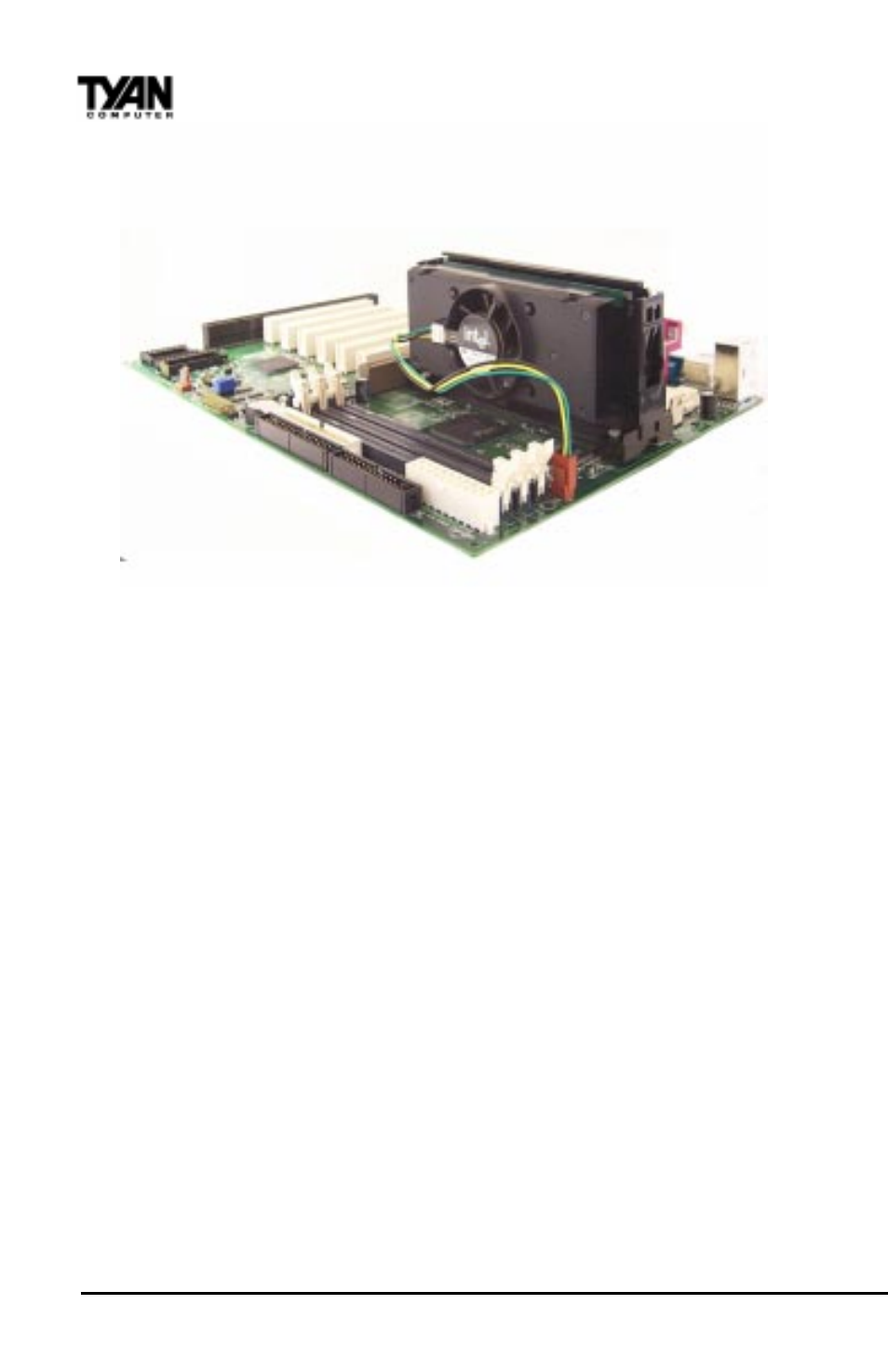

Figure D above shows a properly installed SECC2 CPU using the retention
module. Note the direction of the CPU fan and the way in which the cable is
connected.
Remove CPU
Release the CPU from the retention module by gently bending the two ends of
the retention module away from the CPU. With the module out of the way, pull
the CPU out of the slot This may require careful firm tugs to pull the CPU out
of its slot.
.
Figure D
