Hitch assembly – Tiger Mowers FLX10 User Manual
Page 4

FLX15/10 09/05
6-4
Ref.
Part No.
Description
Qty.
1
A101-110
Hitch frame
1
2
A101-145
Pin, hitch frame
1
3
256-011
Washer, 1/2"
4
4
250-057
Bolt, 1/2" x 2" UNC
1
5
270-007
Locknut, 1/2" UNC
4
6
256-0533
Machine bushing, 2" x 3" x 10ga
1
7
A101-171
Hitch Swivel - *sold with 774-012
1
774-012
Weld sleeve - *sold with A101-171
1
8
A101-112
Sleeve sub-assembly
1
9
250-107
Bolt, 3/4" x 6" UNC
2
10
250-127
Bolt, 1" x 2-1/2" UNC
1
11
270-002
Locknut, 1" UNC
1
12
256-0011
Washer, 1" x 1/4" Thick
1
13
S000-010
Safety chain - *attachment link shown only
1
14
C502-107
Hitch Clevis
1
15
270-001
Locknut, 3/4" UNC
2
16
262-004
Roll pin, 3/8" x 3"
1
17
232-500
Hitch jack, 10" side wind
1
18
362-011
Tension bushing, 1" x 1-1/4" x 1-1/2"
1
19
273-006
Grease nipple, self tap
2
20
CS01-134
Pin, 1" x 4 5/8", 4 11/16" U.L.
1
21
256-001
Washer, 1" plated SAE
1
22
262-006
Roll Pin, 3/8" x 2" Plated
1
23
250-060
Bolt, 1/2" x 1-3/4" UNC Gr 5 Plated
1
24
A101-364
Mount, PTO Stand
1
25
C000-132
Stand, Power Shaft
1
26
250-059
Bolt, 1/2" x 1-3/4" UNC Gr 5 Plated
2
27
229-010
Compression Spring, 1/2" x 1.5" LG
1
28
271-008
Cotter Pin, 1/8" x 1 Plated
1

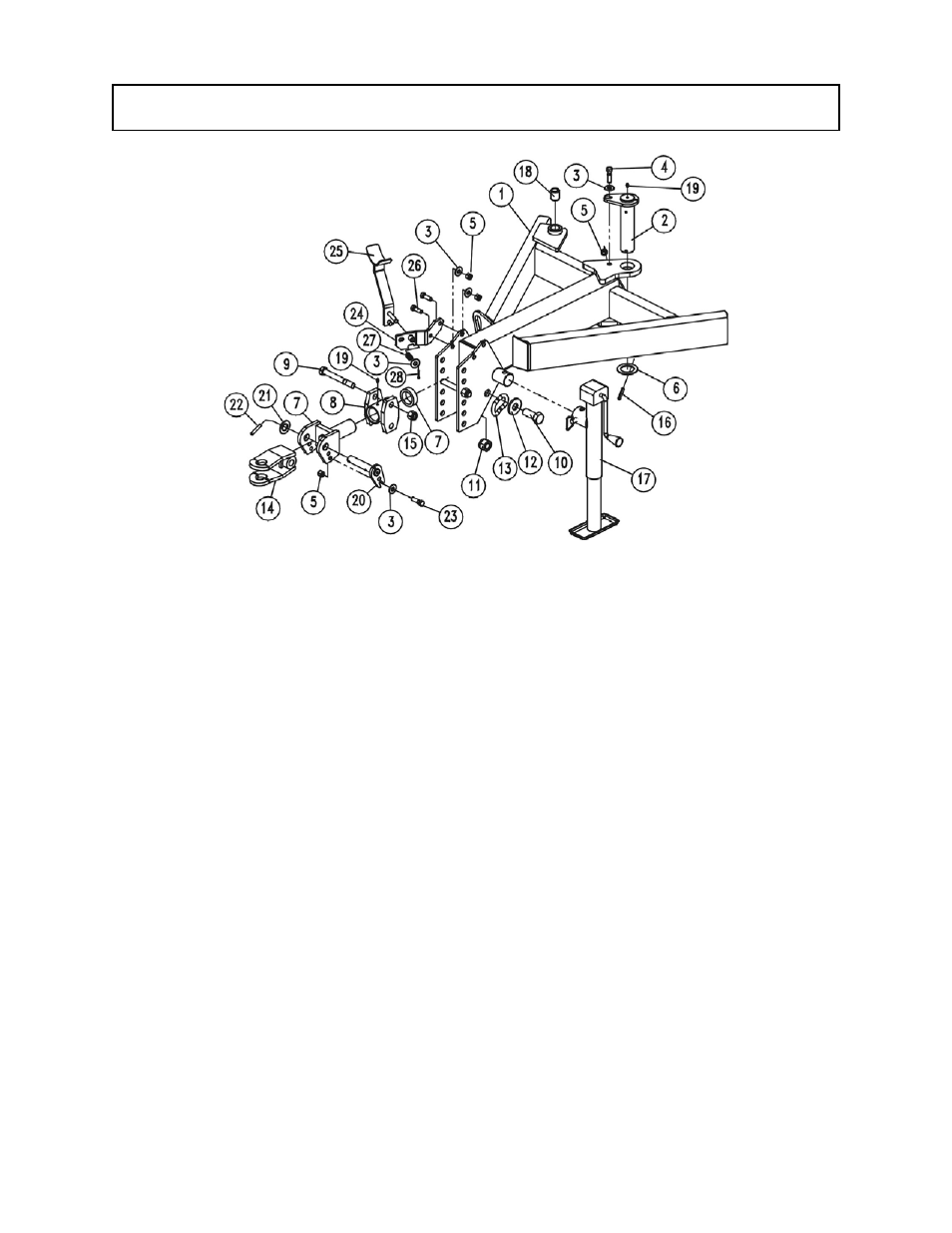

HITCH ASSEMBLY
