Tiger Mowers FLX10 - Manual (Page 28)

FLX15/10 09/05 6-28
340-844 Location: FLX15/ FLX10 Arm Gearbox to Bearing

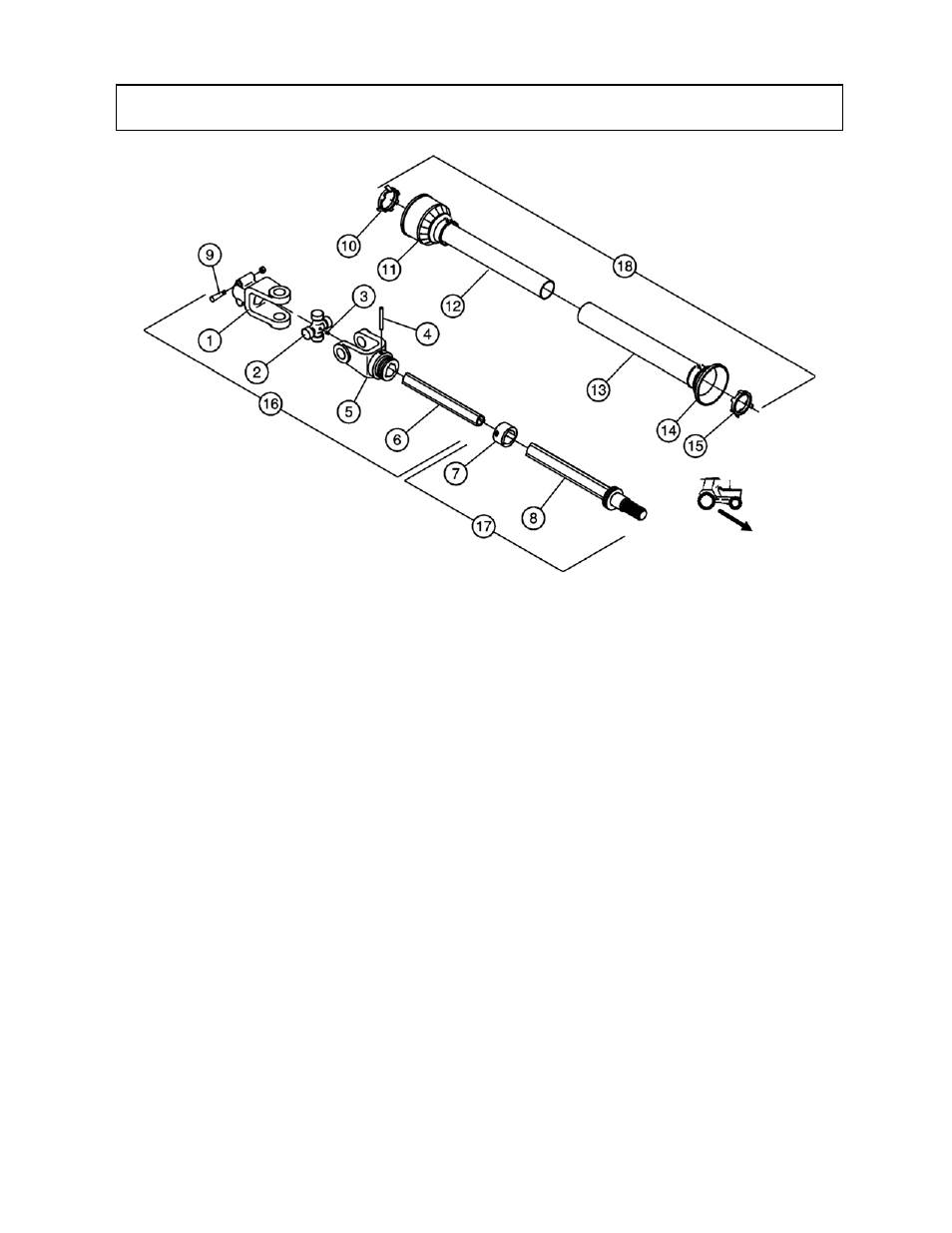

Ref. Part No. Description Qty.
1 341-0863 Yoke 1
2 341-645 Cross journal c/w snap rings 1
3 341-603 Grease nipple, 45 o 1
4 341-8017 Flexible pin 1
5 341-0805 Inner yoke 1
6 341-8155 Inner tube 1
7 341-0815 Ring nut 1
8 341-8154 Outer tube, 1-3/4 Z20 1
9 341-802 Tapered pin kit 1
10 341-642 Shield bearing, inner shield 1
11 341-8008 Inner cone set 1
12 341-8152 Inner shield 1
13 341-8153 Outer shield 1
14 341-8156 Outer cone set 1
15 341-637 Shield bearing, outer shield 1
16 341-8170 Inner half c/w shields 1
17 341-8169 Outer half c/w shields 1
18 341-8171 Complete shield set 1
JACK SHAFT,1-3/4 Z20 SIZE 8 (340-844)
