Tiger Mowers FLX10 - Manual (Page 12)

FLX15/10 09/05 6-12
Ref. Part No. Description Qty.
1 A101-104 Castor frame 1
2 256-011 Washer, 1/2" 3
3 250-057 Bolt, 1/2" x 2" UNC 1
4 273-006 Grease nipple, self tap 1
5 A101-144 Pin, castor frame 1
6 A101-146 Pin, castor link 2
7 273-011 Grease nipple, 90° self tap 2
8 250-063 Bolt, 1/2" x 1" UNC 2
9 255-009 Lock washer, 1/2" 2
10 256-001 Washer, 1" SAE type 2
11 262-006 Roll pin, 3/8" x 2" 2
12 362-011 Tension bushing, 1" x 1-1/4" x 1-1/2" long 1
13 262-005 Roll pin, 3/8" x 2-1/2" 1
14 256-0552 Machine bushing, 1-1/2" x 2-1/4" x 10ga. 1
15 270-007 Locknut, 1/2" UNC 1
16 A101-125 Castor link 1

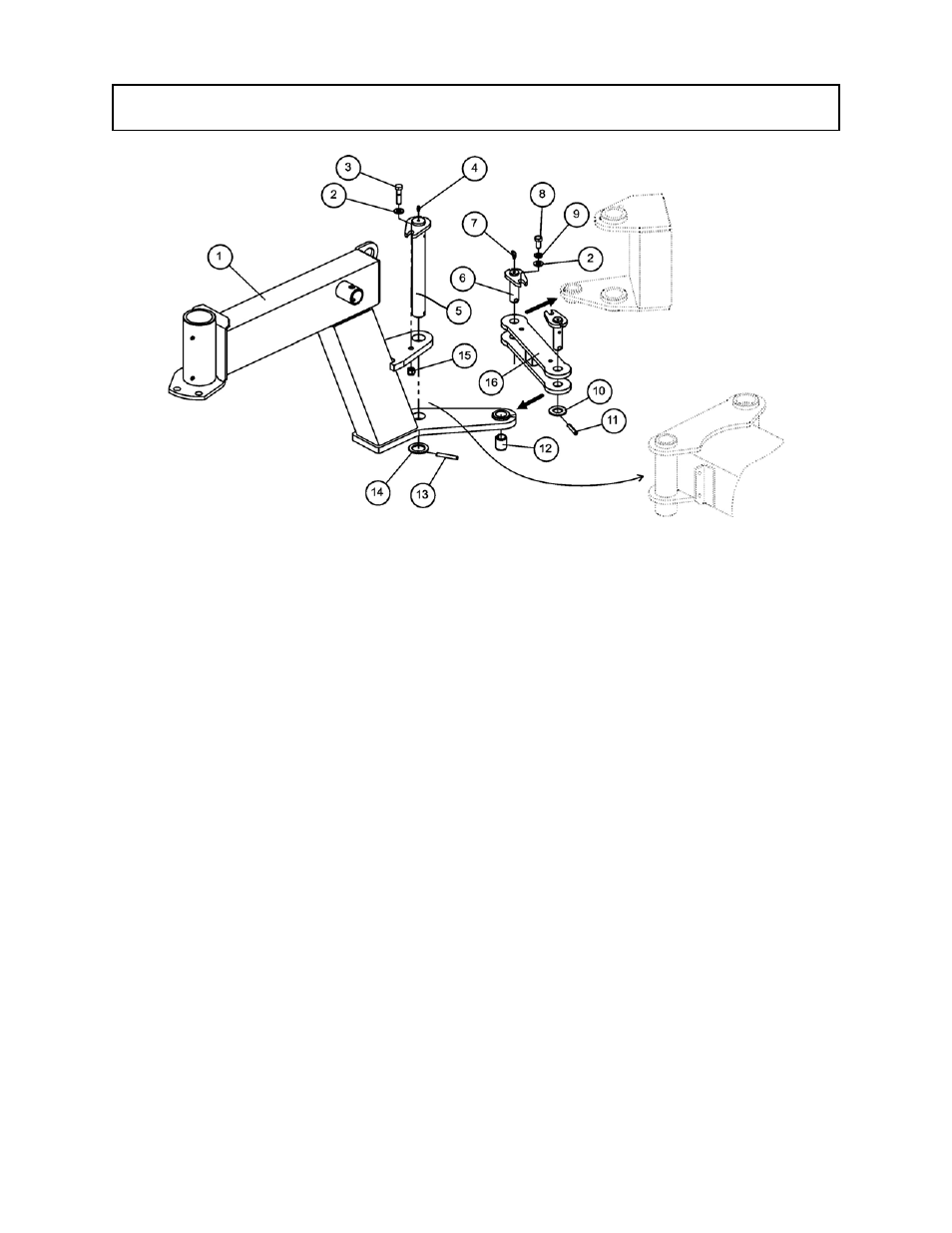

CASTOR FRAME ASSEMBLY (FLX15 ONLY)
