Tiger Mowers FLX10 User Manual
Page 15
FLX15/10 09/05
6-15
Ref.
Part No.
Description
Qty.
1
232-651
Gear cover
1
2
232-652
Bushing
2
3
232-653
Gear
2
4
232-654
Bolt, 1/4" x 3" UNC
2
5
232-655
Nut, 1/4" UNC
2
6
232-656
Pin, long
1
7
232-657
Handle
1
8
232-658
Washer, 1/2" x 1-1/2"
1
9
232-659
Lock pin & chain
1
10
232-660
Pin, long
1
11
232-661
Main body
1
12
232-662
Washer, 1/2" x 1-5/16" x 10ga
1
13
232-663
Washer, 1/2" x 1-1/16"
2
14
232-664
Felt bushing
1
15
232-665
Bearing
1
16
232-666
Washer, 1/2" x 1-1/16" x 7ga
1
17
232-667
Acme screw
1
18
232-668
Stand body
1
19
232-669
Acme nut
1

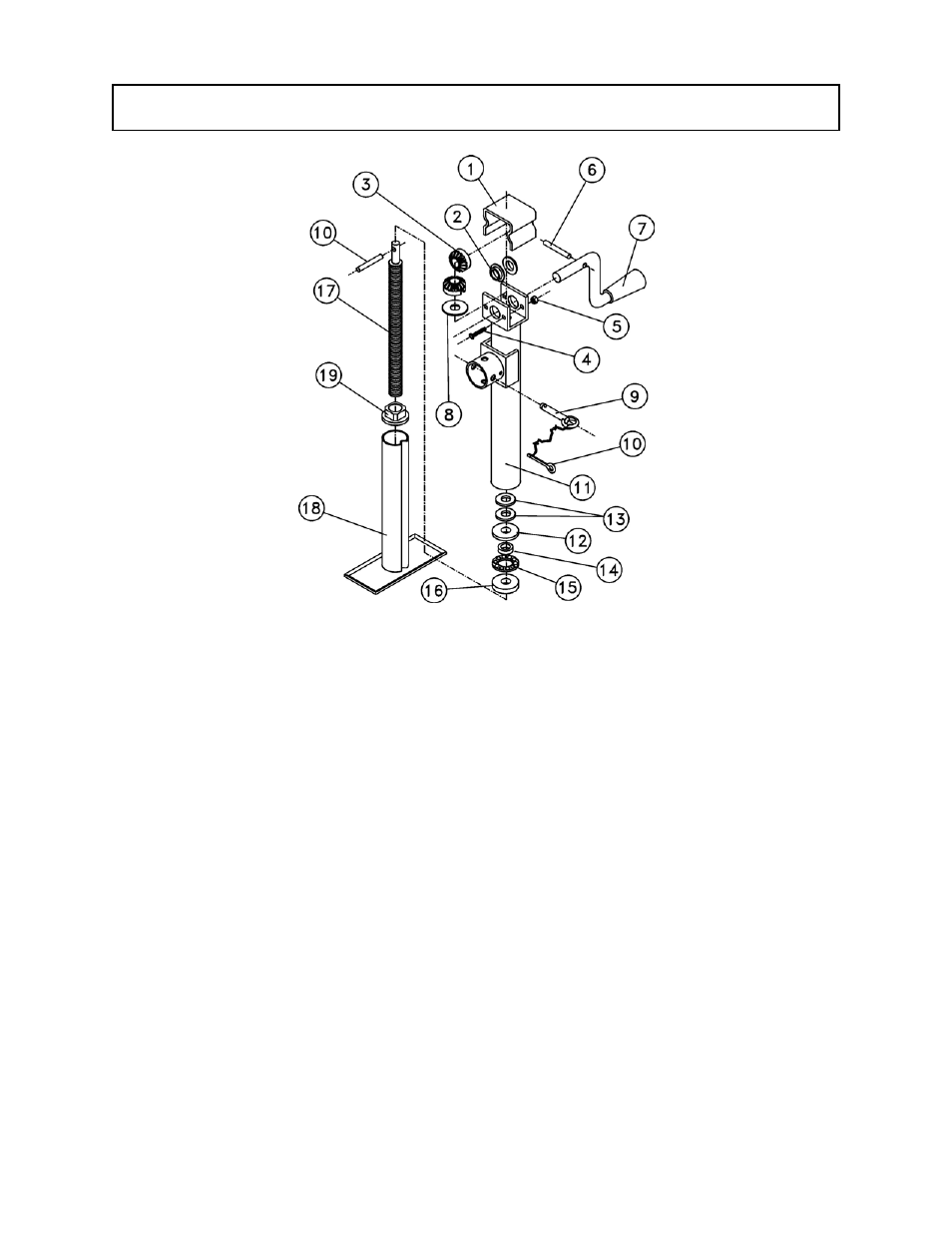

HITCH JACK, 10" SIDE WIND (232-500)
