FLX15/10 09/05 6-14
Ref. Part No. Description Qty.
1 206-003 Hub, H618 complete, includes ref #2-11 1
2 207-018 Seal 1
3 207-013 Bearing 1
4 207-014 Race 1
5 273-002 Grease nipple, 45° 1/8" NPT 1
6 207-016 Race 1
7 207-015 Bearing 1
8 209-010 Washer, 1" 1
9 209-011 Castle nut, 1"-14 UNS 1
10 271-005 Cotter pin, 3/16" 1
11 207-017 Dust cap 1
12 257-032 Nut, 3/8" UNC 10
13 255-013 Lock washer, 3/8" 10
14 201-016 Rim half 2
15 210-011 Tire only 1
16 211-013 Tube 1
17 250-018 Bolt, 3/8" x 1" UNC 10
18 210-178 Aircraft tire, 31x 13 x 12 x 20 ply, complete
includes ref #12-17
1
19 255-007 Lock Washer, 9/16" 6
20 250-073 Bolt, 9/16" x 1-1/2" UNF 6
21 207-011 Wheel Bolt, 9/16" x 1-3/4" UNF 6
NOTE: IF RIM HOLES ARE TAPERED USE WHEEL BOLT 207-011(# 21). IF RIM HOLES ARE
FLAT USE BOLT 250-073 (# 20) AND LOCK WASHER 255-007 (# 19).

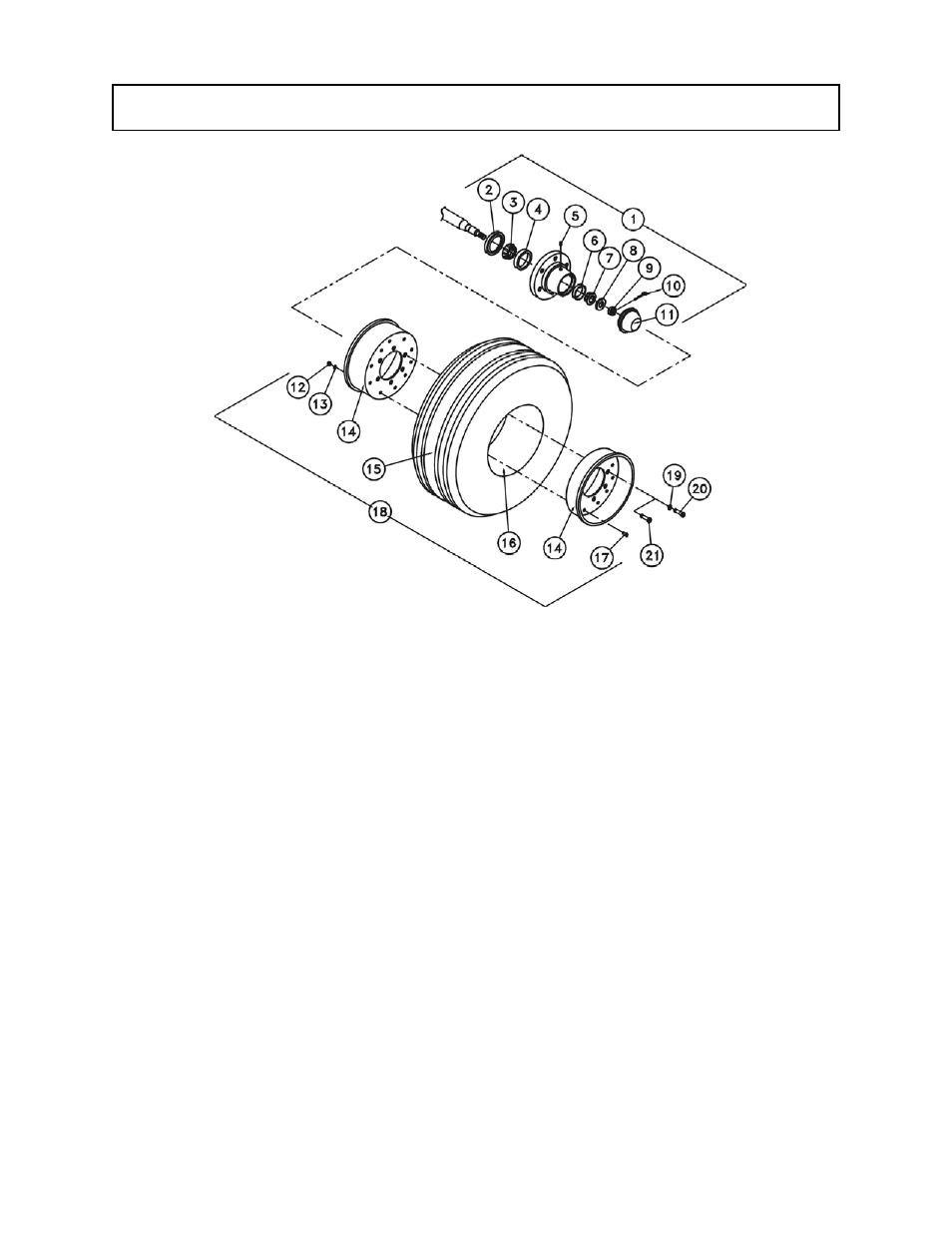

HUB & TIRE ASSEMBLY
