Tiger Mowers FLX10 User Manual
Page 29
FLX15/10 09/05
6-29
Ref.
Part No.
Description
Qty.
1
331-585
Housing
1
2
331-586
Shaft
1
3
331-581
Cover
1
4
331-562
Snap ring
1
5
331-552
Snap ring
2
6
331-587
Shim
A/R
7
331-588
Shim
A/R
8
331-9015
Ball bearing
2
9
331-564
Tapered roller bearing
1
10
331-575
Tapered roller bearing
1
11
331-589
Oil seal
2
12
331-559
Cap
1
13
331-590
Oil plug
1
14
331-561
Oil plug
2
15
331-591
Bevel gear set
1

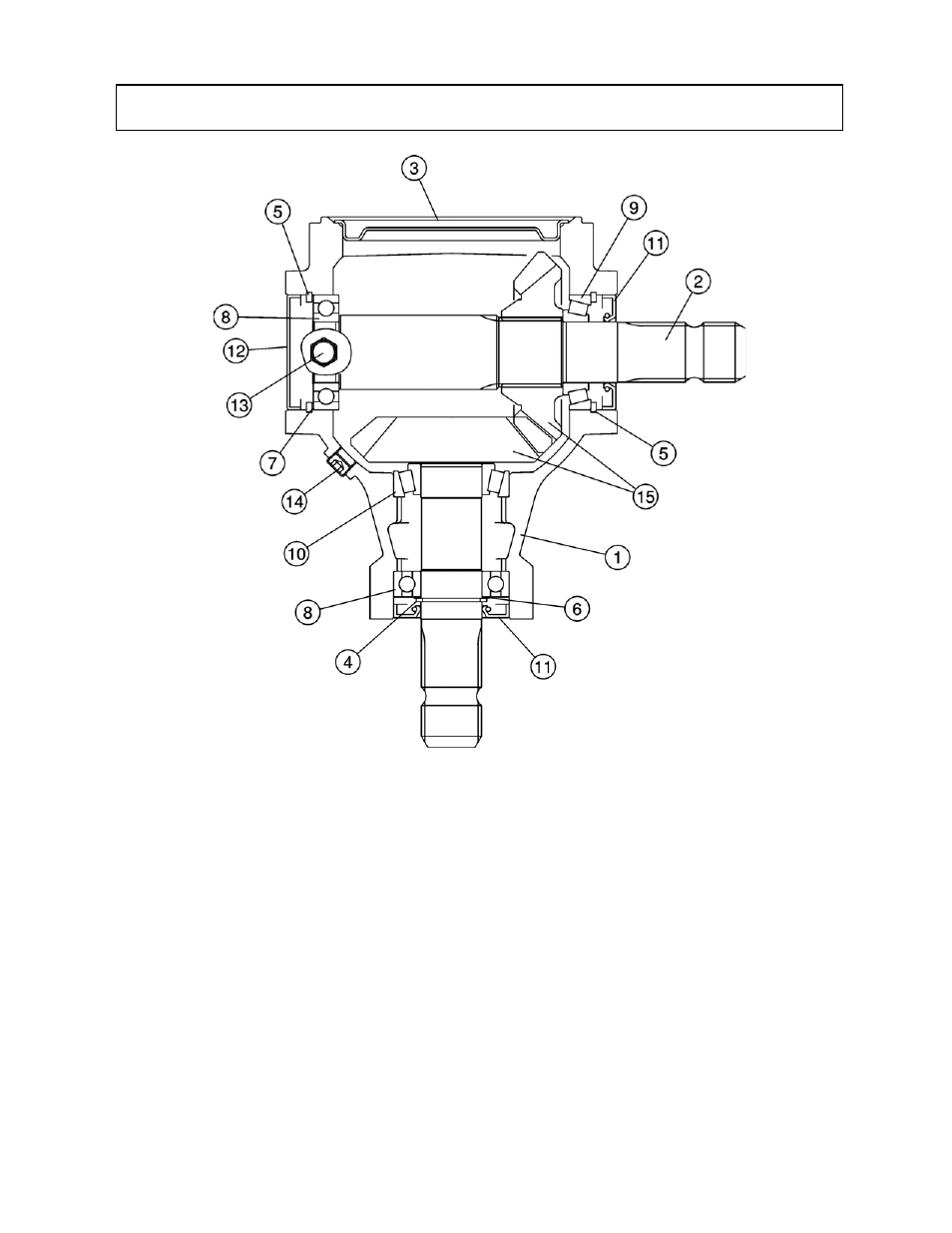

GEARBOX,1:1, BP#S2100100083 (330-556)
