10 CONVENTIONAL OPERATION
The radio functions in the conventional mode when using conventional communications channels (non-
trunked).
10.1 CONTROLS
The radio features two rotary control knobs and an emergency button mounted on the top of the radio
(Figure 10-1). Push-To-Talk and option buttons are mounted on the side (Figure 10-1). The front mounted
keypad has no buttons on the P7230 Select model, six buttons on the P7250 Scan model, and 15 buttons
on the P7270 System Radio.

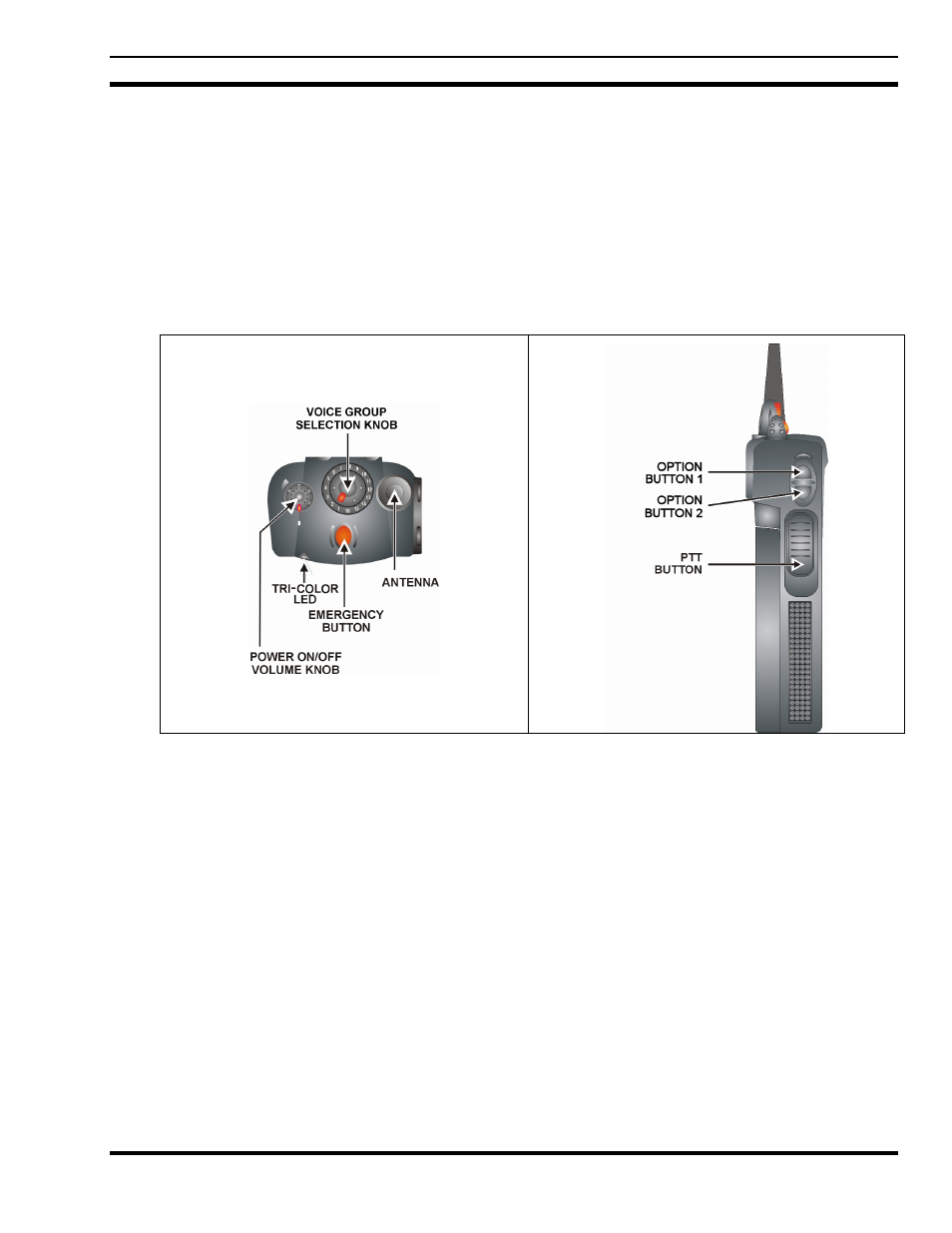

Figure 10-1: Top and Side View
