Alternate cleaning materials can include the
following:
• Foam swabs (never use cotton or any other
fibrous material.)
• 99% pure or better Isopropyl Alcohol for
moistening swabs
• Clean Running Water (Used for Upper
Cleaning Roller only).
Card Path
Elements
The following figure shows the elements in the
card path that require a periodic cleaning. Pro-
cedures follow for the following items:
• Card Guides, Smart Card Contact Station,
and Magnetic Encoder Read-Write heads.
• Card Feed Roller
• Cleaning Rollers
• Print Head
• Transport and Platen Rollers
980179-001 Rev. A
39
Operation
Card Feed
Rollers
Cleaning
Rollers
Head Up/Down
Cam (2 places)
Transport
and Platen
Rollers
Ribbon
Take Up
Card
Path
Module 1
Module 2
Card-Flip
Assembly
Card
Cooling
(P500)
Magnetic
Encoder
(Option)
Smart Card
Station
(Option)
Print Head
Peel Bar
Card-
Flip
Rollers
Laminator (P500) or
Print Station (P600)
Shroud
Card Input Hopper
To Module 2
Card Flip
Card
Catcher
Ribbon
Supply

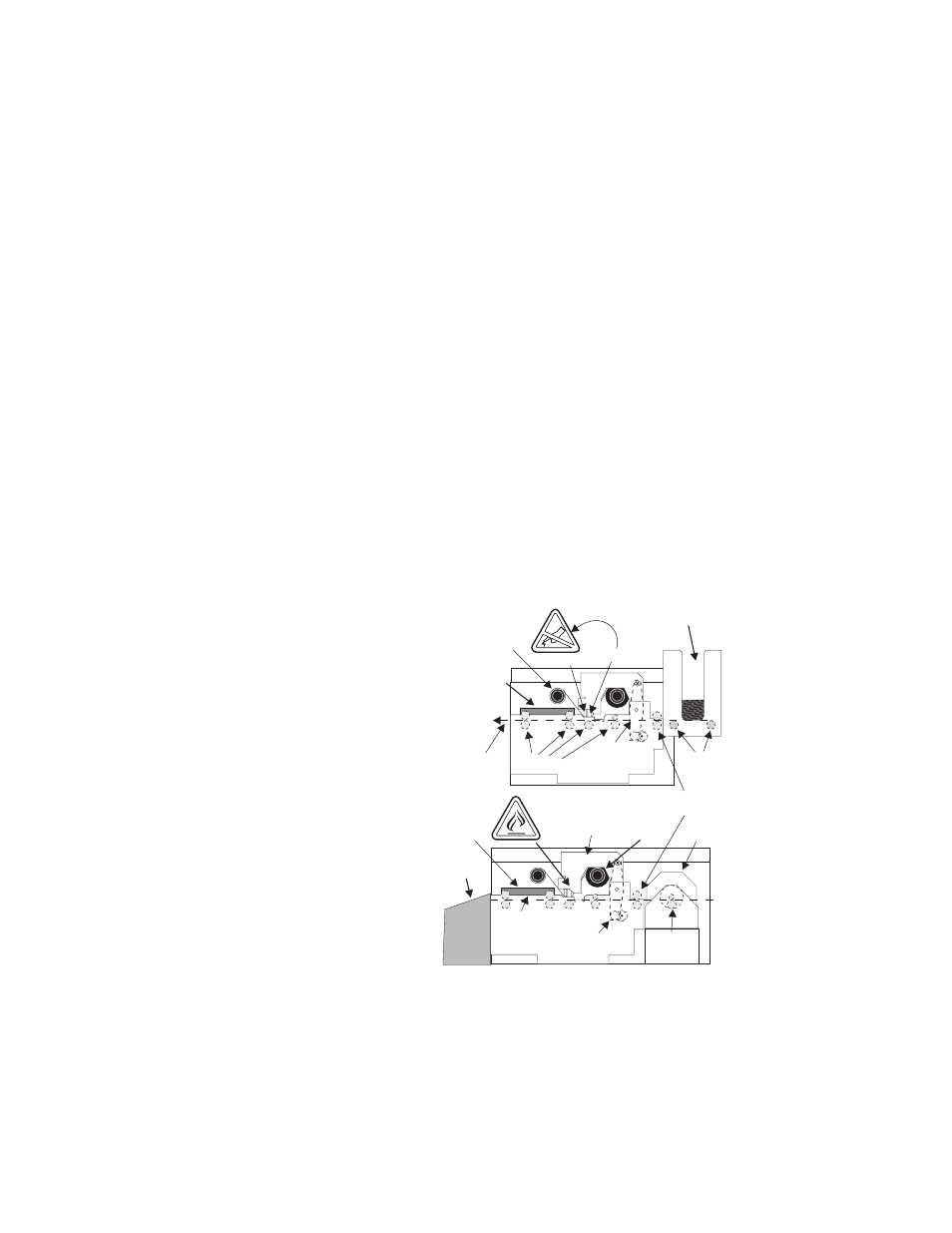

Figure 2-14
Media Path
