Installing the
Memory Board
Step ❶
Plug the Expanded Memory Board into the
two connectors on the upper right section of
the CPU board of Module 1. Match the connec-
tors such that the Expanded Memory board re-
mains confined within the boundaries of the
CPU board, not oriented to extend over the
edge.
Installing the
Memory Board
Step ❷
Replace the bracket and printer case by revers-
ing the steps performed during their removal.
16
980179-001 Rev. A
Getting Started

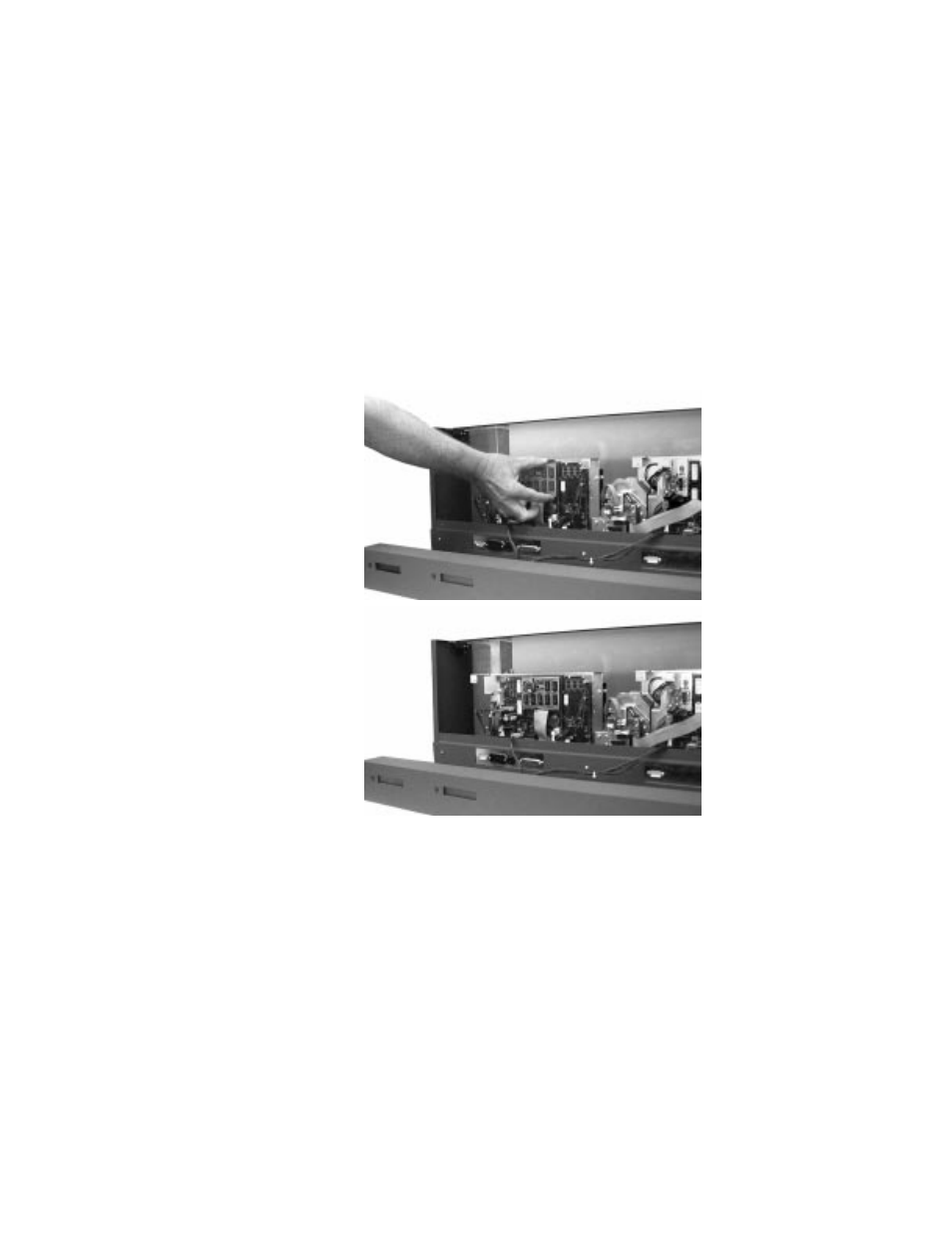

Figure 1-9
Expanded Memory
Installation
