Turbomachinery Package Specification
Taurus
60 Compressor Set and Mechanical Drive

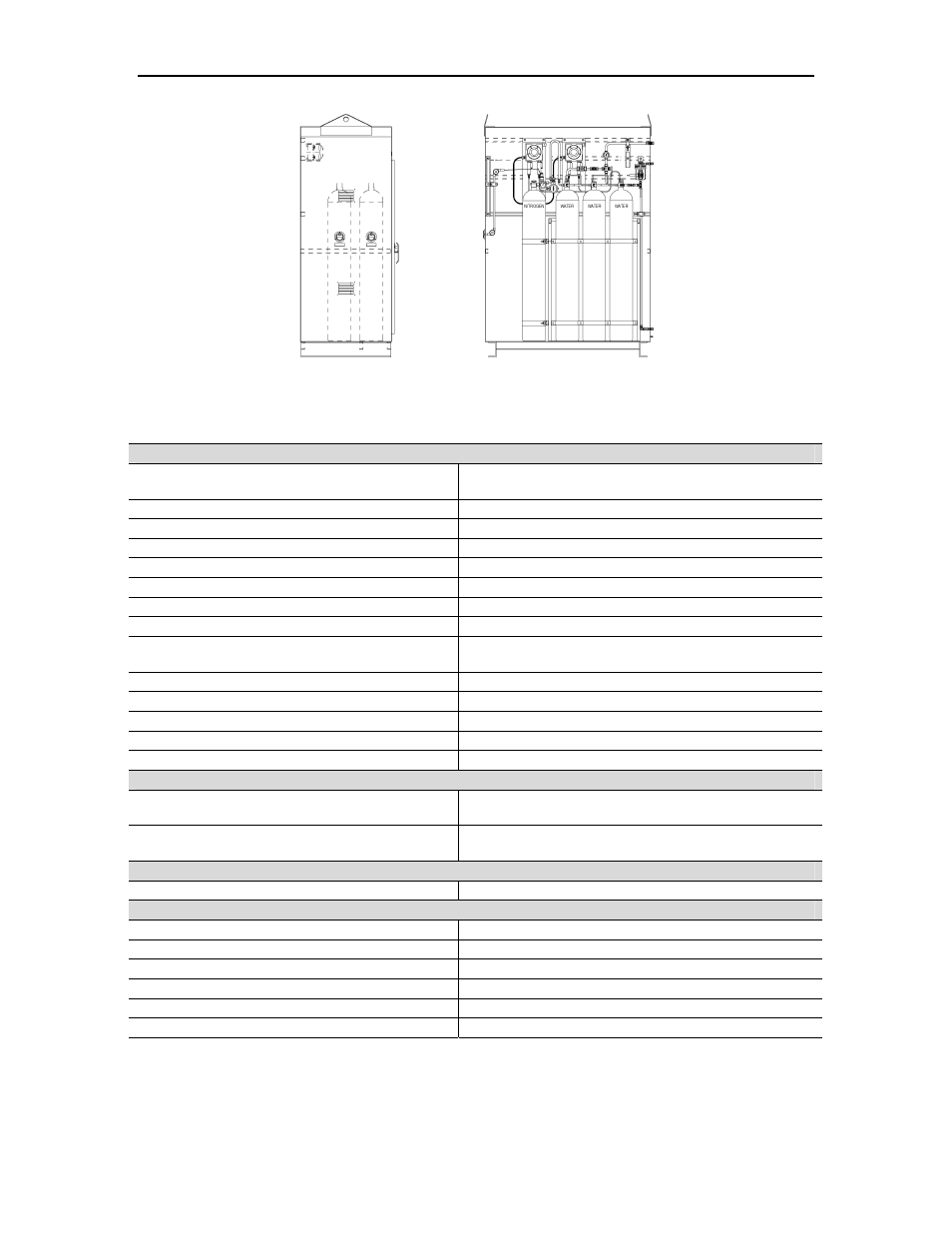

Figure 23. Typical Water Mist Suppression Fire Cylinder Cabinet
Table 11. Enclosure Specifications
Enclosure
Optional Ventilation Fan Motor Voltage Ratings
380 VAC, 400 VAC, and 415 VAC (50 Hz)
460 VAC and 575 VAC (60 Hz)
Primary Enclosure Lighting Voltage
220 VAC (50 Hz) or 110 VAC (60 Hz)
Standby Enclosure Lighting Voltage
120 VDC
Sound Pressure Level
See Note (a)
Enclosure Roof Load
244 kg/m
2
(50 lb/ft
2
)
Enclosure Wind Load
193 kph (120 mph)
Approximate Measurements
Height
2.6 m (8 ft 6 in.), Does Not Include Ventilation Ducting
Width
6.4 m (21 ft), With Enclosure Doors Open and Engine
Removal Hoist Attached
Driver Length
6.1 m (20 ft)
Driven Length (Single Body Compressor)
4 m (13 ft)
Approximate Weights
Gas Turbine Enclosure
3054 kg (6750 lb)
Compressor Enclosure (Single Body)
1656 kg (3660 lb)
Fire Suppression System Compliance
CO
2
Fire Suppression System
U.S. National Fire Protection Association (NFPA) 12
United States Coast Guard (USCG) CFR 46
Water Mist Fire Suppression System
U.S. NFPA Code 750
USCG CFR 46
Water Mist Fire Suppression System
Minimum Operating Temperature
4°C (40°F), Optional Heater Available
CO
2
Fire Cylinder Cabinets
Fire Cylinder Cabinet, Main
Height
213 cm (84 in.)
Width
152 cm (60 in.)
Depth
53 cm (21 in.)
Approximate Cabinet Weight
429 kg (946 lb), Without Cylinders
Approximate Cylinder Weight
45 kg (100 lb)
© 2009 Solar Turbines Incorporated. All rights reserved.
TPS60CSMD/309
