Turbomachinery Package Specification

Taurus

60 Compressor Set and Mechanical Drive

fire, control system failure, emergency stop, or if a turbine over speed is detected by the
backup system.

9.1.5

Duplex Lube Oil Filter System

The duplex lube oil filter system is supplied with a filter transfer valve and filter differential
pressure indication with alarm. The transfer valve allows a filter transfer to be performed
while the gas turbine is running. The lube oil filter system is contained completely within
the skid. The interconnect piping between the skid edge and the offskid oil cooler, if
applicable, is not provided.

9.1.6

Lube Oil Vent Coalescer

An offskid lube oil vent coalescer is provided to remove oil vapor from the lube oil tank
vent airflow. The coalescer drains trapped oil vapor back to the lube oil tank and allows
the remaining vent airflow to exhaust to the atmosphere. A tank overpressure alarm and
shutdown are also included. The lube oil vent coalescer is loose shipped for offskid
installation by others.

DUPLEX

LUBE OIL

FILTER

SYSTEM

TPD

LUBE OIL

COOLER

COOLER

TEMPERATURE

CONTROL VALVE

ENGINE
DRIVEN

MAIN LUBE

OIL PUMP

PRE/POST

LUBE OIL

PUMP

BACKUP

LUBE OIL

PUMP

COMPRESSOR

COUPLING

GEARBOX

FG

FG

FG

FG

RT

RT

THRUST

BEARING

TP

RT

FLAME

ARRESTER

VENT

DEMISTER

PT

TL

OIL TANK

RT

RT

RT

LUBE OIL

TANK

HEATER

LEGEND

TPD

TRANSMITTER, DIFFERENTIAL PRESSURE

FG

FLOW GAUGE (SIGHT GLASS)

TL

TRANSMITTER, LEVEL

RT

RESISTANCE TEMPERATURE DEVICE (RTD)

TP

TRANSMITTER, PRESSURE

FILTER

RT

COUPLING

GAS PRODUCER

(IF APPLICABLE)

FG

RT

FG

RT

RT

POWER TURBINE

FG

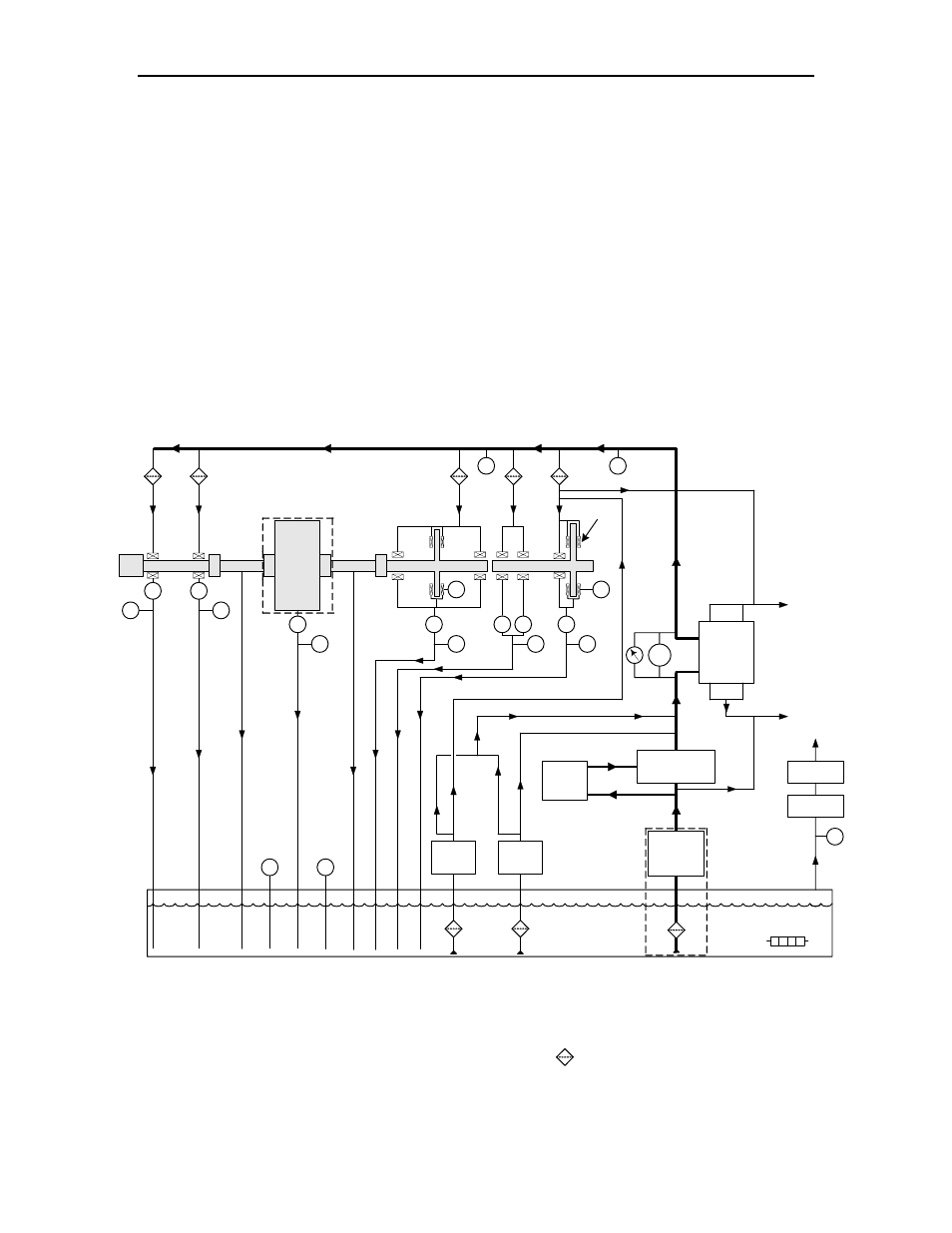

Figure 13. Typical Lube Oil System

© 2009 Solar Turbines Incorporated. All rights reserved.

TPS60CSMD/309

30
